Application:
Suitable for automatic counting and packing machine for fasteners, hinges, screws, nails, bolts, nuts, gaskets, bearings, glass parts, plastic parts, furniture accessories, toy accessories, blind nuts, gaskets, hardware, and plastic parts, etc.
Kindly Reminder:
We have an experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.
Packing Exambers:

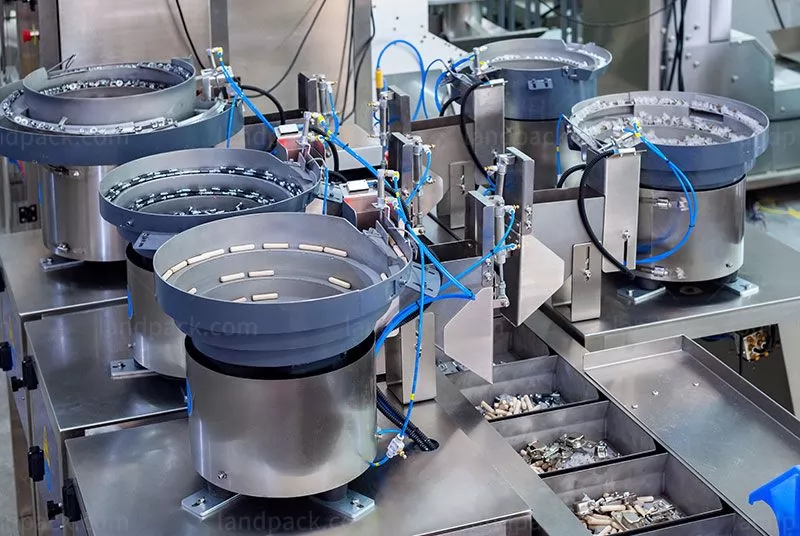

1. Each counting bowl counts for different fasteners automatically with high accuracy.
2. The machine is controlled by the PLC system and touch screen, the worker could change the target amount on the touch screen directly.
3. The machine has a support platform for the worker to put the fasteners into the chain. It is a very flexible machine to support business development.
4. No material No working. The machine would aim to remind the worker to feed the material on the machines.
Workflow:
1. Counting bowls count the fasteners
2. The worker put the material on the chain
3. The chain container brings the fasteners to pack
4. Form the bag by roll film
5. Output the finished packages
Model | LD-420 | LD-520 | LD-720 | LD-900 |
Film width | Max.420mm | Max.520mm | Max.720mm | Max.900mm |
Bag length | 80-300mm | 80-350mm | 100-500mm | 100-600mm |
Bag width | 60-200mm | 100-250mm | 180-350mm | 260-430mm |
Film roll diameter | Max.320mm | Max.320mm | Max.320mm | 400mm |
Packaging rate | 5-60 bags/min | 5-60 bags/min | 5-55 bags/min | 5-20 bags/min |
Range of measurement | 150-1500ml | 2000ml | 4000ml | 1-25L |
Film thickness | 0.04-0.08mm | 0.04-0.12mm | 0.04-0.12mm | 0.04-0.12mm |
Power | 220V, 50/60Hz, 2kw | 220V, 50/60Hz, 3kw | 220V, 50/60Hz, 3kw | 220V, 50/60Hz, 4.5kw |
Machine size(L*W*H) | 1217*1015*1343mm | 1488*1080*1490mm | 1780*1350*2050mm | 2305*1685*2725mm |
Machine quality | About 650kg | About 680kg | About 750kg |
After receiving your inquiry,We will send you the quotation as soon as possible.
