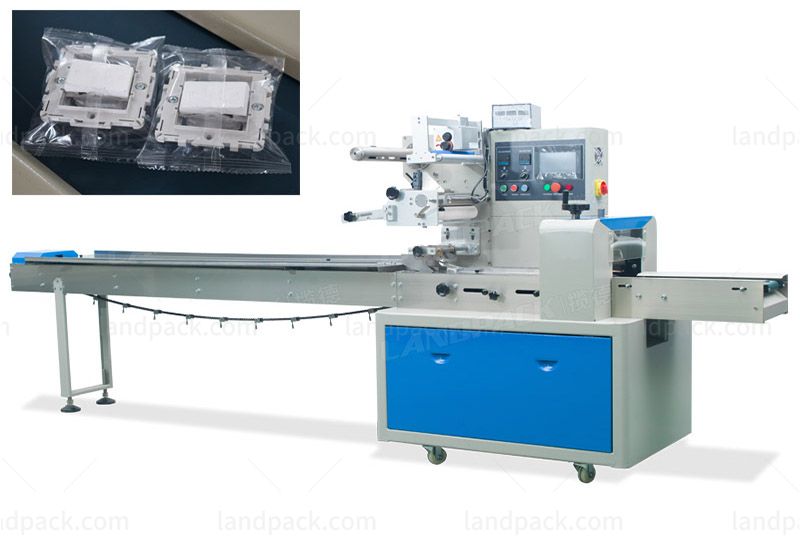

Automatic Switch/ Hardware Accessories Packing Machine

  • Application
  • Description
  • Parameter
  • Video

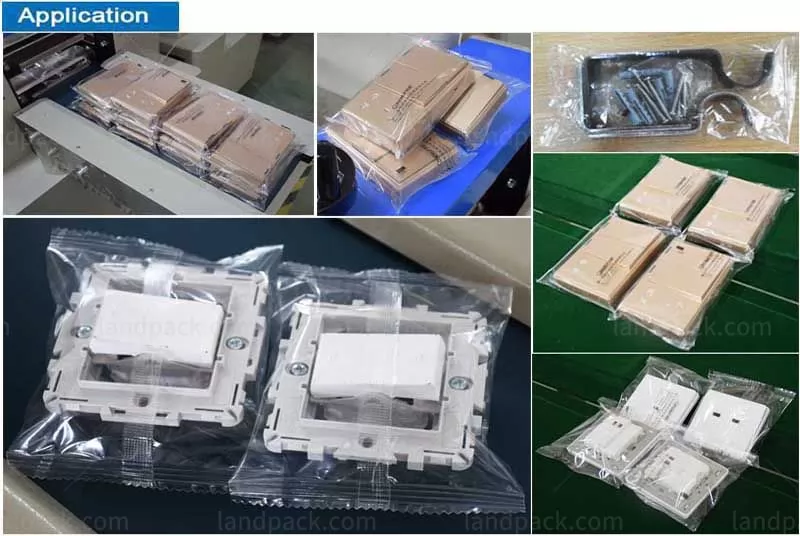

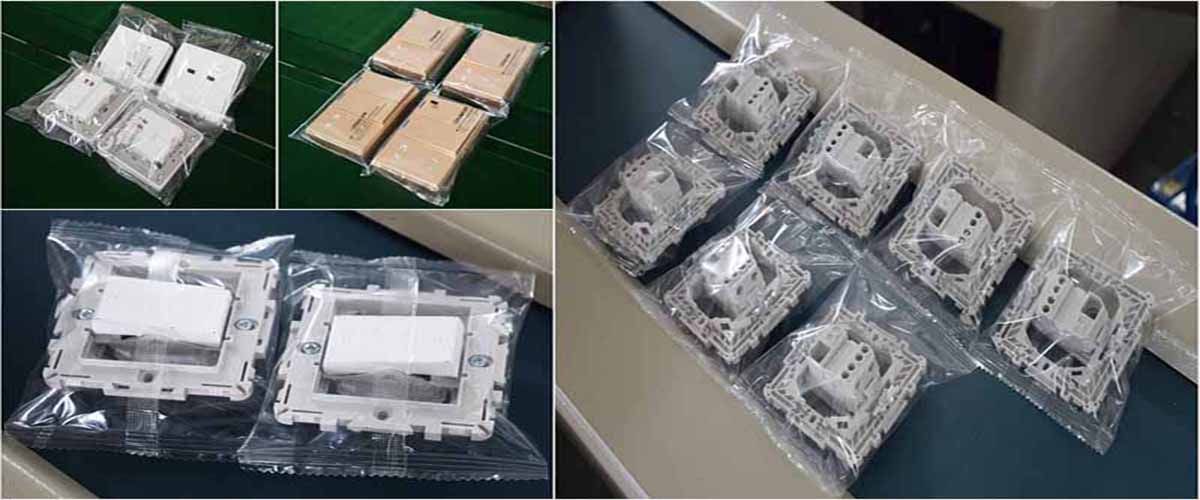

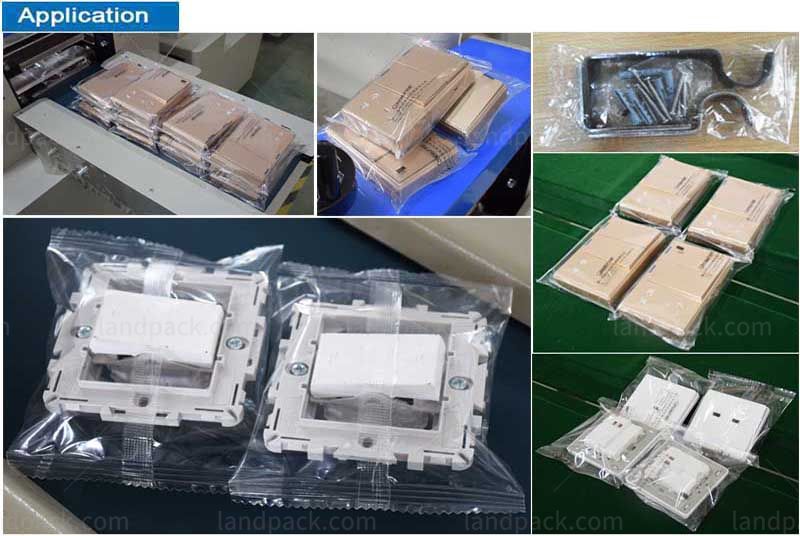

Suitable for pack various kinds of regular objects into pillow bag or gusseted bag. the object like metal parts, industrial parts, hardware accessories, toys and other conventional items.

Kindly Reminder:

We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.

Packing Exambers:Automatic Switch/ Hardware Accessories Packing Machine

Dual frequency conversion control, bag length can be setted and cutting in one step,saving time and films.

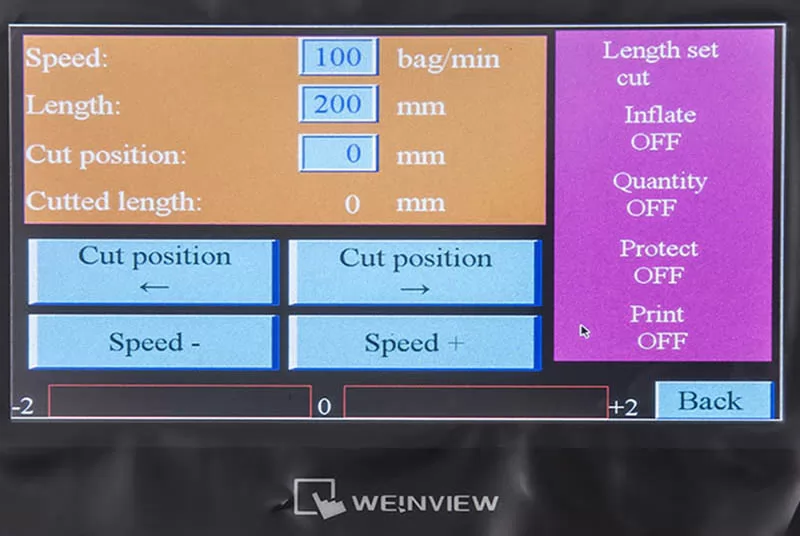

Interface features are easy and quick setting and operating.

Self diagnosis failure function, clear failure display.

High sensitivity photoelectric eye color tracing,numerical input of cutting sealing position for extra accuracy.

Temperature independent PID control, more suitable for packing different materials.

Positioned stop function,without sticking knife or wasting film.

Simple driving system,reliable working,convenient maintenance.

All control is realized through software,easy for function adjusting and technical urgrade.

Film WidthMax.250mmMax.250mm
Bag Length65-280mm90-220mm50-115mm45-90mm65-280mm90-330mm
Bag Width30-110mm30-110mm30-80mm30-80mm50-160mm50-160mm
Products HighMax.40mmMax.55mmMax.35mmMax.35mmMax.40mmMax.55mm
Film Roll DiameterMax.320mmMax.320mmMax.320mmMax.320mmMax.320mmMax.320mm
Packing Speed40-230bag/min40-230bag/min60-330bag/min60-330bag/min40-230bag/min40-230bag/min
Power220V 50/60Hz2.4KW220V 50/60Hz2.4KW220V 50/60Hz2.4KW220V 50/60Hz2.4KW220V 50/60Hz2.6KW220V 50/60Hz2.6KW
Machine Size(L*W*H)mm3770*680*14203770*680*14203770*680*14203770*680*14203770*720*14203770*720*1420
Machine WeightAbout 500kgAbout 500kgAbout 500kgAbout 500kgAbout 550kgAbout 550kg

After receiving your inquiry,We will send you the quotation as soon as possible.
