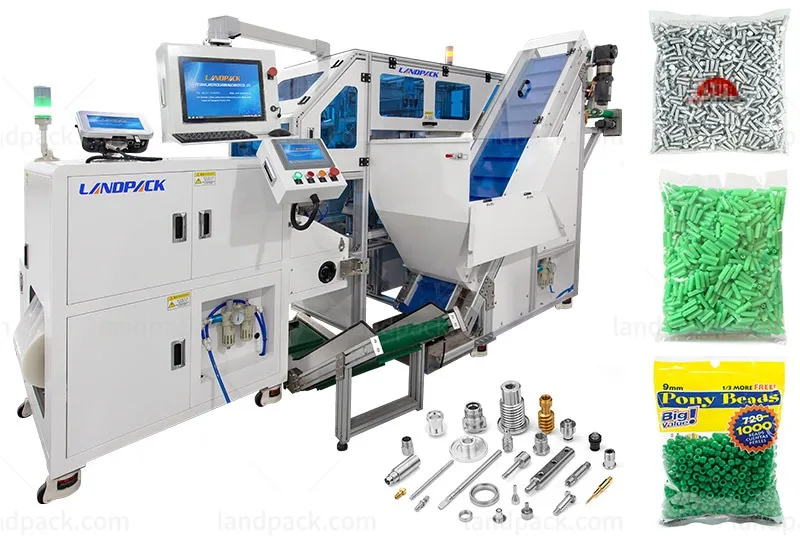

High Speed Fastener Hardware Parts Visual Counting Packing Machine with Coding System

Application:
This automatic counting packing machine counts and packs screws, nuts, bolts, washers, rubber O-rings, silicone parts, plastic fittings, clips, and other small components. The CCD vision system identifies each piece and controls the quantity before bagging. With suitable product-contact parts, the machine can also handle individually countable food products such as candies and small snacks.

Package Type:
The counting packing machine makes bags from heat-sealable tubular film. It seals the top and bottom of each pack and supports vent holes for air exhaust. The thermal transfer printer can add logos, production dates, batch numbers, barcodes, and QR codes to the film.

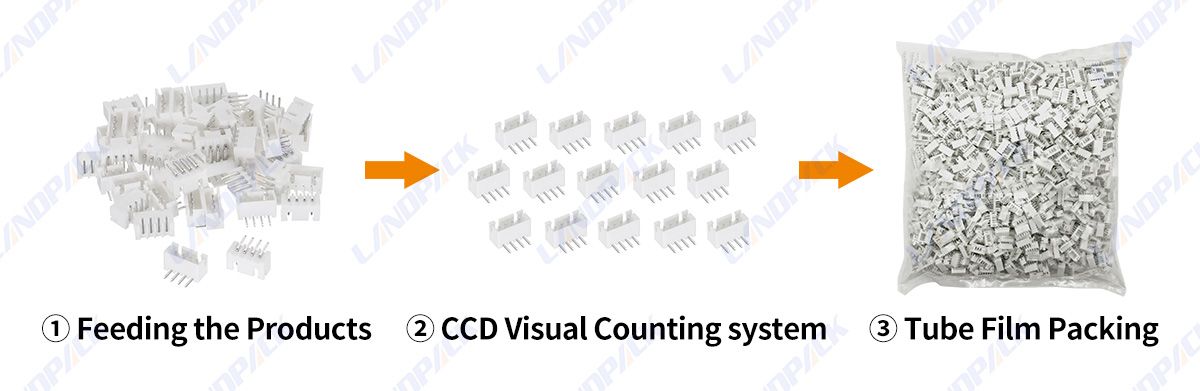

Workflow:

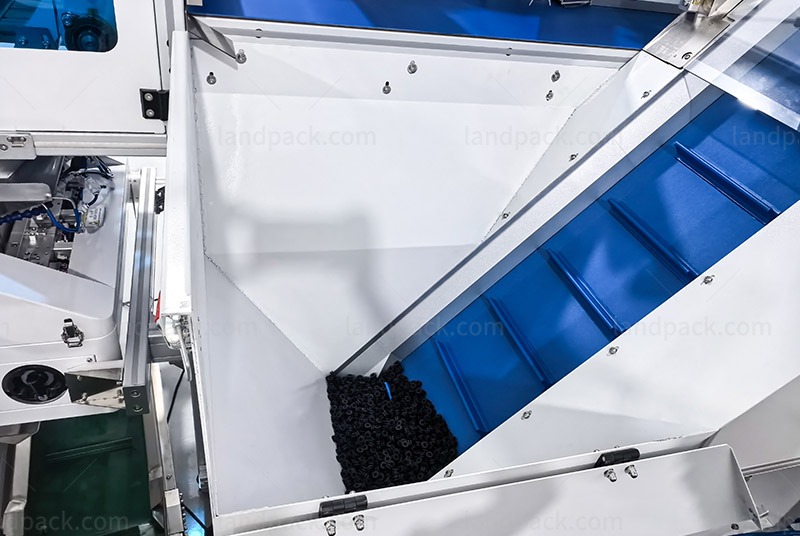

1. Automatic Product Feeding, 2. Servo Belt Separation, 3. CCD Visual Counting, 4. Material Collection, 5. Tubular Film Feeding, 6. Thermal Transfer Printing, 7. Vent Hole Punching, 8. Product Filling, 9. Top and Bottom Sealing, 10. Finished Bag Output

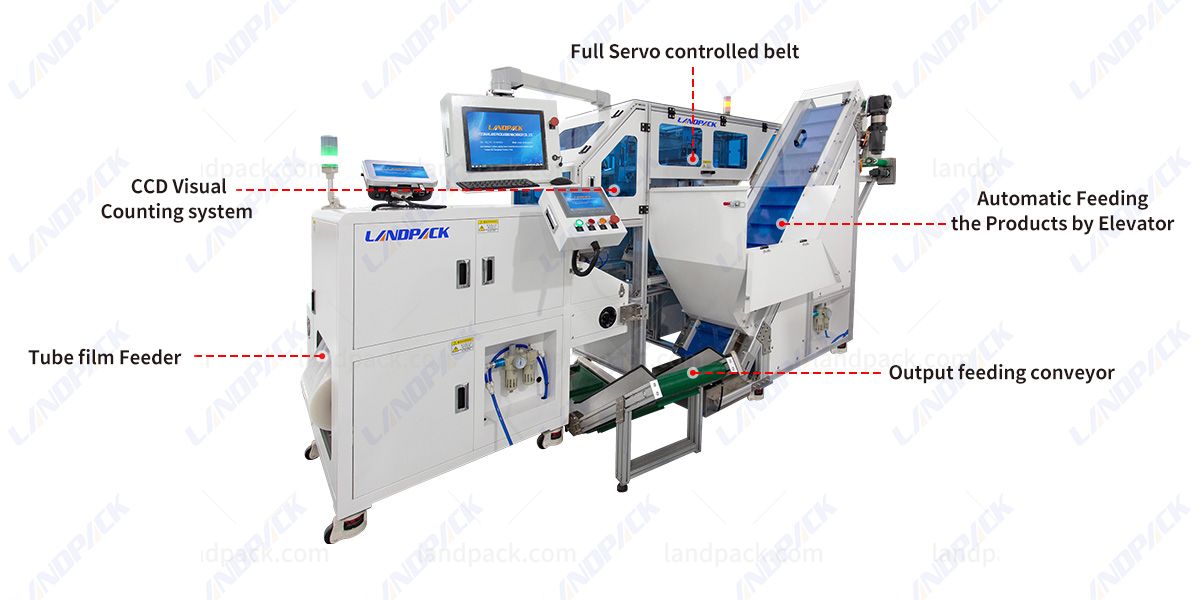

Machine Structure Overview:

Feature:

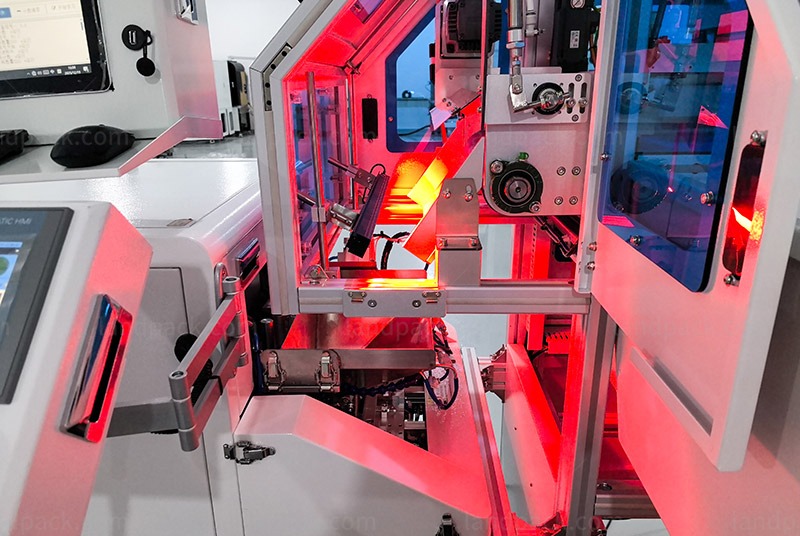

1. CCD vision system counts fasteners, rubber rings, and irregular small parts

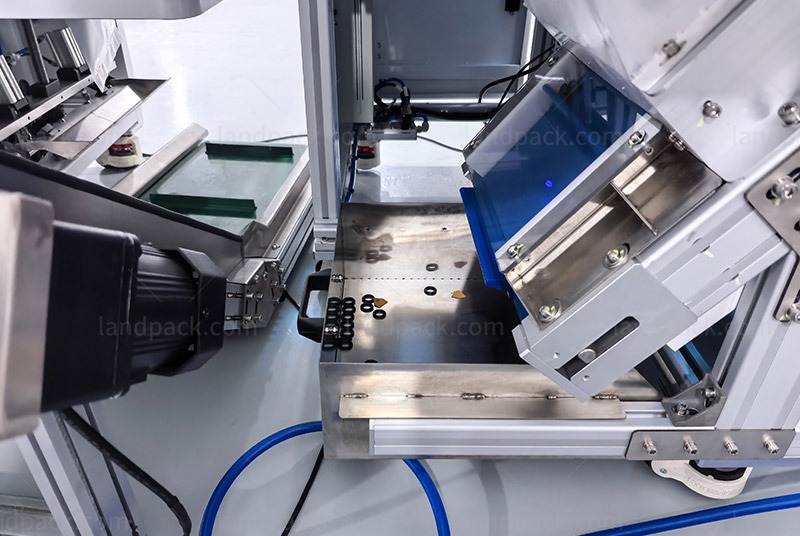

2. Full-servo feeding belts adjust product spacing during counting
3. Adjustable belt positions handle products with different heights and widths
4. HMI controls counting quantity, belt speed, and packing settings
5. Customized exterior cover gives the equipment a more finished industrial appearance
6. PLC and touchscreen control the tubular-film packing section
7. Videojet thermal transfer printer adds logos, dates, barcodes, and QR codes
8. Vent-hole device releases trapped air from the finished bag
9. Automatic top and bottom sealing closes each tubular-film package
10. Receiving bin collects excess or returned products from the counting section
11. Conveyor transfers finished packs to collection or secondary packaging
12. The hardware counting packing machine handles product feeding, visual counting, coding, bagging, sealing, and output in one line
