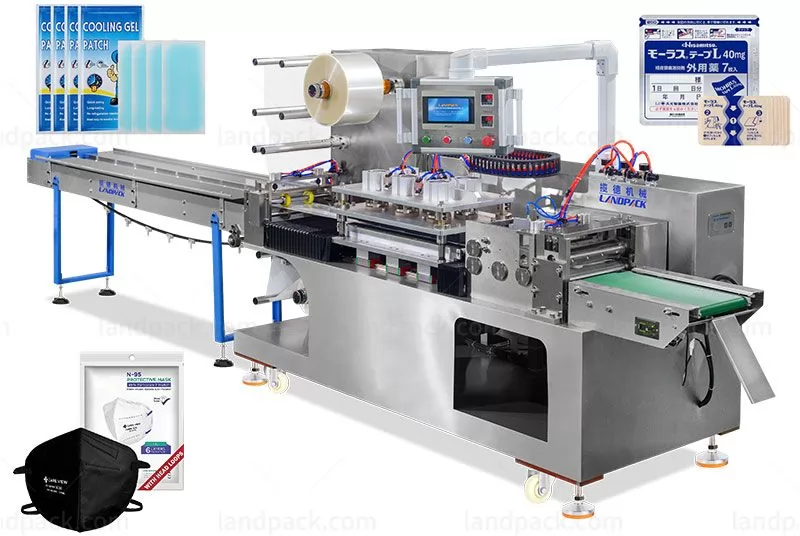

Automatic Four Side Sealing Packing Machine For Medical Dressing, Patch, Plaster Etc.

  • Application
  • Description
  • Parameter
  • Video


This machine can be applied to sheet products that require sealing on four sides, such as the following products:

1. Masks products: surgical mask, kn94 mask, medical masks, disposable masks;

2. Daily necessities: cards, wet wipes, alcohol wipes, mobile phone stickers, mobile phone cases, hardware, small plastic parts, craft gifts, sheets, toys, stickers, non-woven fabrics, cotton pads;

3. Medical supplies: plaster paste, analgesic paste, analgesic paste, gauze, medical paste, antipyretic paste, belly button paste, moxibustion paste, early pregnancy test paper, cooling paste, Gutong paste, alcohol cotton pad, motion sickness paste, artificial Breathe;

4. Health care: slimming patch, foot patch, eye patch, foot warming patch, heating patch, warm patch, palace warm patch, baby warmer, happy patch, fast heat patch, warm pack, foot warmer, warm bag, activated carbon self Fever-shaped bags;

Kindly Reminder:
We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.

Packing Exambers:Automatic Four Side Sealing Packing Machine For Medical Dressing, Patch, Plaster Etc.


1. Touch screen control operation is simple.

2. Reciprocating heat sealing, the standard size plaster one time can be heat sealed 10 bags, sealing flat, firm and beautiful.

3. Packaging film tape joint automatic detection and rejection.

4. Hot code machine missing printing automatic detection and rejection.

5. Missing blister automatic detection and rejection.

6. Package film used out alarm and shutdown.

7. Suitable for a variety of specifications plaster can be equipped with 1-5 piece automatic feeding.

8. Ethernet Remote control. Can modify the program.

Working Process

1. Automatically connect with the production machine

2. Tail to deliver the mask

3. Mold forming,the bag is more beautiful and fancy

4. Speed: 100-120 bags/min

5. Automatic trimming →  Cold cut →  Output belt

Film width
Bag length
Bag width
Product packaging thickness1-10mm
Machine noise
Under 80db(A)
Packing material
ET+OPP, BOPP, CPP, PET+AL, and other one layer or double layer heated complex film.
Packing speed
80-100 bags/min
Machine sizeL5000*W1200*H1520mm
Machine Gross WeightAbout 1600kg
Power voltageAC220V 50HZ
Transmission Power4.2kw
Heating Power3.2kw
Air Pressure0.5-0.7Mpa
Suitable for pillow packing of conventional items such as hardware accessories parts, soap, bread, pancake, biscuit, cake, rusk, bun, etc.
