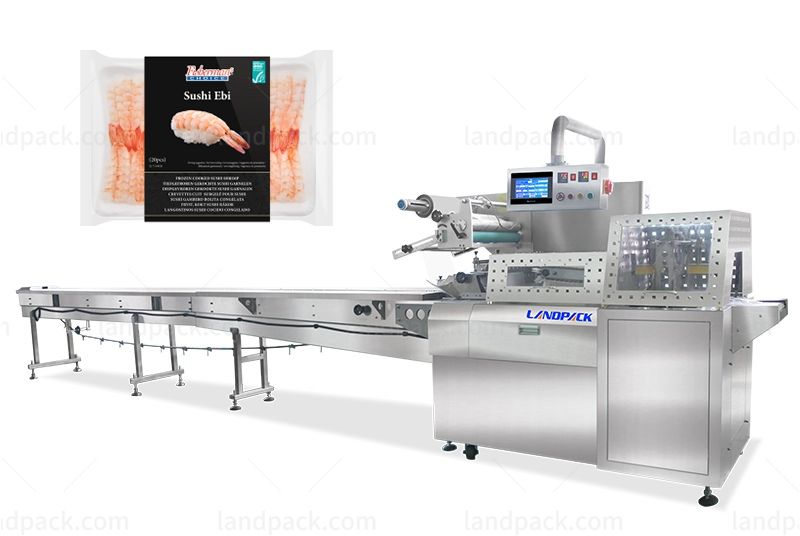

Automatic Flow Wrapping Machine For Frozen Meat/ Fish/ Seafood Etc

  • Application
  • Description
  • Parameter
  • Video

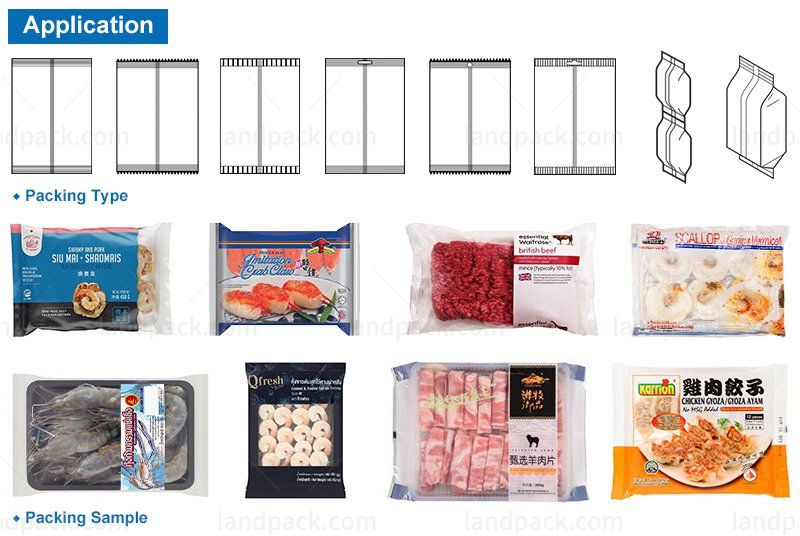

Application:

Suitable for packing regular objects such as frozen meat, frozen fish, frozen seafood, biscuits, bread, instant noodles, drugs, daily appliances, industrials parts, paper boxes, plates, vegetable, fruit, etc.

Kindly Reminder:

We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.

Packing Exambers:Automatic Flow Wrapping Machine For Frozen Meat/ Fish/ Seafood Etc

Three servo motor control, Bag length can be set and cut in one step,saving time and film.

 Interface features easy and quick setting and operation

 Self failure diagnosis, clear failure display

 High sensitivity photoelectric eye color tracing, numerical input of cutting sealing position for extra accuracy.

 Temperature independent PID control, more suitable for packaging different materials

 Positioned stop function, without sticking knife or wasting film.

 Simple driving system, reliable working, convenient maintenance.

 All control is realized through software,easy for function adjusting and technical upgrade.

TypeLP-450WLP-600W
Film widthMax.450mmMax.600mm
Bag length120-450mm120-450mm
Bag width50-160mm50-200mm
Product height10-80mm10-80mm
Film roll diameterMax.320mmMax.320mm
Packaging rate20-80 bag/min20-80 bag/min
Power220V 50/60Hz,3.2kw220V 50/60Hz 3.6kw
Machine size(L)4380*(W)870*(H)1500mm(L)3990*(W)970*(H)1500mm
Machine quality960kg1160kg
RemarksReciprocation end sealing system, with angle folding device
Film materialOPP、PE、PVC、OPP/CPP、PT/PE、KOP/ CPP/ Aluminum Coating Film/ Aluminum Film

After receiving your inquiry,We will send you the quotation as soon as possible.
