Full Automatic Honey Jar Bottle Filling Machine

  • Application
  • Description
  • Parameter
  • Video


It is widely used in the flling of various semi-fluids, pastes, viscous bodies, sauces ,such as pulp-containing beverages, honey, jams, ketchup, chili sauce, salad dressing, etc.

Packaging Material:

Glass, Metal, Paper, Plastic, Wood, Other

Kindly Reminder:

We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.

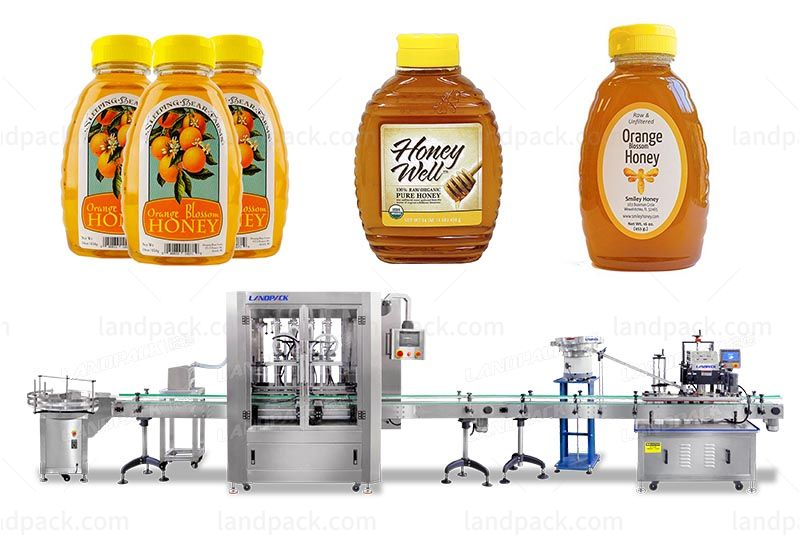

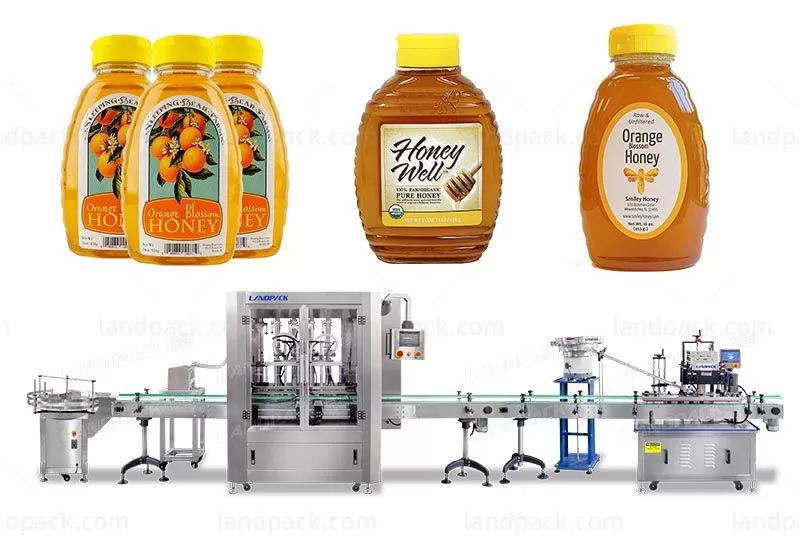

Packaging Exambers:Full Automatic Honey Jar Bottle Filling Machine Line

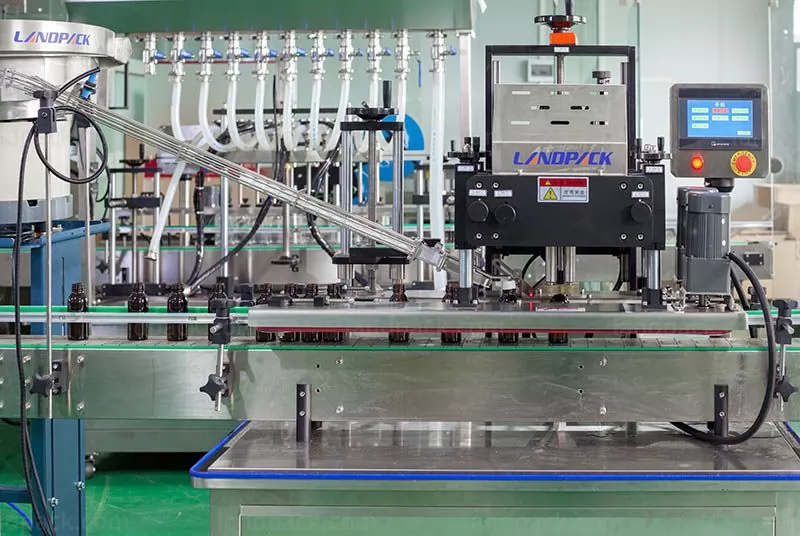

1. Machine has nice appearance and reasonable structure, it's currently the most advanced new design sauce filling machine, machine can be customized with 4/6/8/12/etc filling heads according to customer's production capacity.

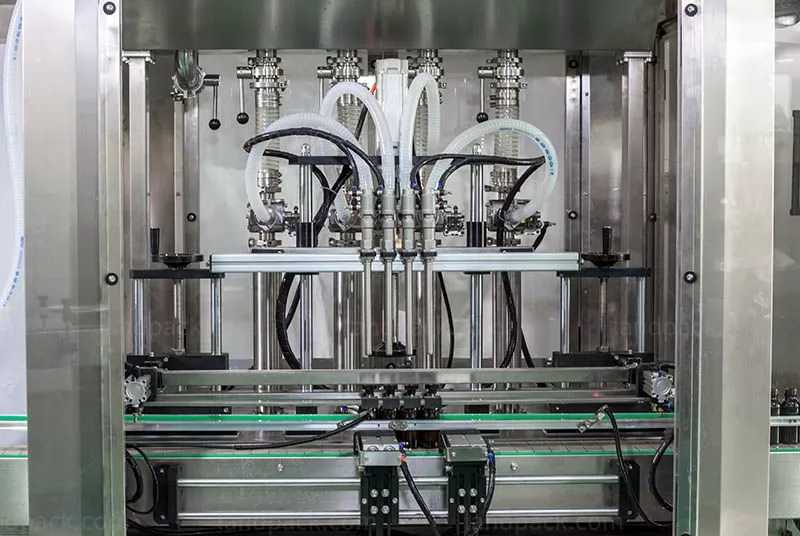

2. Adopts positive displacement plunger pump for filling (when the filling volume difference is large, the corresponding pump body needs to be replaced), can do overall adjustment of all the pumps, can also do slight adjustment of a single pump, quick and convenient.

3. PLC control system, color touch screen display, filling volume can be adjusted directly on touch screen , easy to operate.

4. The machine comes with heating and stirring system, so that make the product more uniform, better mobility, easy to fill

5. Has function of no bottle no fillig, frequency control, automatic counting.

6. Machine shell is made of 304 stainless steel, meets GMP standard.

Model Name
Filling Nozzle68
Production Speed 20-35Bpm30-40Bpm40-50Bpm
Filling Accuracy200ml: +/-1%, 200-5000ml: +/-0.5%
Filling Range50-5000ml
Power Supply (without heating)1Kw2kw2.5kw
Power Supply220V/380v 50hz Three phase
Air Pressure0.6-0.8Mpa
Applicable Bottle ShapeRound, Flat, Oval, Irregular, Square, Jar, Can, etc.
Bottle MaterialHDPE, Aluminum, Plastic, Glass, etc.
Dimension (mm)4000*1320*20904000*1320*20904000*1320*2090
