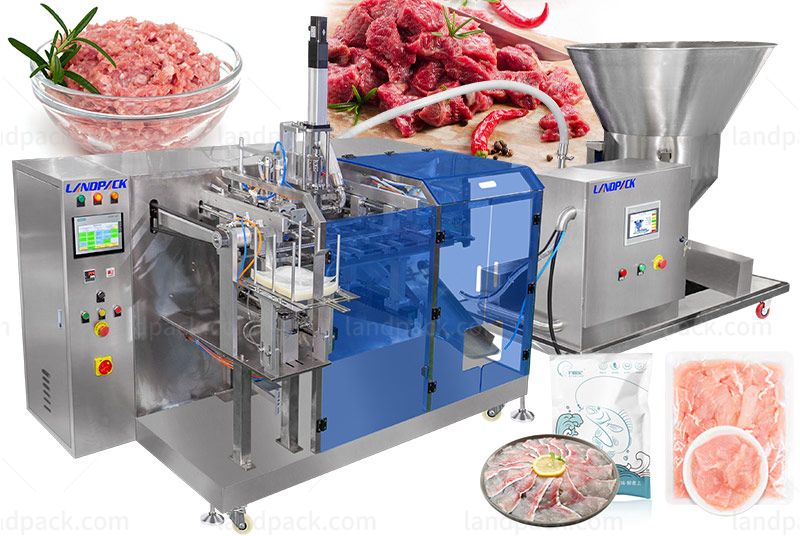

Automatic Minced Meat Meat Slice Fishes Thick Liquid Packing Machine With Servo Rotor Pump Filling System

  • Application
  • Description
  • Parameter
  • Video

Application:
* Block material: bean curd cake, fish, eggs, candy, red jujube, cereal, chocolate, biscuit, peanut, etc.

* Minced meat, meat slice, fishes, thick liquid, beans butter

* Granular type: crystal monosodium glutamate, granular drug, capsule, seeds, chemicals, sugar, chicken essence, melon seeds, nut, pesticide, fertilizer, etc.

* Powder type: milk powder, glucose, monosodium glutamate, seasoning, washing powder, chemical materials, fine white sugar, pesticide, fertilizer, etc.

* Liquid/paste type: detergent, rice wine, soy sauce, rice vinegar, fruit juice, beverage, tomato sauce, peanut butter, jam, chili sauce, bean paste, etc.

* Class of pickles, pickled cabbage, kimchi, pickled cabbage, radish, etc.

Kindly Reminder:
We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.

Packing Exambers:    Automatic Minced Meat Meat Slice Fishes Thick Liquid Packing Machine With Servo Rotor Pump Filling System

1.Rapidly change bag specification in one-click automatic adjustment.

2.Single shaft and the CAM design, faster packing speed, more stable operation, easier maintenance and defective rate reducing.

3.Modular heating,temperature control is more accurate,heating fault has alarm prompt.

4.Advanced design idea , reduce the material loss , ensure the stability of operation, extend the operating life.

5.Simple and convenient operation , adopt the advanced PLC + POD (touchscreen) electric control system and man-machine interface.

6. Rotary feeding, compatible with irregular products and different sizes.

7. Intubated vacuum packaging, packaging integrity is high, good sealing.

8. This machine adopts the servo rotor pump filling system, which is suitable for the packaging of stuffing and viscous sauce.


The Main Technical Parameters
Model
LDSP-160A
Packing material
3-side, four edge-sealing bag, self-reliance bag, handbag, spout bags, zipper bag, compound bag, etc
size
W:80-160 mm
Filling range
20-500g
Packing speed
10-45 bag/min(speed is determined by the product filling quantity)
Average precision
≤ ±1%
Total power
2.5KW
Weight
800 KG
Main standard parts
1. Code printer 2. PLC control system 3.Bag opening device 4. Vibration device 5.Cylinder 6. Electromagnetic valve 7. Temperature
controller 8.Vacuum pump 9. Inverter 10. Output system
We can customize the suitable one for you according to your requiredment.
Just Tell us : Weight or Bag Size required.


Parts of Machine
Parts
PLC
Touch Screen
Frequency Conveter
Vacuum Pump
Printer
Main Motor
emperature Controllor
Brand
SIEMENS
SIEMENS
TOSHIBA
ORION
SHENG LONG
EVERGEAR
AISET
Oringin
Germany
Germany
Japan
Japan
China
China
China
Can replace parts as needed
Work Process
Safety Measures
1.no bag feeding, no filling and no sealing.
2.no bag opening/open error, no filling and no sealing
3.no filling, no sealing
Product
Process

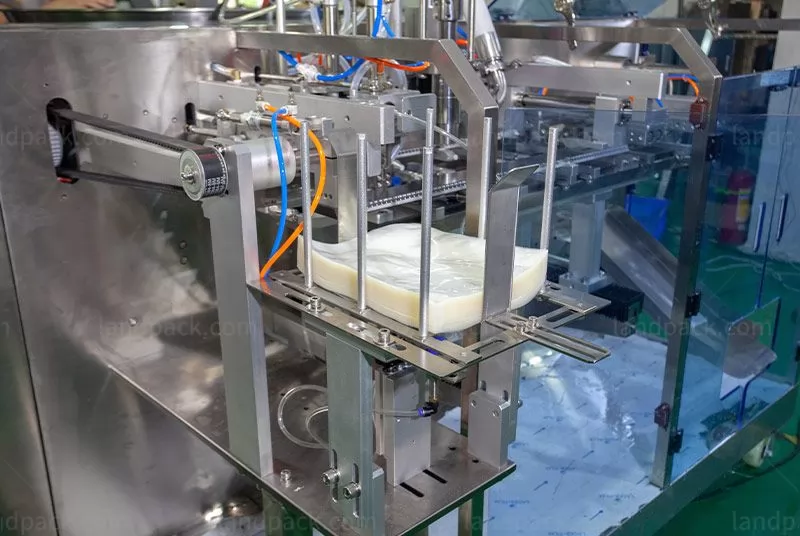

Station 1 Bag Feeding
Station 2 Date Printing (option)and Open zipper bag
Station 3 Open bag
Station 4 Filling Materials
Station 5,6,7 :Vibration,Air Removal,Nitrogen Filling,Close Zipper,Hole Punching,Heat Sealing
Remark:No.5.6.7.Stations are based on customer requirements for adjusting.
Station 8 Heat Sealing and Product Output
Stations are based on customer requirements for adjusting.
