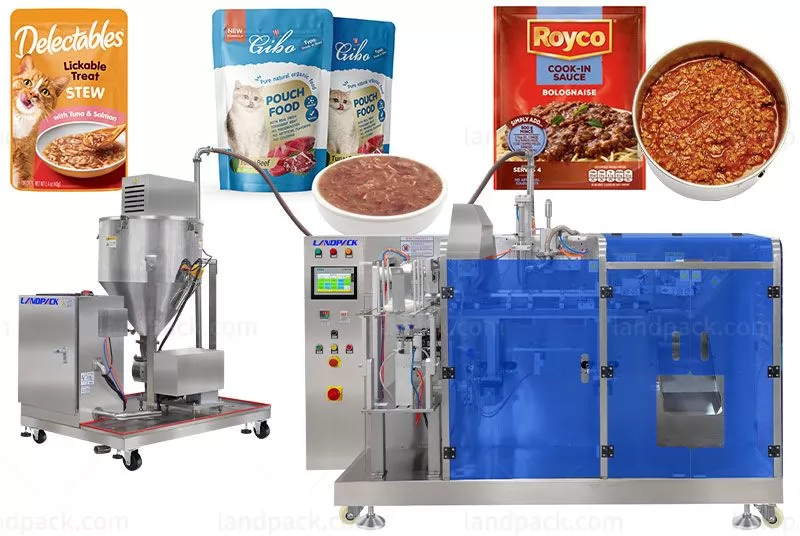

High Viscosity Tuna Meat Pet Food Horizontal Doypack Filling Packing Machine

  • Application
  • Description
  • Parameter
  • Video

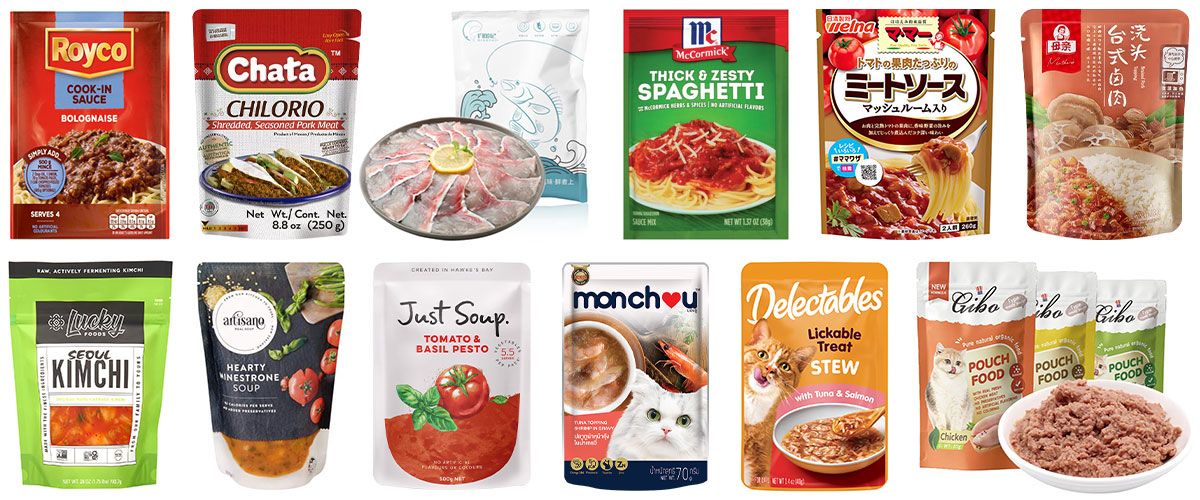

Suitable for liquid standing bags, pre-made bags, and zipper bag packaging, such as tuna meat, pet food, juice, cream, jam, laundry detergent, hand soap, sauces, honey, milk, etc.

Kindly Reminder:
We can customize the suitable one for you according to your requirements.
Just Tell us: Weight or Bag Size required.

Packing Exambers:    pet food packaging machine

1. Independent Control Box for the Hopper for 8 memory of the Filling capacity.

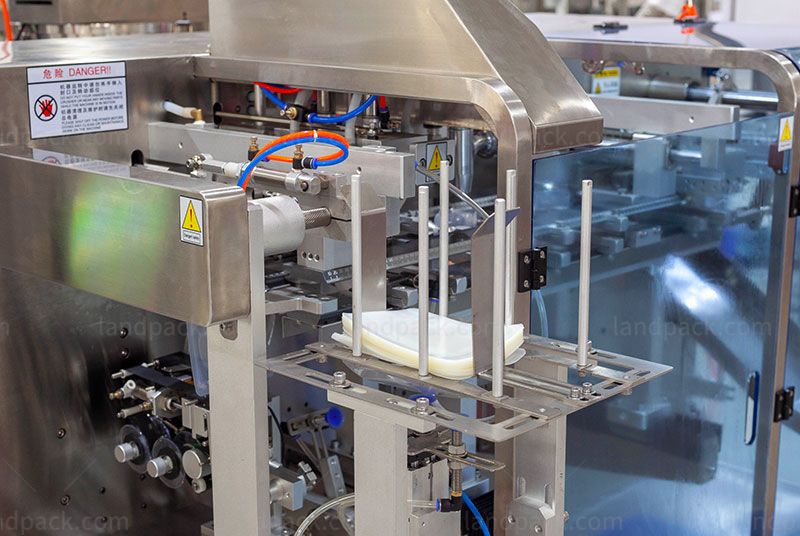

2. Vertical Bag Feeder for more quantity speed.

3. 5-leaf rotor measuring pump for high-viscosity products like tuna meat, honey, and chocolate cream.

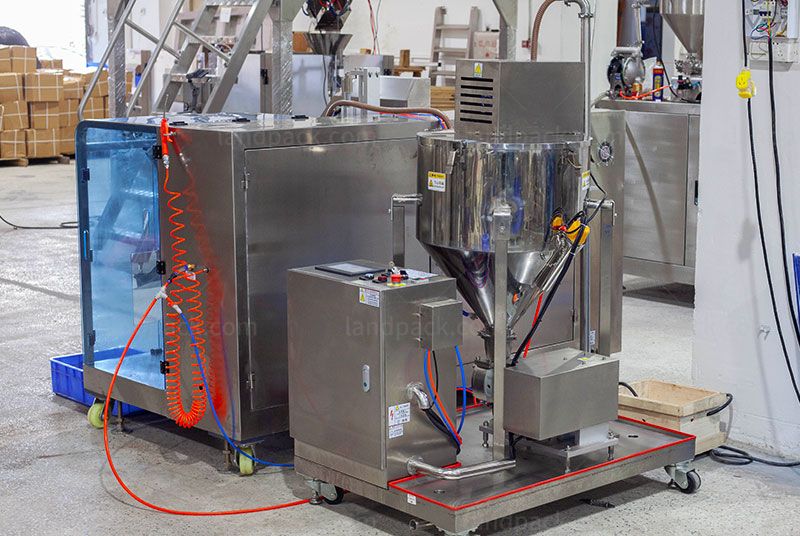

4. 100 Liters Heater And stir hopper for easy cleaning.

5. Adopted Simens PLC +Touch screen for easy operation.

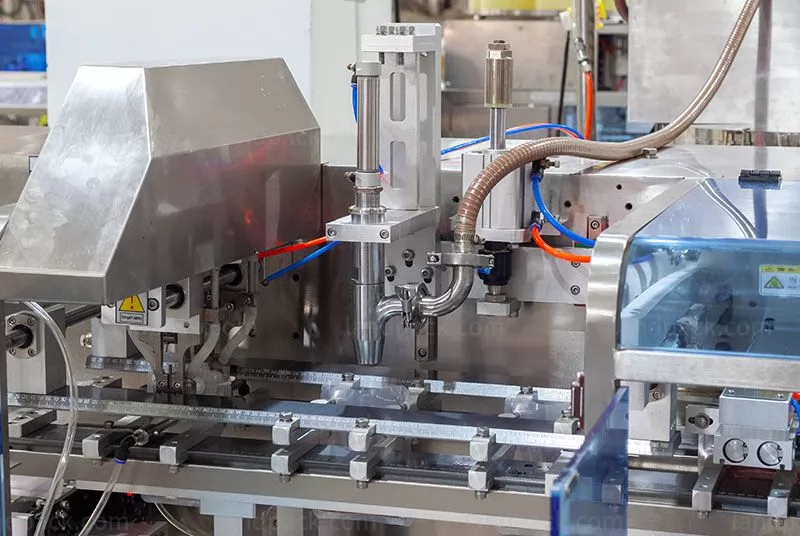

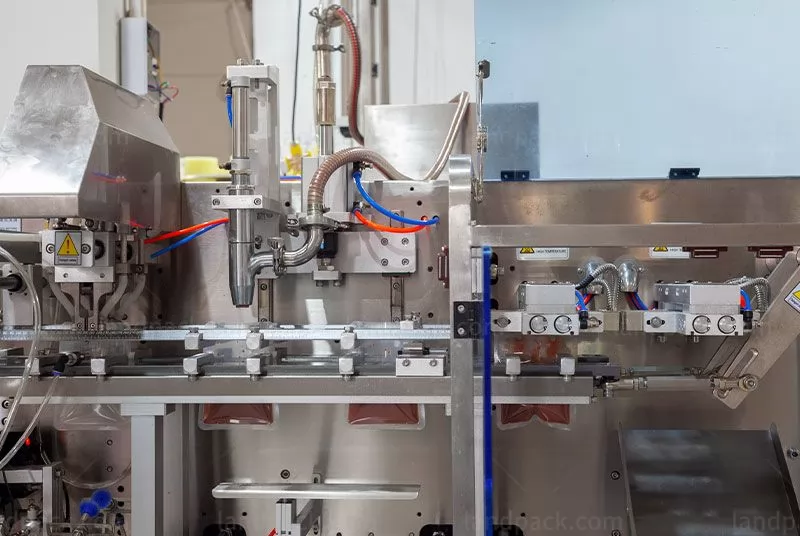

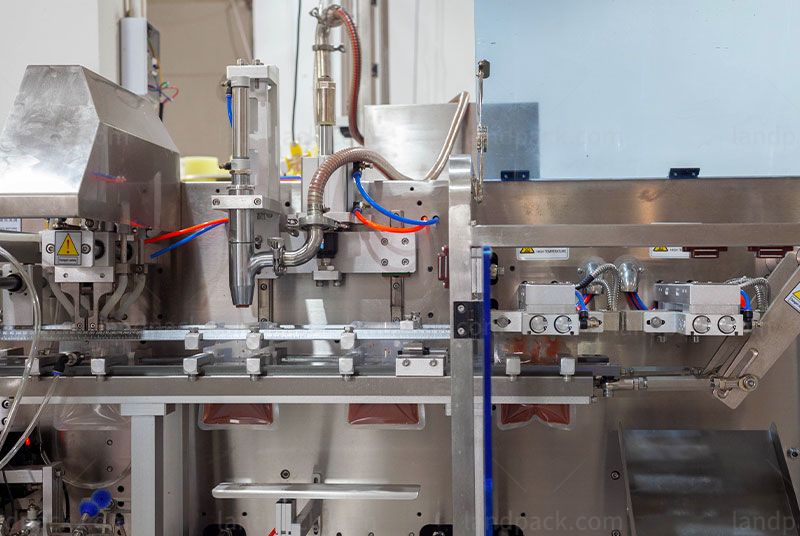

6. Customized Irregular Anti-Leakage Filling Nozzle.

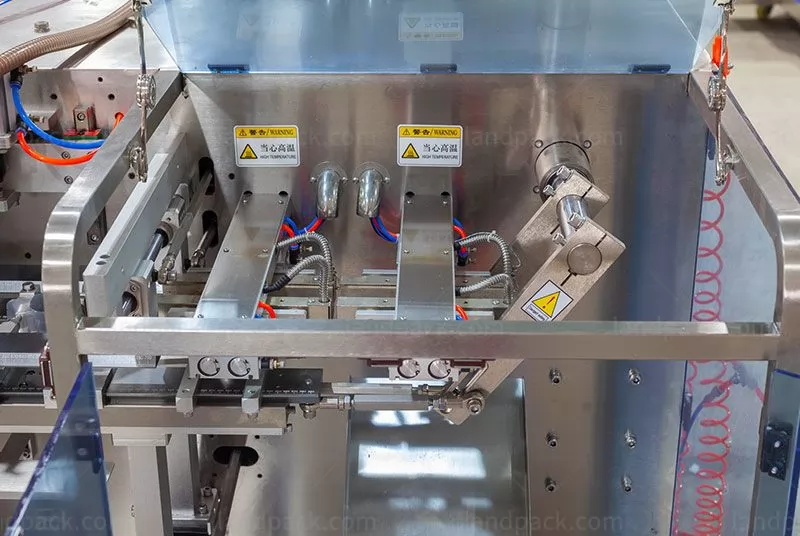

7. Second Times Sealing keeps sealing tightly and beautifully.

Packing material3-side, four edge-sealing bag, self-reliance bag, handbag, spout bags, zipper bag, compound bag, etc
Bag SizeW: 110-300 mm
Filling Range10-1000ml
Packing Speed10-45 bags/min(speed is determined by the product filling quantity)
Average precision≤±1%
Total Power2.5KW
Weight900 KG
Main standard parts

1. Code printer 2. PLC control system 3. Bag opening device 4. Vibration device 5. Cylinder 6. Electromagnetic valve 7. Temperature controller 8. Vacuum pump 9. Inverter 10. Output system

After receiving your inquiry,We will send you the quotation as soon as possible.
