Application:

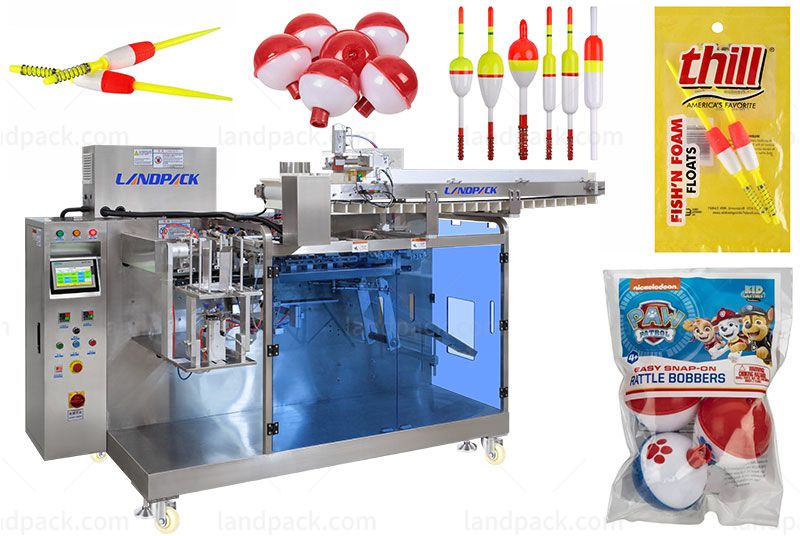

Suitable for packing fishing products such as fishing floats, fishing bobbers, catfish bends, waggler floats, catfish slip bobber rigs, fishing slip cast spin floats, etc.
Suitable Pouch: Doypack, Box Pouch, Zipper Pouch, Stand Up Pouch, Stand Up Pouch With Hole, Kraft Paper Bag, Side Gusset Bag etc.
Kindly Reminder:
We have an experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.
Packing Exambers:
1. Simple Operation: User-friendly interface for easy handling.
2. Flexibility for Various Sizes and Shapes: Compatible with different product shapes and sizes.
3. Versatility with Pre-Made Pouches: Suitable for various types of pre-made pouches, including flat pouches and stand-up pouches.
4. Cost-Effective and Space-Saving: Offers affordability and occupies minimal floor space.
Workflow:
1. Manual feeding product
2. Automatic bag giving
3. Bag Opening
4. Auto Filling
5. Auto Sealing
6. Output
| Type | LDSP-160B |
| Bag Type | 3-side, 4 side sealing bag, stand-up bag, handbag, spout bags, zipper bag, compound bag, etc. |
| Bag Size | 110-230mm*80-160mm(L*W) |
| Filling Range | 20g-500g |
| Packing Speed | 20-45 bags/min(speed is determined by the product filling quantity) |
| Machine weight | 800KG |
| Total Power | 2.5KW |
| Work Flow | 1. Giving bag, 2. Pick up the bag(coding), 3. Open the bag up and down, 4. Filling, 5. Heating sealing, 6. Output of product |
| Dimensions | 1750mm*1285mm*1360mm(L*W*H) |
| Collocation | Screw metering, screw elevator |
After receiving your inquiry,We will send you the quotation as soon as possible.
