Application:
This automatic horizontal pouch filling machine is designed for dual-compartment packaging, allowing two different products to be packed in one connected pouch and mixed before use. condiment combinations, sauce + spice, paste + powder, liquid supplements + protein powder, vitamin mix solutions,base liquid + flavor additives, two-component liquids, powder + liquid solutions,gel + active powder, dual-phase cosmetic products.
Package Type:
Premade horizontal twin spout pouch packaging with dual filling system and optional gas flushing.

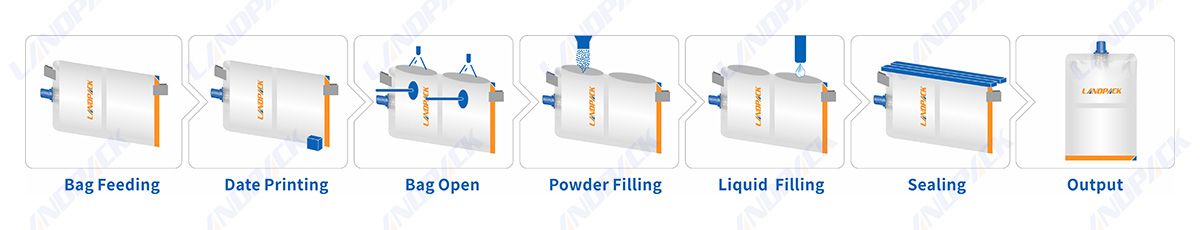

Workflow:

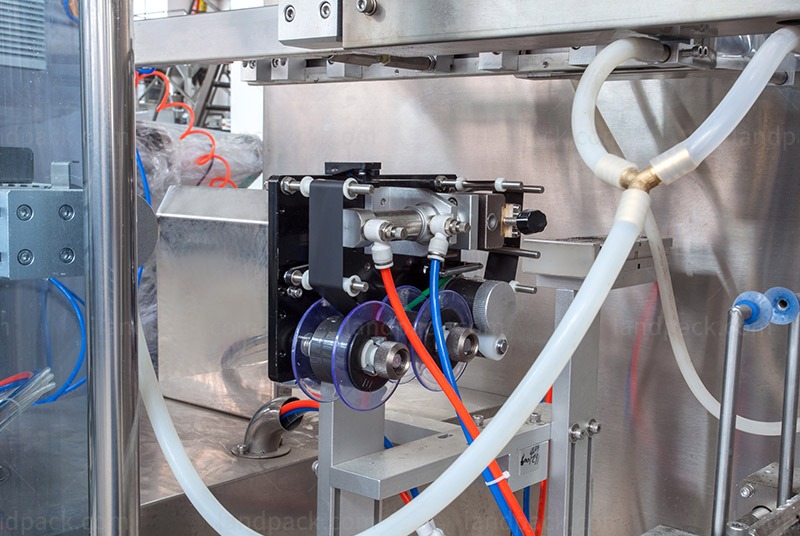

1. Bag Feeding → 2. Date Printing → 3. Bag Open → 4. Powder Filling → 5. Liquid Filling → 6. Sealing → 7. Output

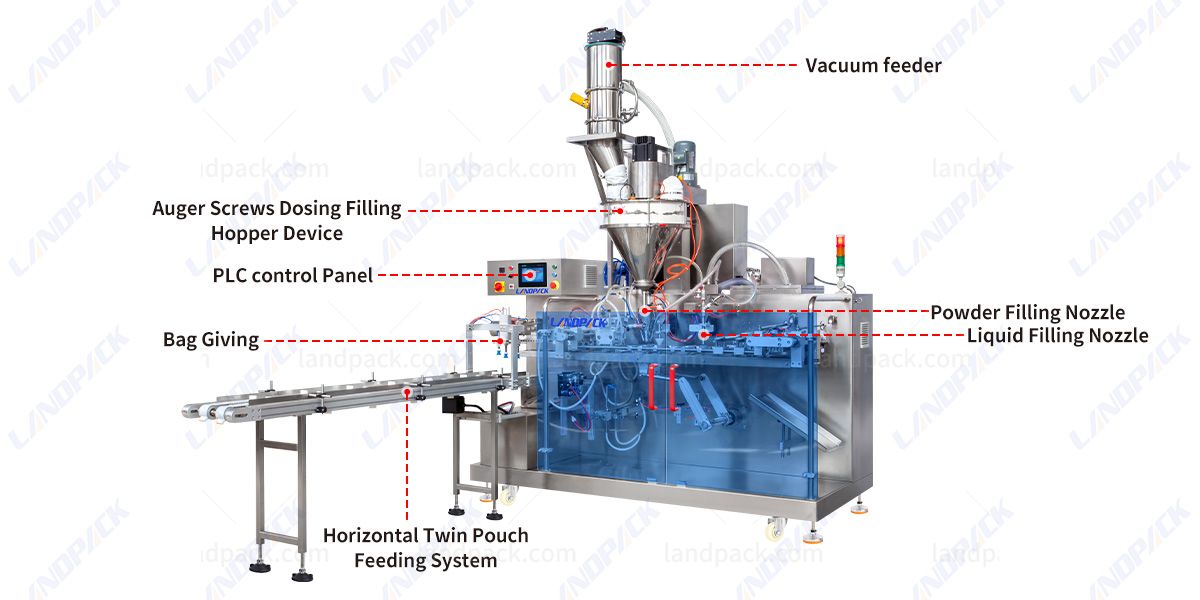

Machine Structure Overview:

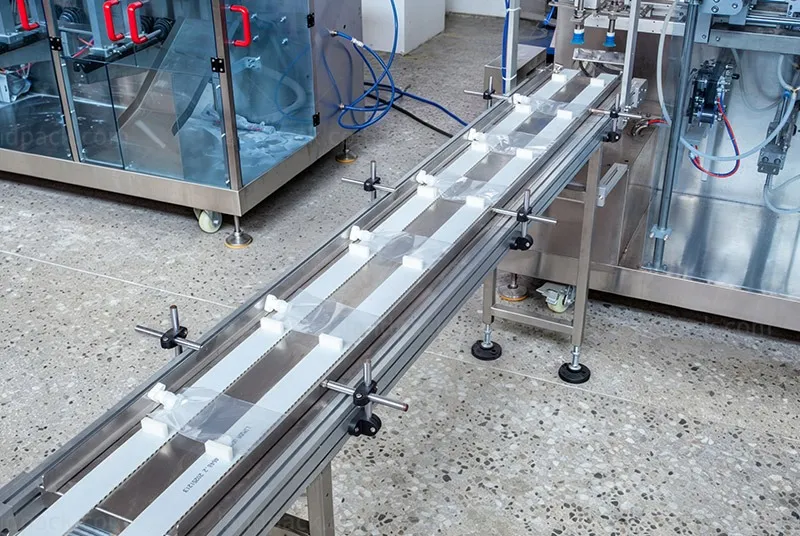

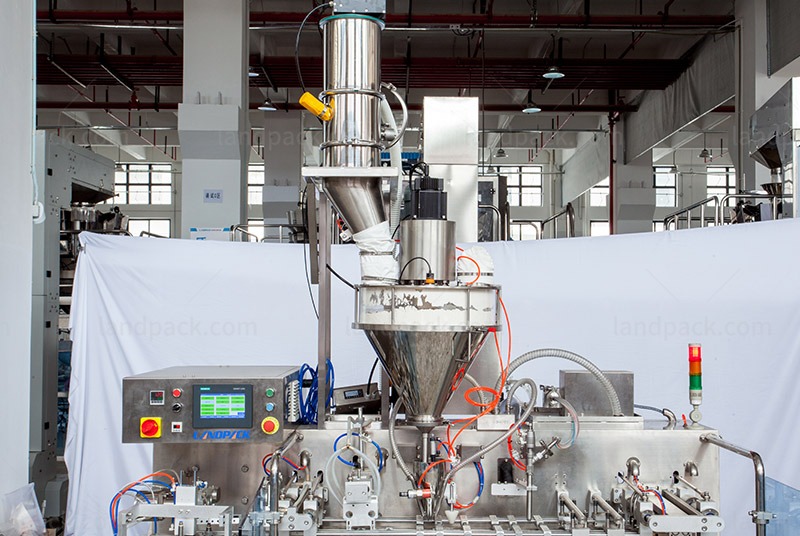

1. Vacuum Feeder 2. Auger Screws Dosing Filling 3. Hopper Device 4. PLC Control Panel 5. Powder Filling Nozzle 6. Liquid Filling Nozzle 7. Horizontal Twin Pouch Feeding System
Feature:
1. Dual filling system supports both powder and liquid dosing in one machine.
2. Horizontal bag feeding structure improves pouch handling stability.
3. Nitrogen flushing reduces air content inside the pouch.
4. Auger screw dosing ensures controlled powder filling.
5. Liquid filling nozzle supports different viscosities.
6. Touch screen control panel simplifies operation.
7. Adjustable settings for different pouch sizes and filling volumes.
8. Sealing unit provides consistent sealing for laminated films.
| Type | LDSP-160 | LDSP-210 | LDSP-260 |
| Bag Type | 3-side, 4 side sealing bag, doypack, box pouch, zipper pouch, stand up pouch, stand up pouch with hole, kraft paper bag, side gusset bag, etc. | ||
| Bag Size | 110-230mm*80-160mm(L*W) | 100-210mm/110-320mm（L*W） | 140-260mm/160-380mm（L*W） |
| Filling Range | 20g-500g | 20g-1kg | 20g-1kg |
| Packing Speed | 20-45 bags/min | 20-50 bags/min | 20-40 bags/min |
| Machine weight | 800KG | 900KG | 900KG |
| Total Power | 2.5KW | 2.5KW | 2.5KW |
| Work Flow | 1. Giving bag, 2. Pick up the bag(coding), 3. Open the bag up and down, 4. Filling, 5. Heating sealing, 6. Output of product | ||
| Dimensions | 1750*1285*1360mm(L*W*H) | 2140*1366*1360mm(L*W*H) | 2140*1366*1360mm(L*W*H) |
After receiving your inquiry,We will send you the quotation as soon as possible.
