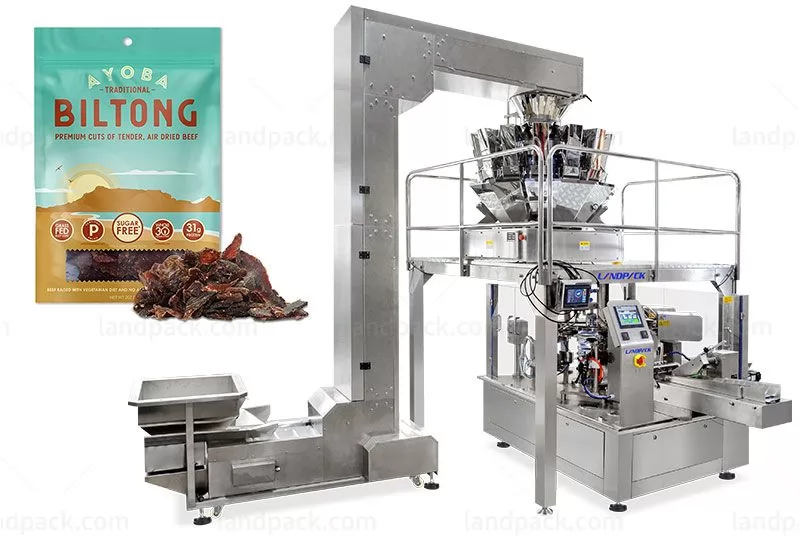

Automatic Beef Jerky Premad Pouch Packing Machine With Multihead Weigher

  • Application
  • Description
  • Parameter
  • Video

Application:

Automatic Beef Jerky Premad Pouch Packing Machine With Multihead Weigher, suitable for all kinds of grains and solids material, such as all kinds of grains and solids material, like beef jerky, biltong, candy, nuts, raisins, peanuts, melon seeds, nuts,nutlet, chocolate, preserved fruit, potato crisps, pet food, dilatant food etc can be weighed by the ration.

Suitable Pouches:

All type of heat sealable preformed side seal bags, fin seal bags, gusseted bags, block bottom bags, zip-lock recloseable bags, stand-up pouch with or without spout ect.

Kindly Reminder:

We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.

Packaging Examples:Automatic Beef Jerky Premad Pouch Packing Machine With Multihead Weigher

wide applications: various state and nature of solid(granule);

A wide range of pouches: all kinds of pre-made pouches;

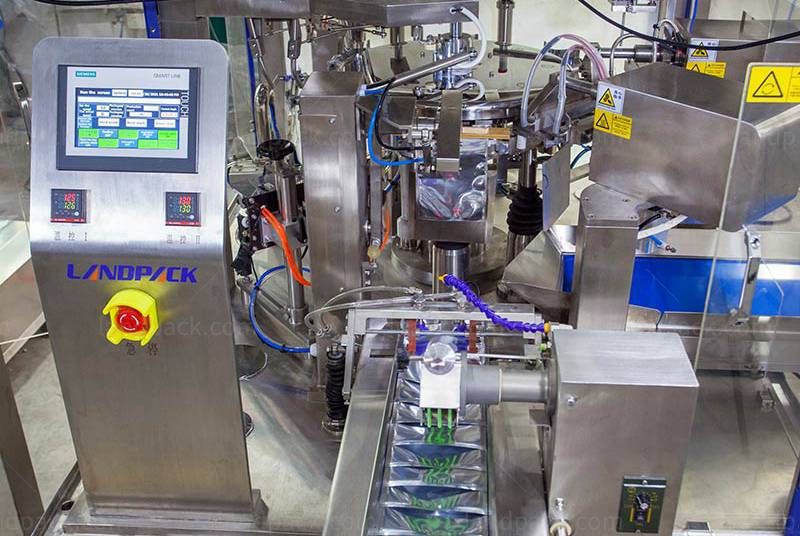

Easy to operate: PLC controller, HMI system makes easy operation;

Easy to adjust: change different pouches within 10 minutes;

High automation: unmanned in weighing and packing process, machine alarm automatically when failure;

Perfect prevention system: when the bag is not opened or not opened completely, it will be non-filling and non-sealing, so the bags can be reused and the product is not wasted thus save the production cost;

The product contact parts are adopted SUS304 to ensure sanitation and safety, meet the GMP standard;

Imported engineer plastic bearings, no need to oil, no contamination;

Vacuum generator: low consumption, high efficiency, cleaness, and long useful life;

Pre-made bag packing: perfect sealing quality, upgrade the finished product.

ModelLD-8200/LD-8250
Packing material3-side, four edge-sealing bag, self-reliance bag, handbag, spout bags, zipper bag, compound bag, etc
sizeW:70-200/100-250
Filling range10-1000g/20-2500g
Packing speed30-40 bags/min (speed is determined by the product filling quantity); 25~35 bags/min (for zipper pouch)
Average precision≤ ±1%
Total power2.5KW
Dimensions1900mm X 1570mm X 1700mm(L*W*H)
Work flowgiving bag→coding →opening →filling 1 →filling 2→ auxiliary→ exhaust→heat sealing→ .forming and output product
Main standard parts1. Code printer 2. PLC control system 3.Bag opening device 4. Vibration device 5.Cylinder 6. Electromagnetic valve 7. Temperature controller 8.Vacuum pump 9. Inverter 10. Output system

After receiving your inquiry,We will send you the quotation as soon as possible.
