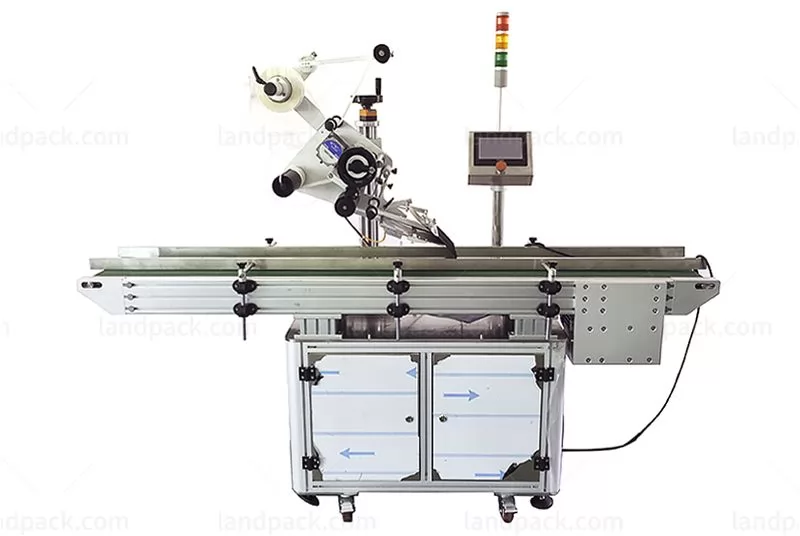

Fully Automatic Plane Flat Surface Paging Labelling Machines

  • Application
  • Description
  • Parameter
  • Video

Application:

The labeling Machine is suitable for all kinds of objects with plane surface, such as plastic paper card pouch cards hang tag paper plastic film flat surface products, boxes, bottles, cans, etc.

Widely used in cosmetic, drinks, chemical, medical, food industry, stationery CD, various oil, etc.

which can highly improve productivity and product quality. flat labeling machine

Kindly Reminder:

We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.

Packing Exambers:Fully automatic plane flat surface paging labelling machines

1.With stable paging, the card sorting rate is much higher than that of the general card sorting mechanism.

2.High paging labeling speed, with the monitoring code for the medicine box, the stable speed can reach more than 100 pieces/min.

3.It is widely used and can be used to label all kinds of CARDS and CARDS.

4.Stable labelling accuracy, using pressure top roller to press the workpiece, conveying steady, no warping, ensure the accuracy of labelling;

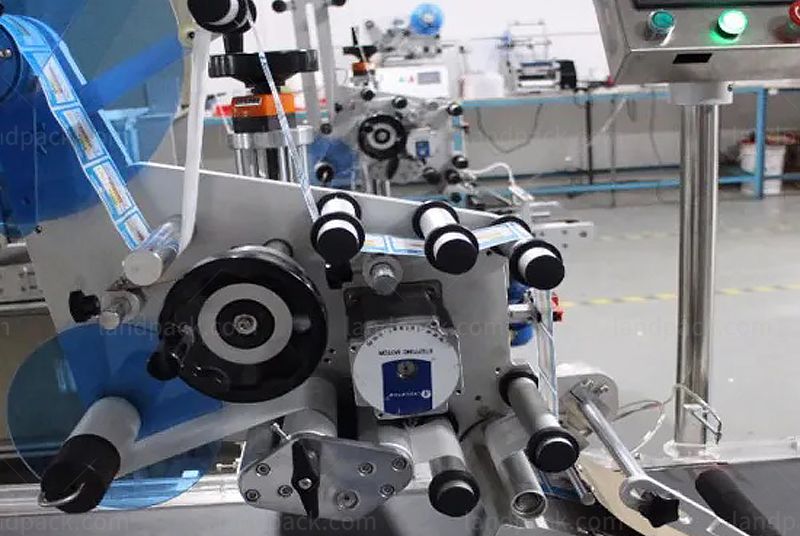

5.The mechanical adjustment part structure combination and the smart design of label winding, 6 degrees of freedom of labeling position fine adjustment is convenient, so that the conversion between different products and label winding become simple and time-saving;

6.Intelligent control, automatic electro-optical tracking, with no object and no label, prevent label waste;

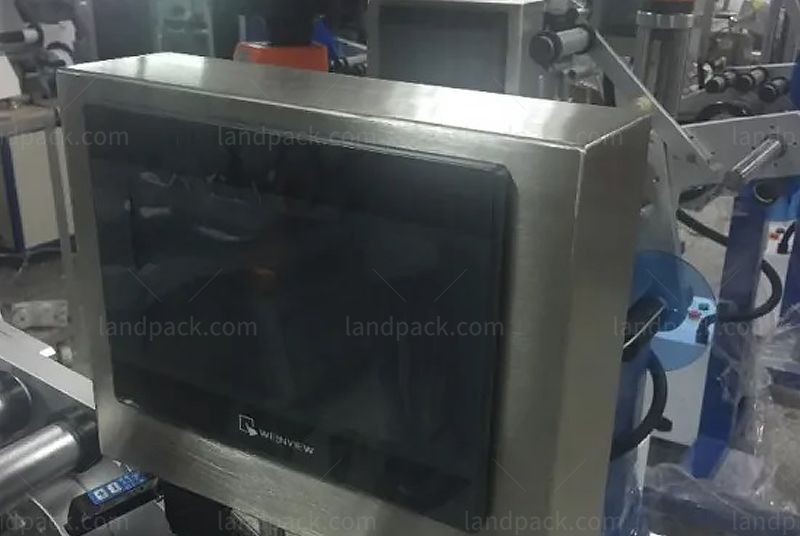

7.High stability, panasonic PLC+ dimensional control touch screen + panasonic needle electric eye + lait/titis label electric eye advanced electric control system, supporting 7X24 hours operation of equipment;

8.It has the function of fault prompt, production count, power saving, production number setting prompt and parameter setting protection;

9.Optional function: hot stamping/spraying code, automatic feeding and automatic receiving.

Technical ParametersApplicable scopeTechnical ParametersApplicable scope
Applicable labelsLength:6mm~250mmApplicable product sizeNo request(Depending on pipelining parameters)
Width:6mm~130mm
Outside diameter(mm):φ280mm
Inner diameter(mm):φ76mm
Labeling speedStep forward:40~150pcs/minPowerTraction step:380W
Servo:50~200pcs/minTraction servo:830W
Labeling accuracy±1mm
WeightAbout 180kgApplicable power supply 220V220V  50HZ
Equipment size(length×width×height)1100mm×700mm×1450mm

After receiving your inquiry,We will send you the quotation as soon as possible.
