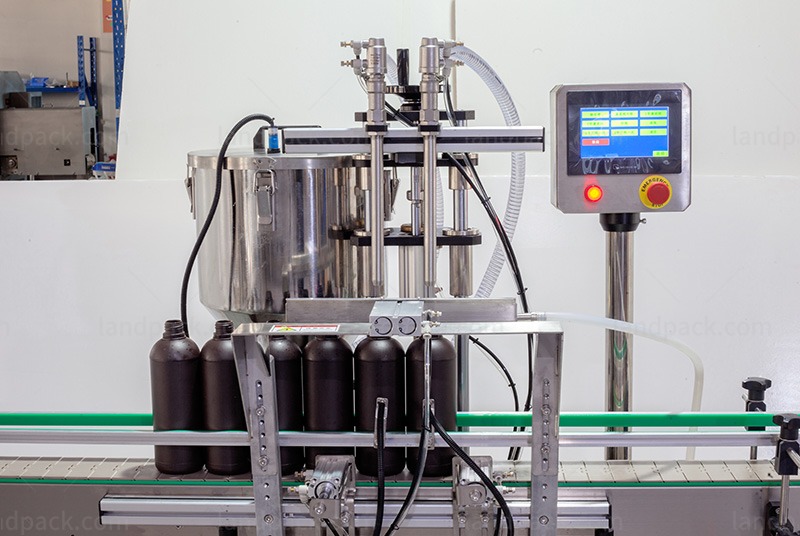

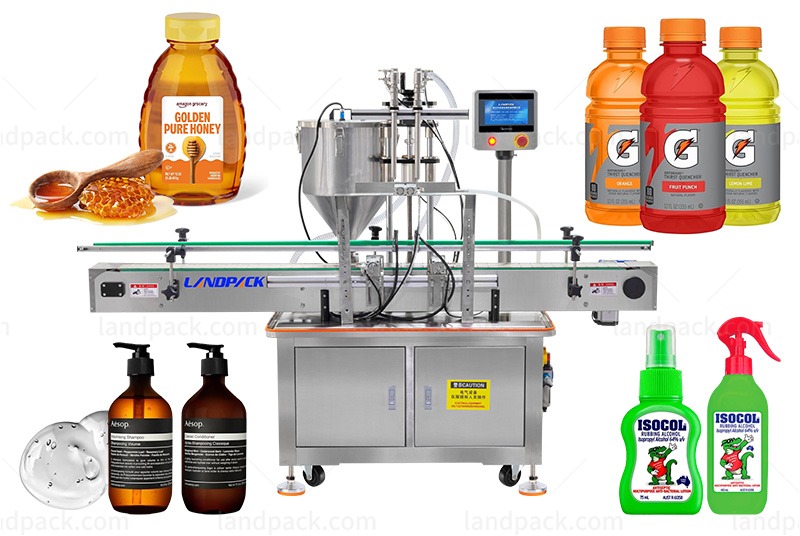

Automatic Double Nozzle Liquid Bottle Filling Machine With Anti-drip Tray

  • Application
  • Description
  • Parameter
  • Video

Application:
This liquid bottling filling machine is suitable for automatically filling various liquids into bottles such as syrup, fruit juice, shampoo, detergent, shower gel, sauce, honey, cooking oil, etc.

Packaging Material:
Glass, Metal, Paper, Plastic, Wood, Other

packaging sample:Automatic Double Nozzle Liquid Bottle Filling Machine With Anti-drip Tray

1. Double gear pump design supports a wide range of liquid filling applications.

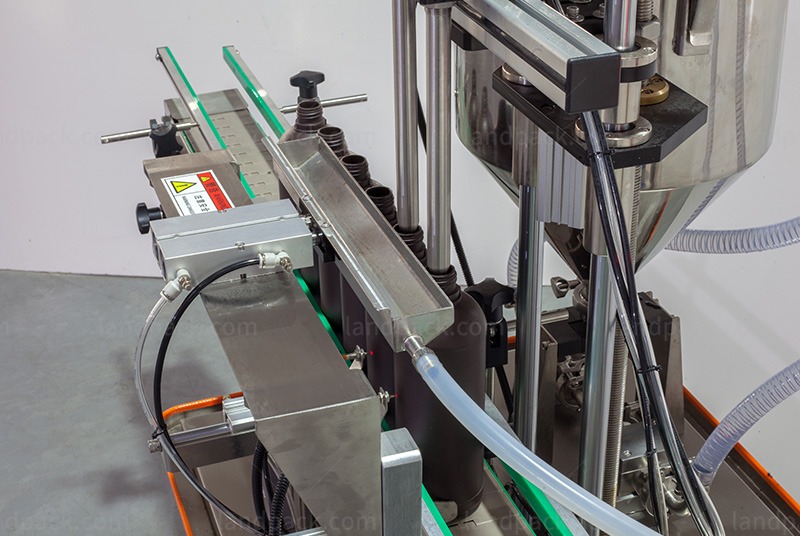

2. Equipped with anti-drip tray to maintain clean and precise filling.

3. Simple operation with user-friendly controls for quick setup.

4. Fast filling speed up to 25 bottles per minute, improving productivity.

5. Ideal for medium-viscosity liquids in food, cosmetics, and chemical industries.

Workflow:
1. Bottle feeding
2. Gear pump filling
3. Anti-drip tray
4. Output

Model
LFZ-01/02/03/04
Filling Range
50-1000ml(Customizable)
Filling Speed
15-25 bottles/min
Measurement accuracy
±1%
Power
2 KW
Working power supply
220V, 50Hz
Working pressure
0.6-0.8 MPa
Weight
600 kg
Size
L4000*W1320*H2090 mm

After receiving your inquiry,We will send you the quotation as soon as possible.
