Application:
It is suitable for filling liquids and pastes of any fluidity in various industries. Such as hand sanitizer, alcohol, lotion, shampoo, cream, toner, emulsion, nourishing, detergent, pesticides, syrup, peanut butter, condensed milk, chocolate sauce, ketchup, shampoo, fruit juice, honey, detergent, etc.
Kindly Reminder:
We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.
Packing Exambers:

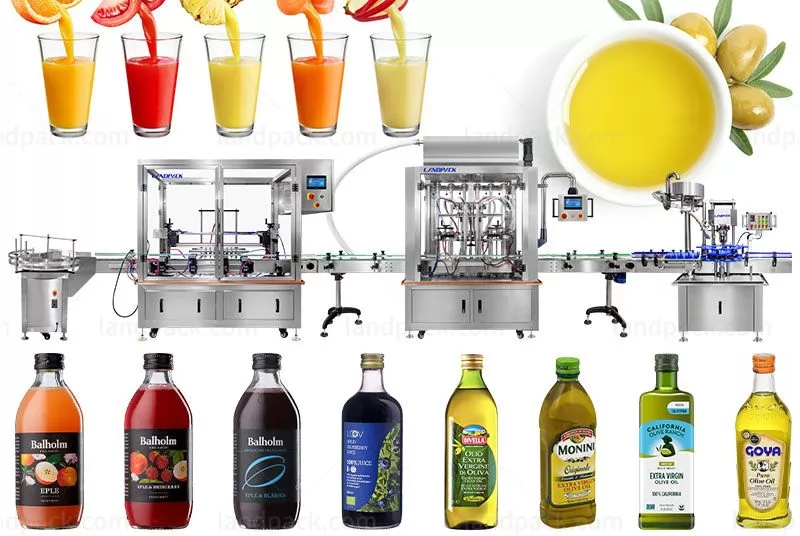

1. Automatic bottle washing filling capping procession line.
2. Adopts flip-type water washing and blowing integrated machine.

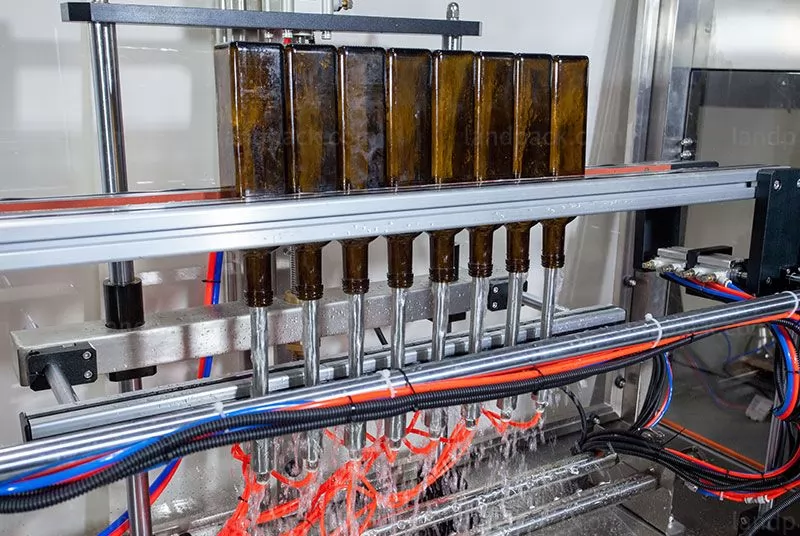

3. Machine adopts 6 heads piston pump device, fast speed, and high filling precision.
4. High speed capping machine by servo motor control.
Work Process:

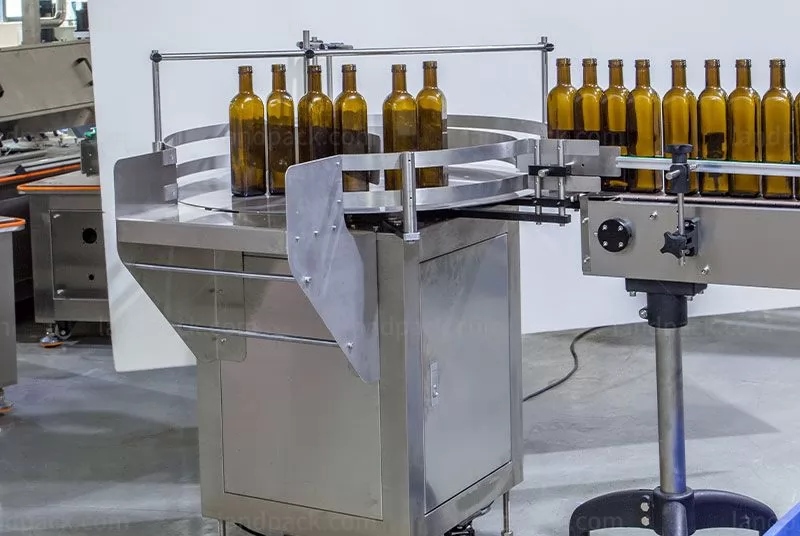

1. Unscramble bottle device(round/square bottle suitable)
2. Flip-type bottle water washing and blowing machine
3. High precision piston pump filling device
4. Auger track and rotary table to fix bottle base
5. Vibration cap feeder device and place cap automatically

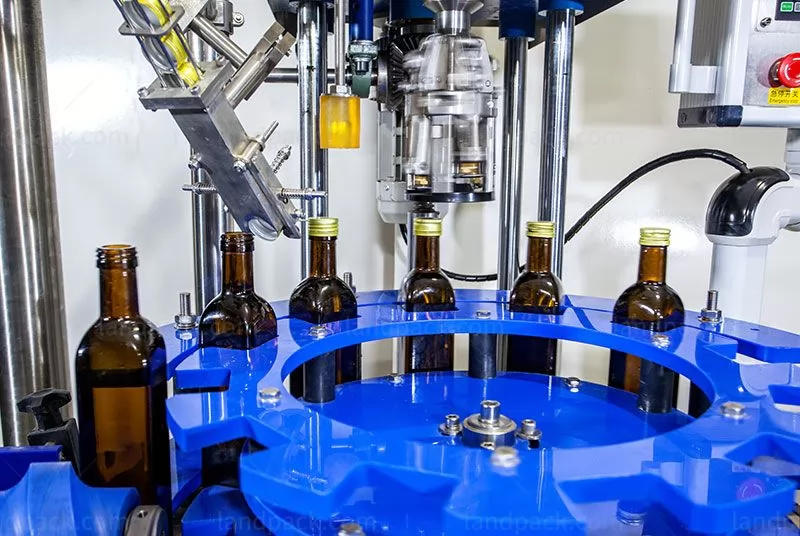

6. High speed capping machine
Model Name | LD-ALF06 |
| Filling Range | 50-1000ml (Customizable) |
| Filling Speed | 20-35 bottles/min |
| Measurement Accuracy | ±1% |
| Power | 220V, 50Hz, 1KW |
| Working Pressure | 0.6mpa-0.8mpa |
| Weight | 400kg |
| Dimension | L4004*W1175.97*H2045(mm) |
After receiving your inquiry,We will send you the quotation as soon as possible.
