Automatic Liquid Piston Pump Filling Capping Labeling Machine

  • Application
  • Description
  • Parameter
  • Video

This liquid piston pump filling capping labeling machine is widely used in filling various viscous liquids, such as shampoo, paint, lubricating oil, hand soap, mouthwash, facial cleanser, face cream, various essential oils, etc.

Kindly Reminder:
We have an experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.

Packaging Exambers:Automatic Liquid Piston Pump Filling Capping Labeling Machine

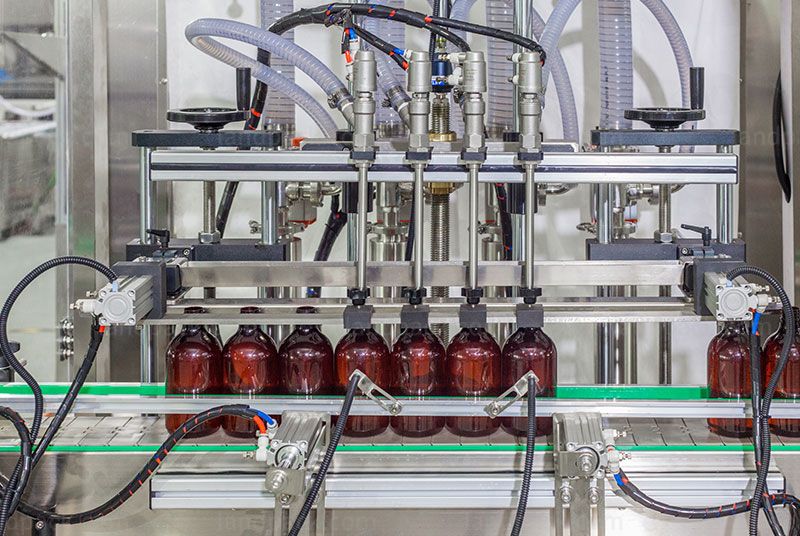

1. 4 head piston filling machine, high precision filling system, filling accuracy up to ±1%.

2. Fully automatic capping machine with cap feeder, saving labor.

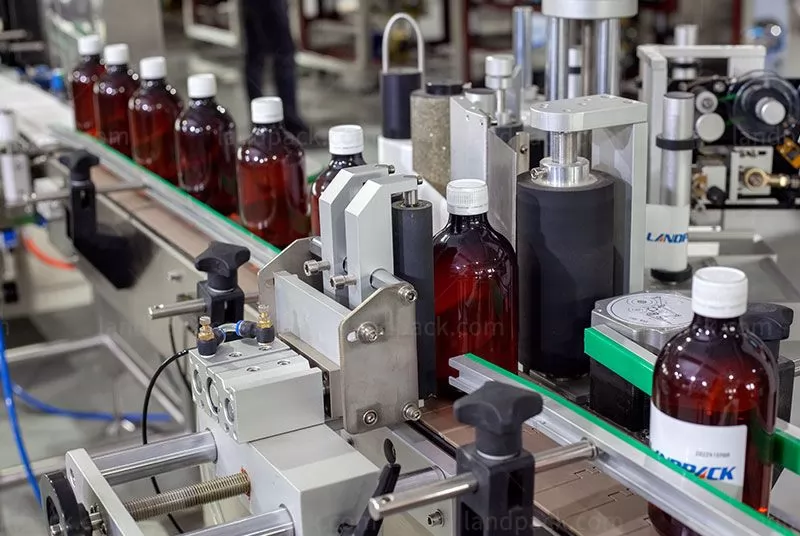

3. Linear capping machine, suitable for bottles of different sizes, when you change to different bottles, you don’t need to change any mold, just need to adjust the machine.

4. Fully automatic sensor recognition, no bottle, no filling, no capping, no labeling.

5. The whole line of stainless steel body, easy to clean and maintain.

Filling Range50-1000ml(customizable)
Filling Speed15-25 bottles/min (100-500ml range)
Measurement Accuracy±1%
Bottle DiameterΦ30mm-Φ135mm(customizable)
Bottle Height40mm-200mm(customizable)
Control systemPLC
Total production line power6.5KW
Power supply220V, 50Hz
Airconsumption0.8-1.2 m³/min
Equipment material304

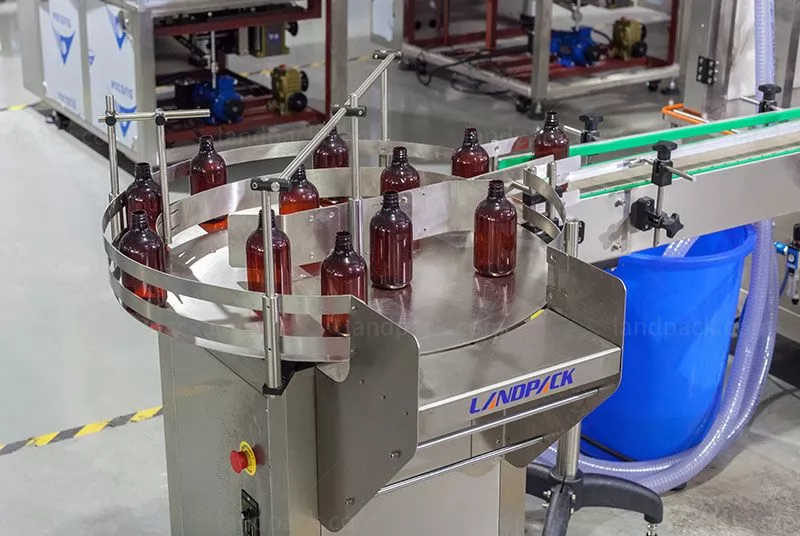

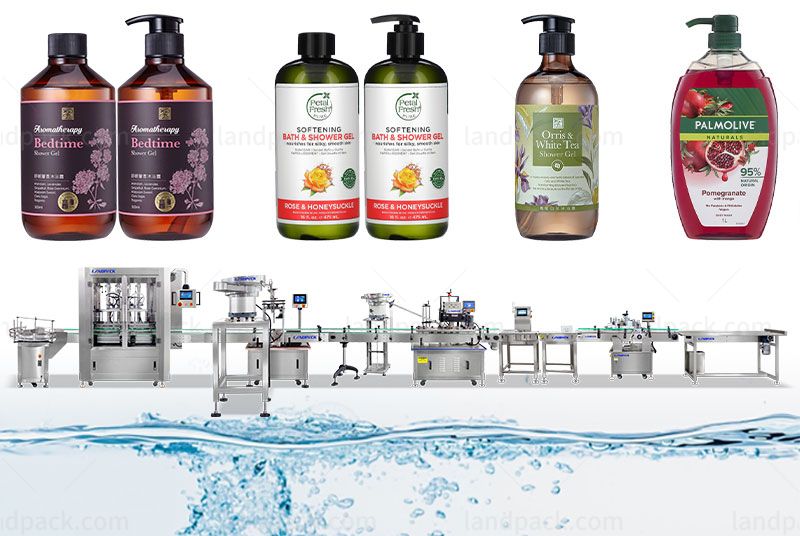

Description of main packaging process:unscramble bottle → 4 head piston filling → lifting upper cover → servo capping → aluminum foil sealing → labeling → receiving bottle

After receiving your inquiry,We will send you the quotation as soon as possible.
