Application:
It is widely used in the filling of various semi-fluids, pastes, dense bodies, and sauce materials, such as ink, paint, cosmetics, beverages, shampoo, laundry detergent, hand washing, honey, jams, ketchup, chili sauce, bean paste, and salad dressing.
Kindly Reminder:
We have an experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.
Packing Exambers:
1. Flexible Machine Design: Adapts to different bottle sizes, providing versatility in production.
2. Automatic Bottle Filling and Capping: Simplifies the process with automated filling and screw capping, ensuring easy operation.

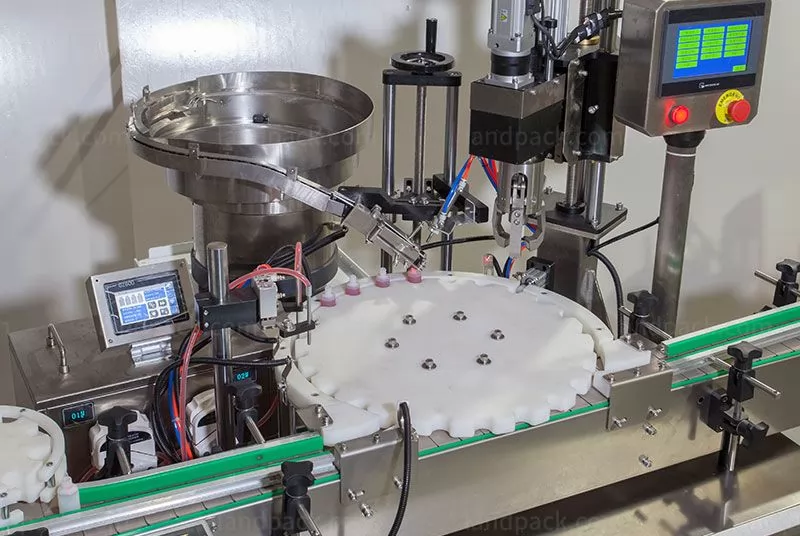

3. Automatic Cap Feeding: Equipped with a vibration plate for precise and fast cap feeding, improving efficiency.
4. Stable High-Speed Operation: Ensures smooth running at high speeds for optimal productivity.

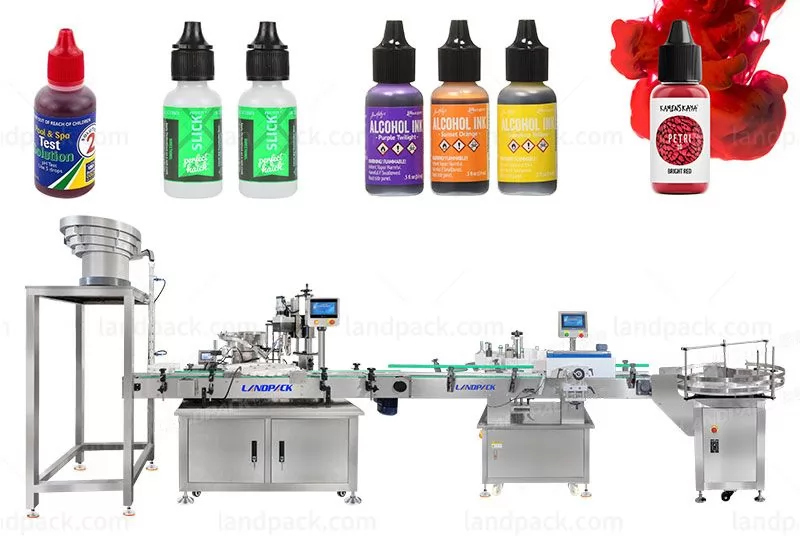

Workflow:
1. Auto bottle feeding

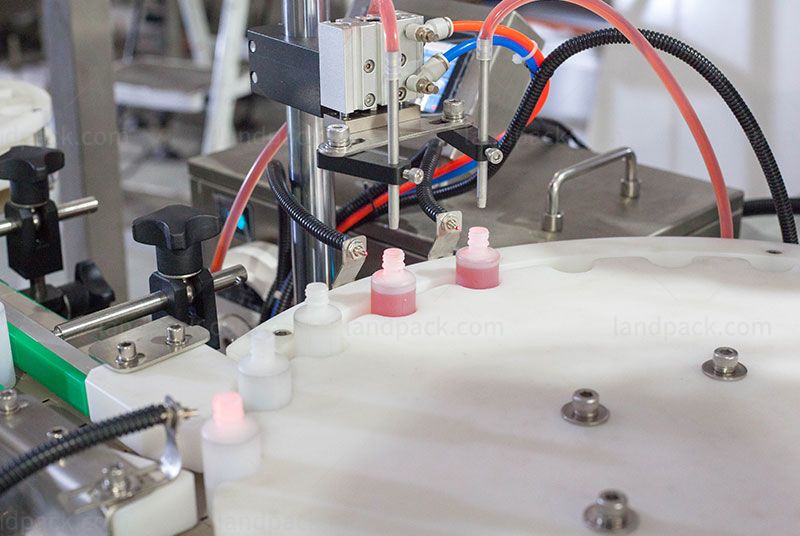

2. Two heads of filling nozzles
3. Auto cap feeding with the Vibration plate
4. Servo capping machine
5. High Speed and Precision labeling
| Automatic Peristaltic Pump Liquid Filling Capping Machine | |
| Model | LD-AFC7C |
| Voltage | 220V/110V, 50-60Hz |
| Power | 500W |
| Filling Pump | Peristaltic Pump |
| Working Speed | 30 bottles/min(depending on bottle size and filling material) |
Filling Range | 1-10ML(Customizable) |
| Max Flow Rate | 1.5L/min (based on water) |
| Suitable Bottle Size | Can be customized |
| Bottle Cover Size | Can be customized |
| Packaging Size | About 1090*750*960mm(Machine); About 1080*730*580mm(Vibratory Bowls) |
| Packaging Weight | About 157kg(Machine); About 136kg(Vibratory Bowls) |
| Automatic Round Bottle Labeling Machine | |
| Name | Technical parameters |
| Model | LD-TB130 |
| Labeling range | L<300mm, H<120mm |
| Labeling speed | 60 bottles/min |
| Labeling accuracy | ±1.5mm |
| Size of the main frame | L1900*W800*H1450(mm) |
| Working voltage | 220V |
| Electricity power | 420W |
| Weight | 250W |
| Packing Dimension | 2100(L)*1150(W)*1450(H)mm |
After receiving your inquiry,We will send you the quotation as soon as possible.
