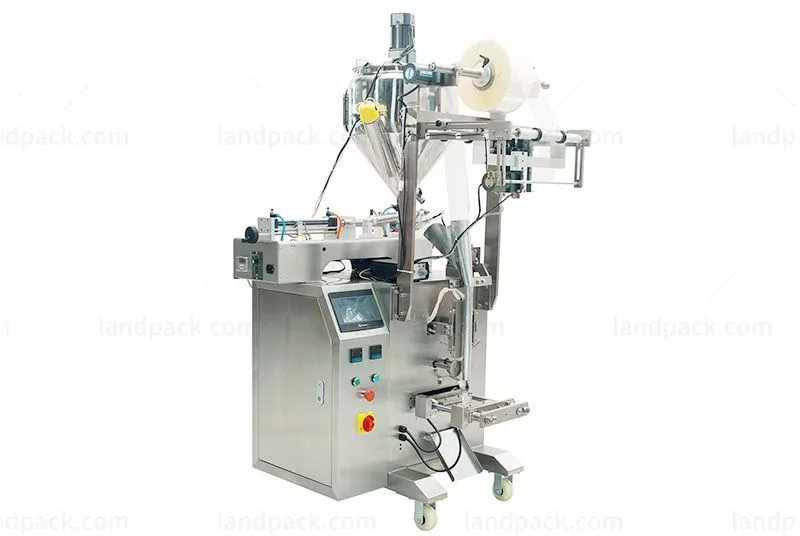

50-500ml Sachet Liquid Packaging Machine LD-320L/ LD-380L

  • Application
  • Description
  • Parameter
  • Video

Application:

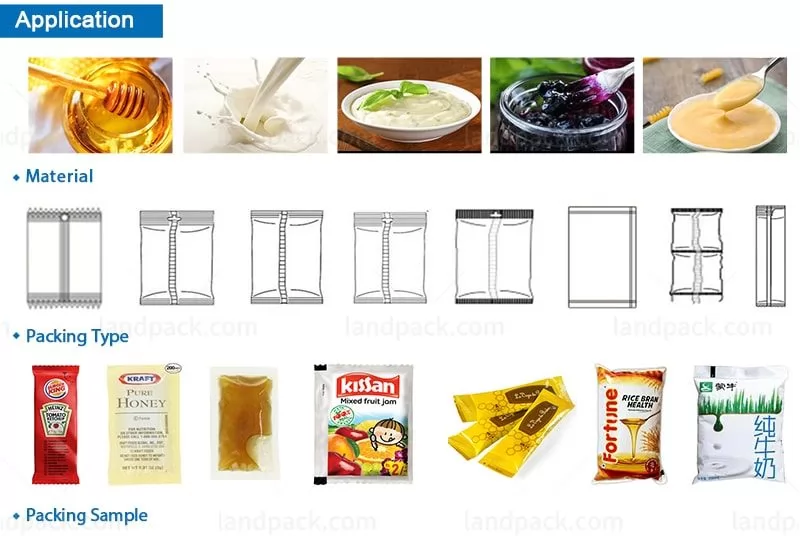

Suitable For Packing For All Kinds Of Liquid Material Which Such As Liquid Milk, Water, Honey, Juice, Tomato Paste, Ketchup, Sauce, Oil,Etc. Various Bag Types Are Available, E.G. Back-Sealing Bag, 3 Sides Seal Bag, 4 Sides Seal Bag, Stick Bag, Linking Bags,Etc.

Kindly Reminder:
We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.

Packing Exambers:    50-500ml Sachet Liquid Packaging Machine LD-320L/ LD-380L

Computer PLC control and automatic alarming function.

Multilingual screen display, easy operation.

High sensitivity photoelectric eye color tracing,more accuracy.

Bag type can be customised to 3 or 4 sides sealing bag, pillow bag, long stick bag, link bag, etc.

Famous brand components, ensure the quality and durability of machine.

Weight measuring, bag making, filling, sealing, cutting and bags counting can be done automatically.

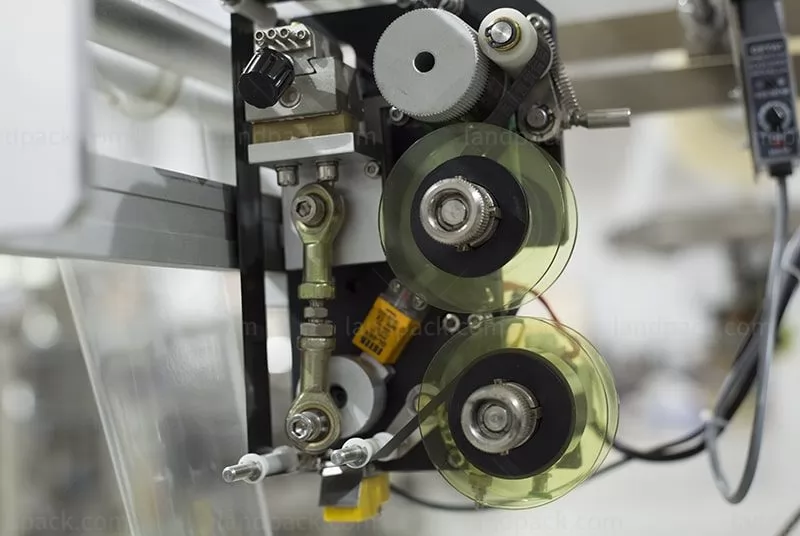

Ribbon code printer, link-bag device is option.

Multipurpose packaging, suitable for various packaging of different product.

ModelLD-320LLD-380L
Film width120-320mm180-380mm
Bag length50-200mm60-280mm
Bag width50-150mm60-180mm
Diameter of film rollMax.300mmMax.320mm
Packing speed35-70bag/min
Measuring range50-500ml50-750ml
Film thickness
0.04-0.07mm
Power220V 50/60Hz 2.2KW220V 50/60Hz 2.5KW
Machine size(L*W*H)
970*680*1950mm1100*800*2150mm
Machine weightAbout 300kgAbout 450kg

After receiving your inquiry,We will send you the quotation as soon as possible.
