Automatic Multilane Liquid Sachet Counting Into Bag Packaging Machine Line

  • Application
  • Description
  • Parameter
  • Video

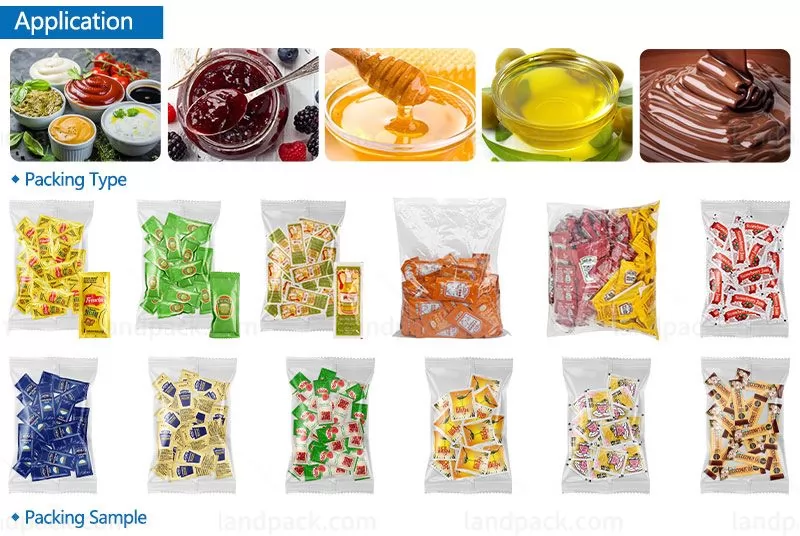

Application:

Automatic multilane liquid sachet counting into bag packaging line is suitable for kinds of liquid products, such as liuqid, jam, olive oil, ketchup, shampoo, shower gel, fruit juice, honey, milk, mouthwash, sauce, jelly, etc.

Packaging Line Composition:

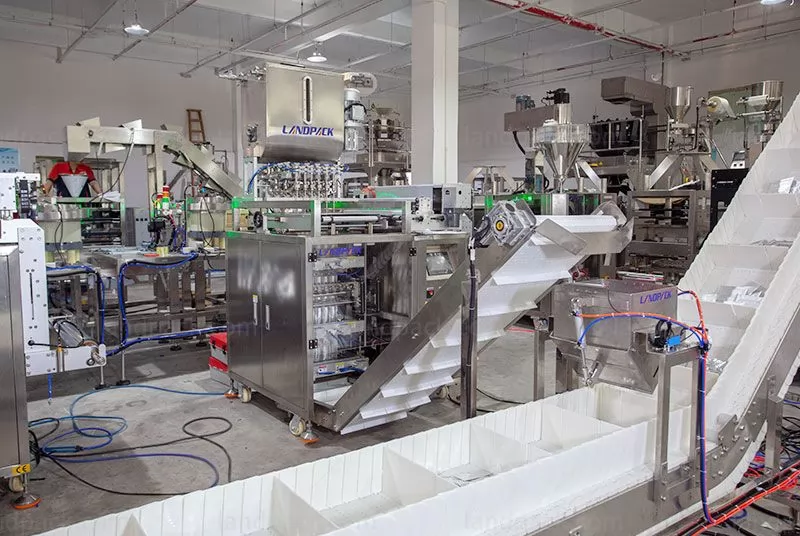

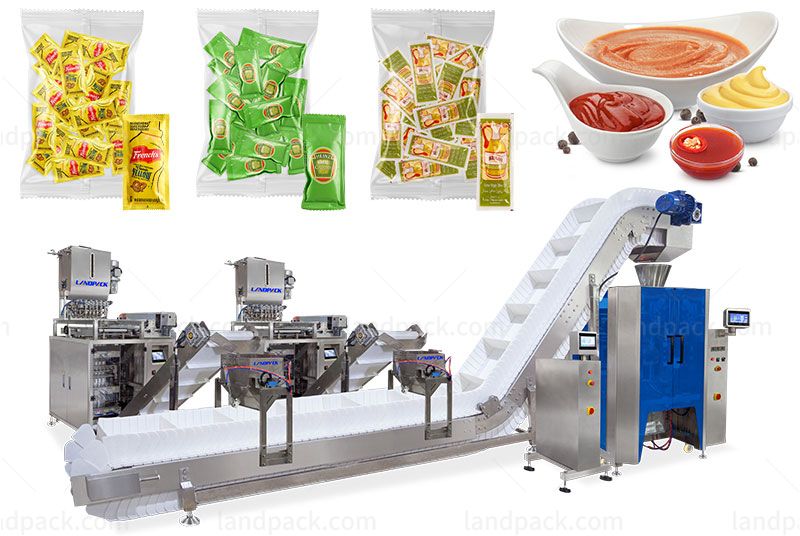

This sachet packaging and bag-in-bag machine system consists of multi-lane sachet pack liquid packaging machine, counting machine and vertical form filling sealing machine. It can realize sachet packed packaging into a bag.

Kindly Reminder:

We have an experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.

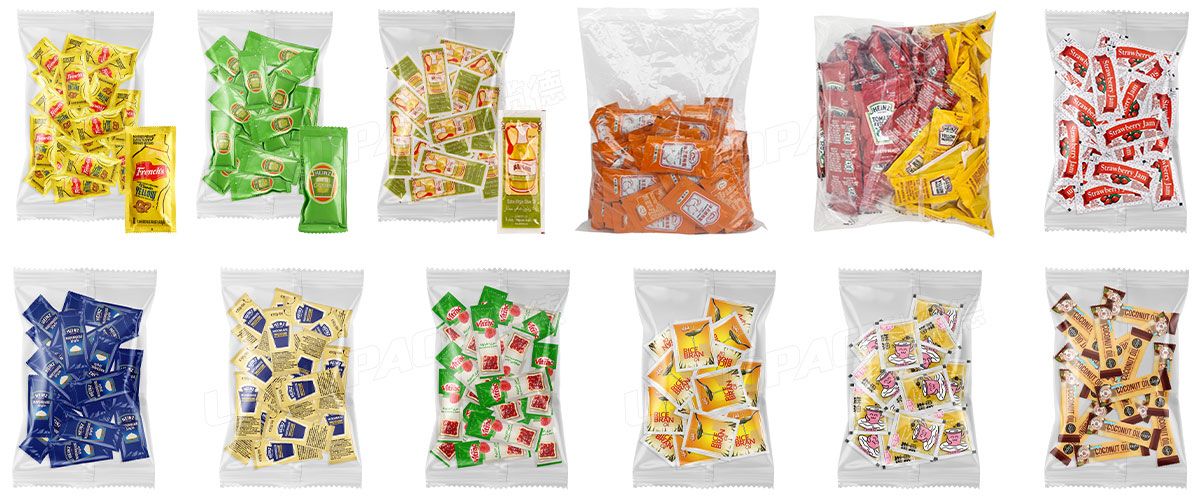

Packing Exambers:Automatic Multilane Liquid Sachet Counting Into Bag Packaging Machine Line

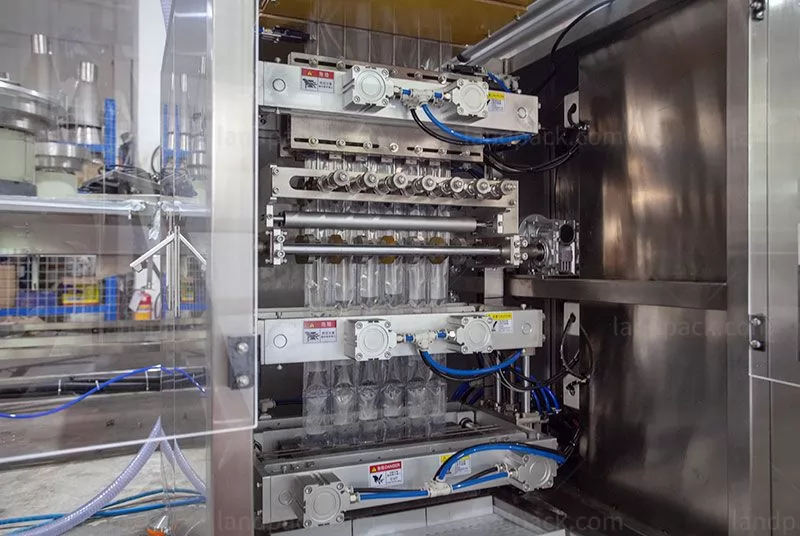

1. 2 liquid multi-channel packaging machines to improve your production and packaging efficiency.

2. The conveyor outlet is equipped with a counting sensor and collection device to collect the target number of small bags and discharge them into the chain conveyor.

3. The imported counting sensor has a high sensitivity to ensure the correct counting target amount.

4. A servo motor drives the inclined conveyor. No movement is allowed without materials.

Multi-Channel Packaging Machines Parameter
ModelLD-480YLD-720YLD-960Y
Track Number4-6 Track4-10 Track4-12 Track
Filling Method1. Piston pump; 2. Peristaltic Pump
CapacityMax.40 cycles/min
Sachet SizeL: 45-120mm; W: 35-60mmL: 45-120mm; W: 35-90mmL: 45-120mm; W: 35-120mm
Film Width & ThicknessMax.480mm; 0.07-0.1mmMax.720mm; 0.07-0.1mmMax.960mm; 0.07-0.1mm
Sealing Type3/4 sides sealing3/4 sides sealing3/4 sides sealing
Cutting Type1. Straight Cutting; 2. Zig Zag Cutting; 3. Continuous Cutting
Air & Power0.8 mpa, 0.8m³/min, 2.8kw0.8 mpa, 0.8m³/min, 4.1kw0.8 mpa, 0.8m³/min, 5.5kw
DIM & WT950*1470*1750mm; 300kg1153*1654*1750mm; 400kg1415*1686*2130mm; 500kg

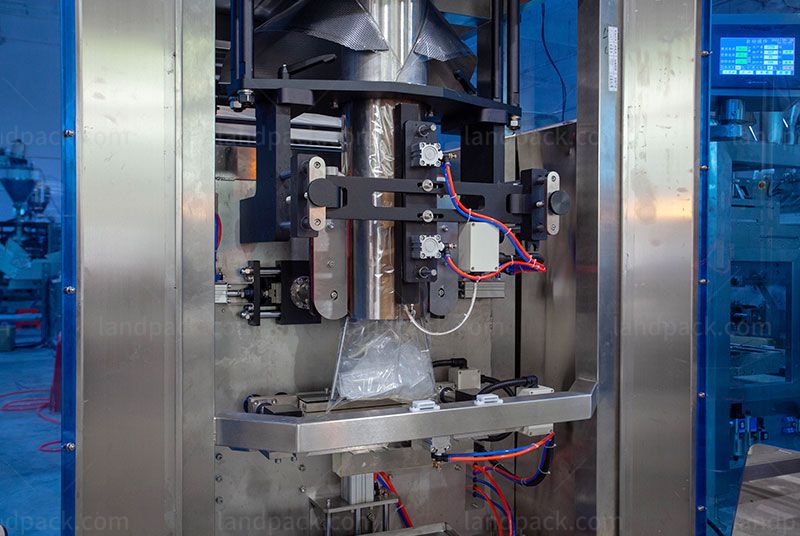

Vertical Form Fill Seal Machine Parameter
ModelLD-420LD-520LD-720
Film Thickness0.04-0.08mm0.04-0.12mm0.04-0.12mm
Bag Length80-300mm80-350mm100-500mm
Bag Width60-200mm100-250mm180-350mm
Film Roll DiameterMax.320mmMax.320mmMax.320mm
Pakaging Rate5-60 bags/min5-60 bags/min5-55 bags/min
Film WidthMax.420mmMax.520mm150-Max.720mm
Measurement Range150-1500ml5-2000ml4000ml
