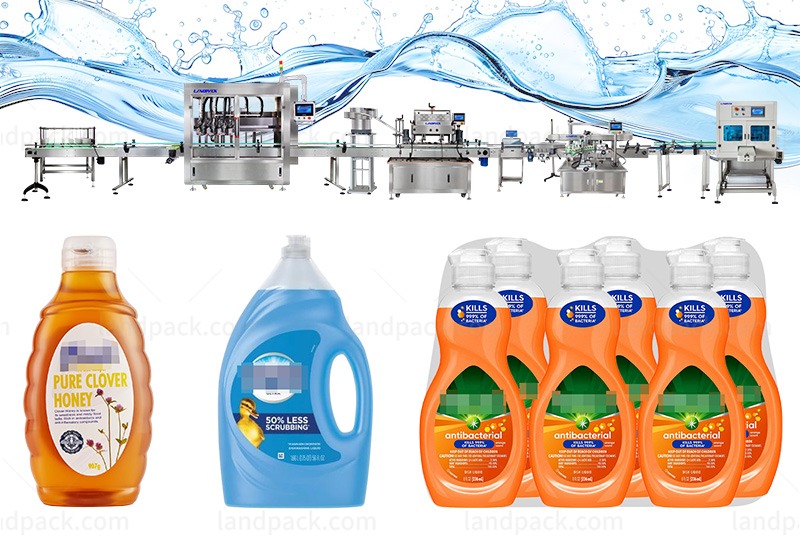

Automatic Liquid Filling Line With Capping Labeling Shrinking Machine System

Application:
This production line is suitable for hair oil, essential oil, scalp care oil and other liquid personal care products packed in plastic or glass bottles. It can be used in hair care, cosmetics, skincare and daily chemical production lines where automatic bottle feeding, liquid filling, capping, labeling, inkjet coding and sleeve shrink packing are required. Such as hair oil, hair serum, scalp treatment oil, essential oil, massage oil, body oil, facial oil, skincare serum, shampoo, conditioner, body wash, liquid soap, hand wash and other bottled personal care liquids.

Package Type:
Suitable for plastic or glass bottles with screw caps, double-sided labels and optional sleeve shrink film wrapping for grouped bottle packaging.

Workflow:
Empty Bottle Feeding → Four-Head Servo Tracking Filling → Automatic Cap Feeding → Automatic Capping → Double-Sided Labeling → Inkjet Coding → Bottle Direction Changing → Sleeve Film Wrapping → Heat Shrinking → Finished Product Output

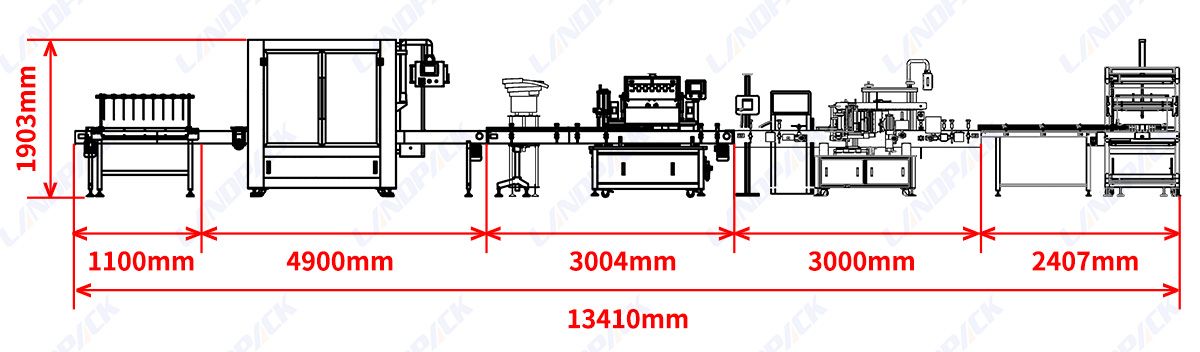

Machine Structure Overview:
1. Bottle Feeding  2. 4 Head Tracking Filling Machine  3. Caps Feeder  4. Capping Machine  5. Inkjet Printer  6. Labeling Machine  7. Sleeve Shrink Packing Machine

Feature:
1. The filling system, lifting mechanism and tracking system are controlled by servo motors to support accurate liquid filling during continuous bottle conveying.
2. Operators can set the filling volume and filling speed directly through the HMI without replacing mechanical parts.

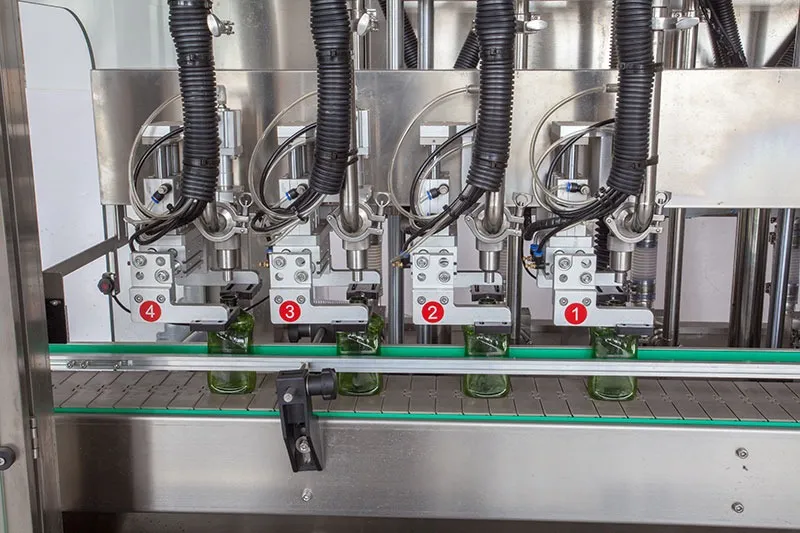

3. The four-head tracking filling machine follows moving bottles during dispensing to reduce waiting time between filling cycles.

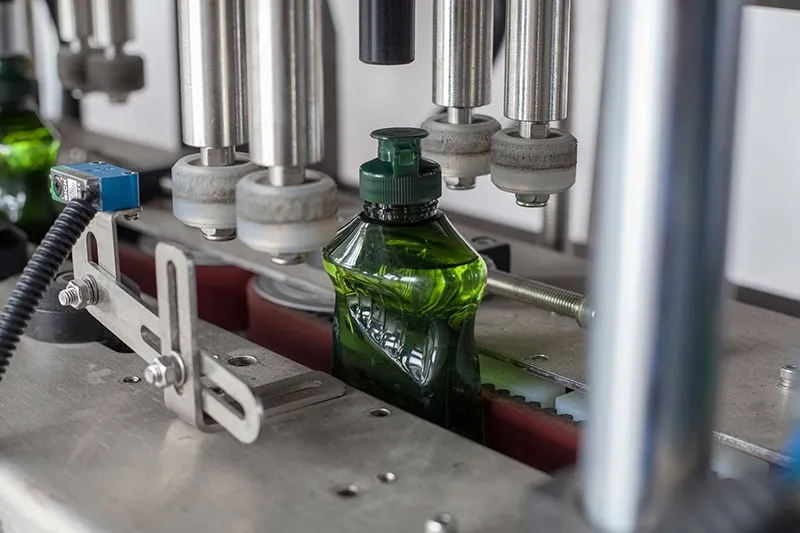

4. The automatic cap feeder and capping machine complete cap sorting, cap placement and bottle capping with less manual handling.

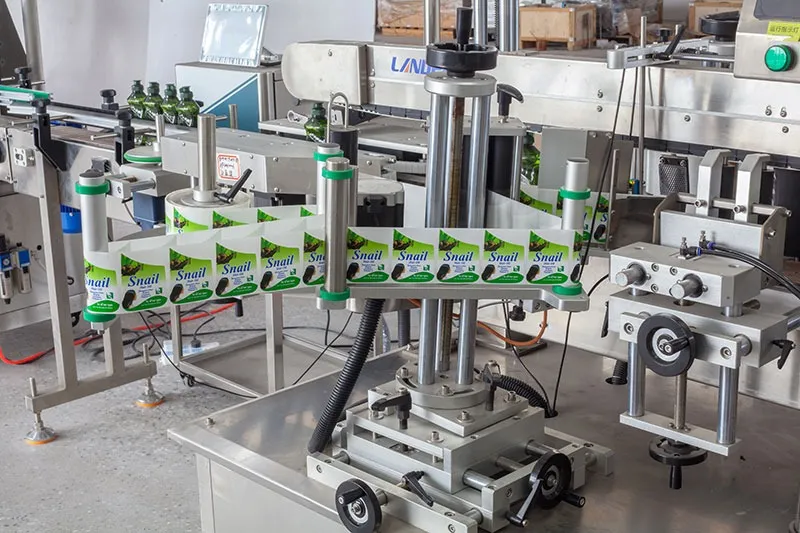

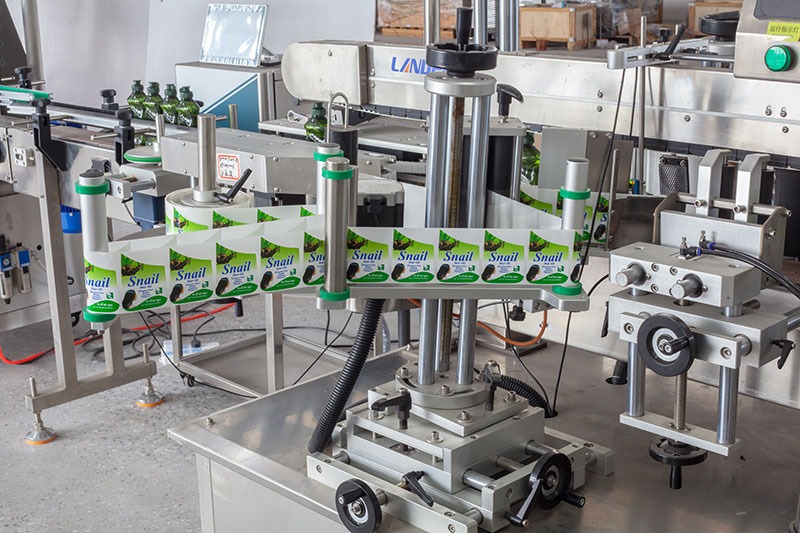

5. The double-sided labeling machine can apply labels to round bottles, square bottles and other compatible bottle shapes.
6. The inkjet printer can print production dates, batch numbers and other coding information on the bottle or label area.
7. A customized direction-changing device guides bottles into the downstream packaging section according to the required layout.
8. The sleeve shrink packing machine wraps grouped bottles with shrink film and applies heat to form compact secondary packaging.
