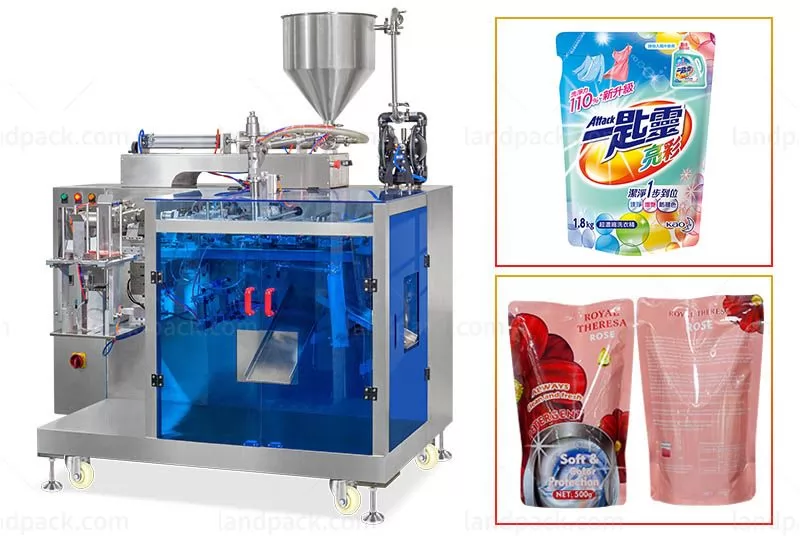

Automatic Liquid Horizontal Pouch Filling Sealing Machine

  • Application
  • Description
  • Parameter
  • Video

Application:

This liquid filling packing machine consists of the liquid pump and the host packing machine. It suitable for kinds of liquid products and can pack different premade bags. It is applied for various kinds of liquid such as honey,milk, oil, ketchup, paste, sauce,fruit  juice, Chilli sauce, Sunflower oil, tomato sauce, laundry liquid, etc.

Kindly Reminder:
We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.

Packing Exambers:Automatic Liquid Horizontal Pouch Filling Sealing Machine

Different machine models available to meet a wide range premade bag size.

Customized main machine structure for various kinds of bag shape. Like doypack zipper bag, 4 side seal bag, stand up bag and irregular bag, ect.

With upgrade PLC control system, easy for operation on touch screen of parameter setting.

Machine machine can equipment with different metering system like weigher, liquid pump, auger filler, bucket chain for different kinds of product filling and packing in premade bag.

ModelLD-160LLD-210L
Pouch Size (mm)110-230mm*80-160mm(L*M)110-210mm*110-300mm(L*M)
Packing Capacity20-45 Bags/min10-45 Bags/min
Filling Range10-100ml10-1000ml
Power3N/380V3N/380V
Machine Size1750*1280*13602140*1366*1360
CollocationLiquid metering pump
Machine Weight800kg900kg

After receiving your inquiry,We will send you the quotation as soon as possible.
