Automatic Liquid Mini Doypack Packaging Machine

  • Application
  • Description
  • Parameter
  • Video

Application:

Automatic liquid doypack packaging machine. It suitable for Liquid: Detergent, fruit juice, miller wine, soy sauce, popsicle, vinegar, drinks etc. Thick liquid: Chilli sauce, Sunflower oil, tomato sauce, peanut butter, jam, laundry detergent, bean sauce etc.

Kindly Reminder:
We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.

Packing Exambers:Automatic Liquid Mini Doypack Packaging Machine



Machine is specially developed for all kinds of composite composite pre-made bags.

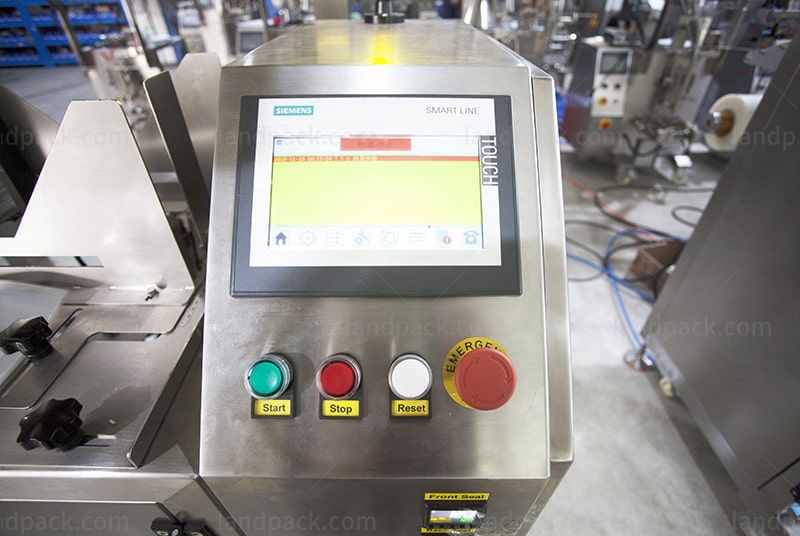

PLC&HMI Control, Easy for parameter setting and troubleshooting.

Intelligent temperature controlling configuration, ensure the artistic and neat sealing.

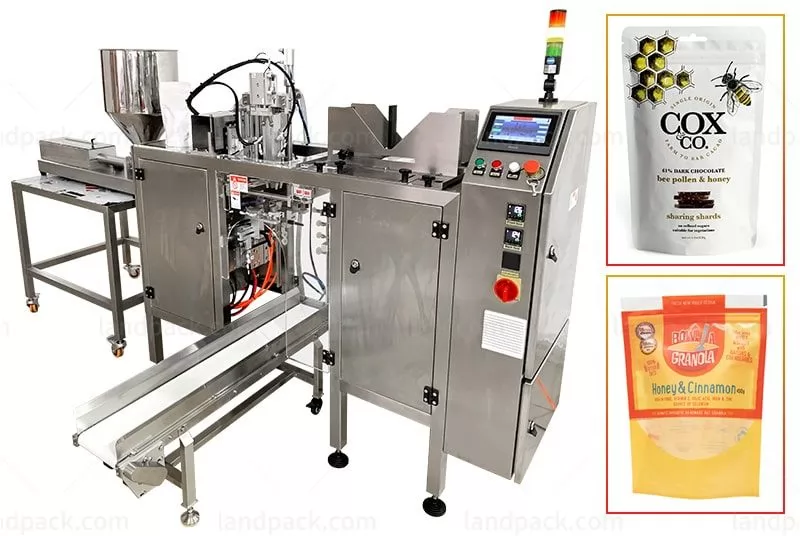

Miniweigh Auger Filler+Mini Doypack Machine Packing Line Units included easy-dismantle screw conveyor, auger filler, gantry, mini doypack machine and output conveyor, etc;

This is new popular packing line for the liquid in the market, which can auto finish material feeding, weighing, premade pouch pick-up, open, fill and seal, etc;

Premade pouch can be Nozzle bag, 3-side-seal, gussette pouch, standup pouch with zipper or no-zip-lock. Ideal choice for laundry detergent, sauce, rice vinegar, fruit juice, beverage, tomato sauce, peanut butter, jam, paste, etc.


ModelLD-300L/LD--430L
Bag MaterialMultilayer Composite Premade Bag(e.g.: PET/PE)
Bag Type3 Side Seal Bag, Stand-up Bag, Pre-made bag
Speed10~15bags/min
Upgradable Bag TypeGusset Bag, Zipper Bag, Flat Bottom Pouch (Need additional purchase of functional device)
Sealing TypeStraight grain, pitch is 1mm (Optional reticulate)
Sealing Width10mm (5--20mm can be customized)
Voltage220V, Single-phase, 50/60HZ, 1.2KW
Package AccuracyError≤±1%
Compress Air Requirement≥0.8m³/min supply by user

After receiving your inquiry,We will send you the quotation as soon as possible.
