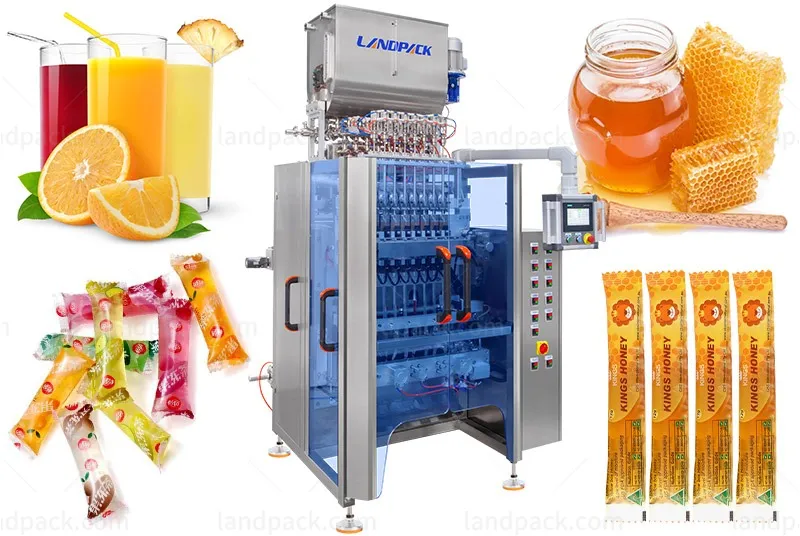

Automatic Multi Lane Liquid Stick Pack Packaging Machine

Application:
This multi-Lane Liquid packaging machine is designed for stick pack packaging of liquid jelly, fruit jelly, honey, syrup, jam, chocolate sauce, flavored toppings, concentrated juice, drink additives and nutritional liquids. and other liquid or semi-liquid products.

Package Type:

The multi-Lane Liquid packaging machine is suitable for producing stick packs, strip sachets, linked sachets, perforated sachets and multi-pack sachet strips. It supports both single-cut and continuous-cut formats and can handle various laminated packaging films for retail, promotional and single-serving applications.

Workflow:

Film Unwinding → Multi-Lane Forming → Liquid Filling → Heat Sealing → Date Coding → Cutting → Finished Stick Pack Collection

Machine Structure Overview:
1. Hopper  2. 8 Row Filling Device  3. Packing Machine  4. Control Panel  5. Electric Box

Feature:

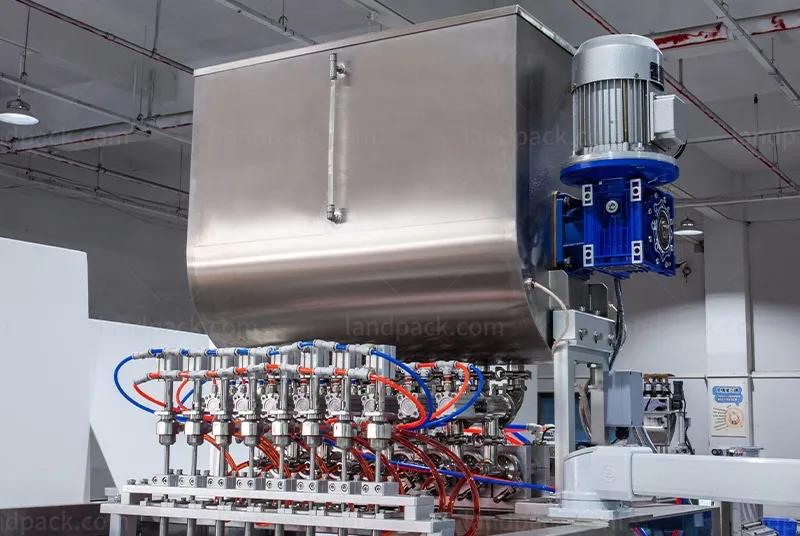

1. Servo-driven piston filling system ensures accurate dosing and stable operation.

2. 8-lane design delivers high output, making it ideal for large-scale production.

3. Supports liquid jelly, fruit jelly, syrup, honey and other viscous liquid products.

4. Multiple sealing patterns available, including diamond, straight line, mesh and serrated seals.

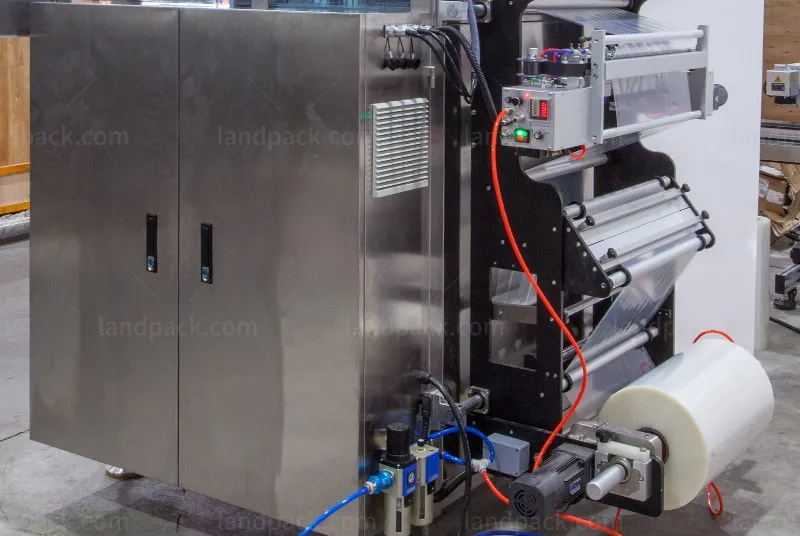

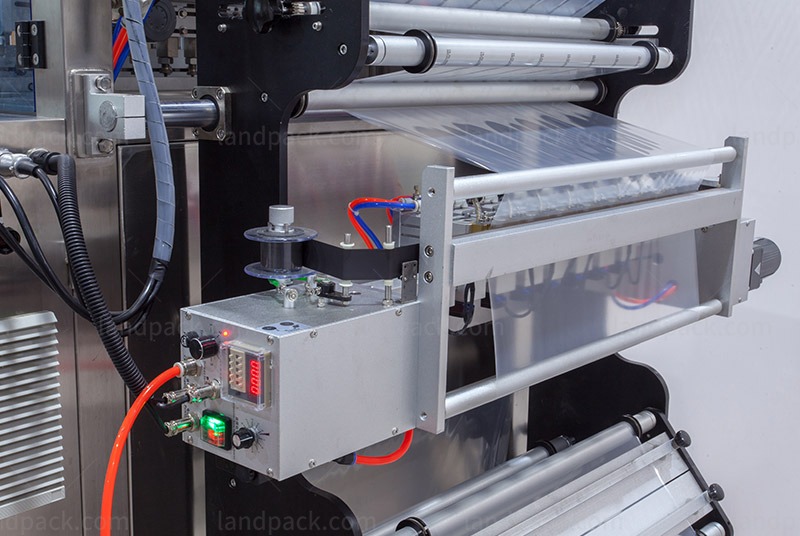

5. Advanced film pulling and photoelectric tracking system ensure consistent bag length and neat sealing.

6. Precision CNC-machined bag former reduces film deviation and improves pouch appearance.

7. CE-certified machine with multilingual touch screen for global market requirements.

8. One-click recipe storage and switching allow fast changeover between different products and packaging specifications.
