Automatic Secondary Feeding Weighing Packing Machine Suitable For Low-Rise Workshops

  • Application
  • Description
  • Parameter
  • Video

Application:
Automatic secondary feeding weighing packing machine suitable for low-rise workshops, Suitable for materials with high viscosity and with much oil, it easy to stick material such as vegetable salad, frozen meat, spicy fish, sauce duck, etc..

Kindly Reminder:
We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.

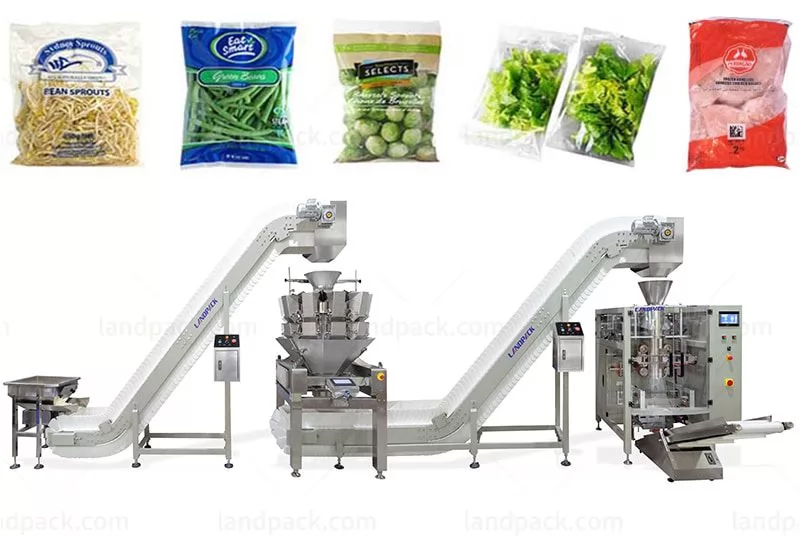

Packing Exambers:    Vegetable Salad Lettuce Packing Machine with Multi Head Weigher

  · It completes bagging, filling, sealing, date printing, punching, counting automatically, saving labor and time

  · Computer control and English-Chinese touch screen for easy operation without stopping the unit.

  · Intelligent PID temperature controller for easy adjustment and good application to various laminated film and paper.

  · Packaging diversification, such as back-seal bag, side gusseted bag, linked bag, hole punched bag etc.

  · Full automation from bag making, measuring, filling, sealing, counting and date printing.

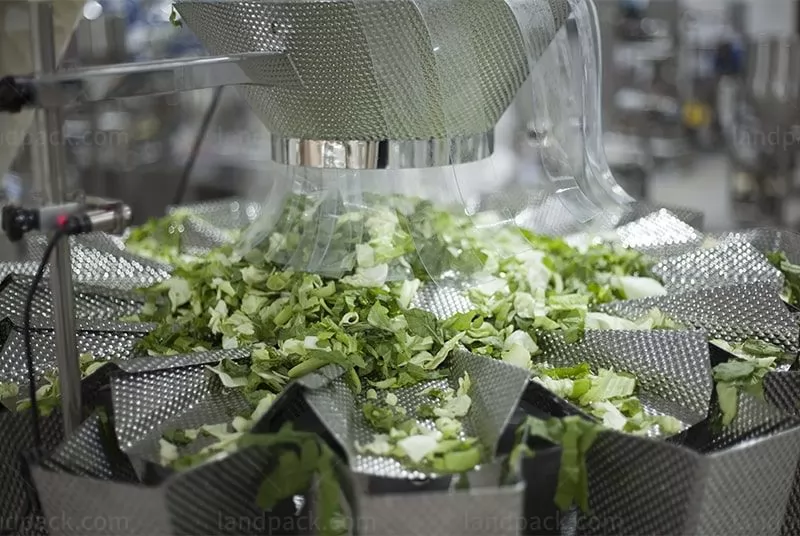

  · Multi-heads scale filling system for filling accuracy and good application to various kinds of products.


ModelLD-420LD-520LD-720
Film WidthMax.420mmMax.520mmMax.720mm
Bag Length80-300mm80-350mm100-500mm
Bag Width60-200mm100-250mm180-350mm
Roll DiameterMax.320mmMax.320mmMax.320mm
Film Thickness0.04-0.12mm0.04-0.12mm0.04-0.12mm
Packing Speed5-60bag/min5-60bag/min5-55bag/min
Power220V 50/60Hz 2KW220V 50/60Hz 3KW220V 50/60Hz 3KW
Machine Size(L)1217*(W)1015*(H)1343mm(L)1488*(W)1080*(H)1490mm(L)1780*(W)1350*(H)2050mm
Machine WeightAbout 650kgAbout 680kgAbout 750kg
Option DeviceTwo synchronous belt device, air filling device, angle fold device,automatic rectifying device, hole-punching device, link bag device.

After receiving your inquiry,We will send you the quotation as soon as possible.
