Automatic Vertical Form Fill Seal Pouch Packaging Line

  • Application
  • Description
  • Parameter
  • Video

Application:

Suitable For Packing Puffed Food, Potato Chips, Popcorn, Crisps, Snacks, Candy, Biscuit, Sunflower Seed, Pistachio, Peanuts, Chocolate, Nuts, Pet Food, Small Metal Parts And Plastic Parts, Etc.

Kindly Reminder:

We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.

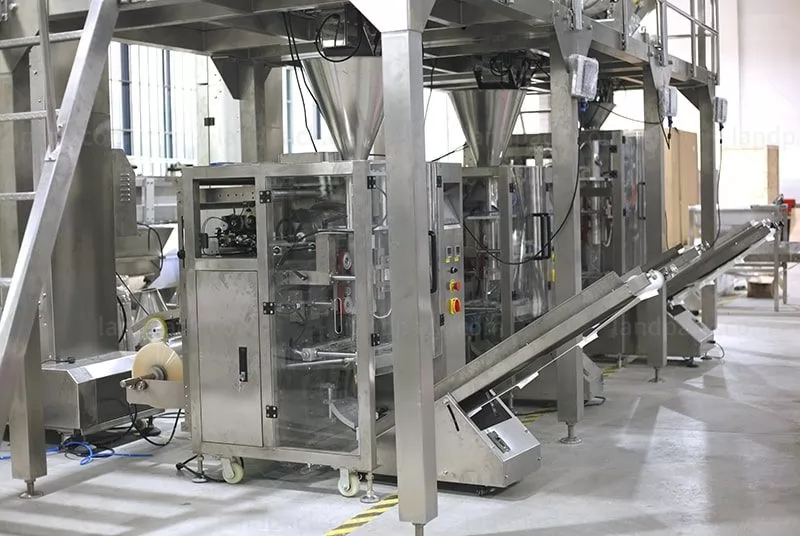

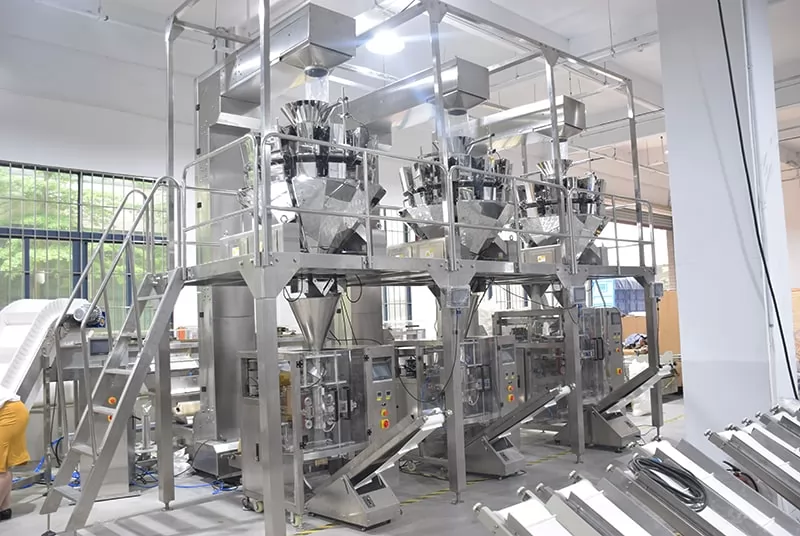

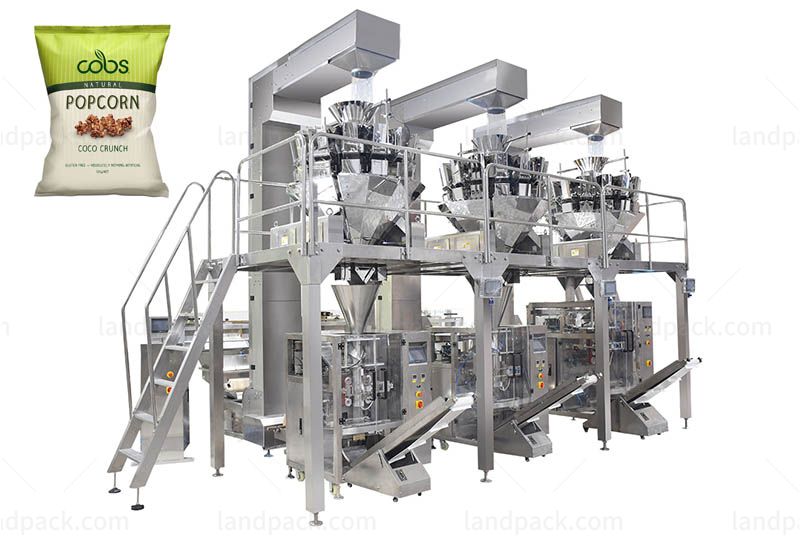

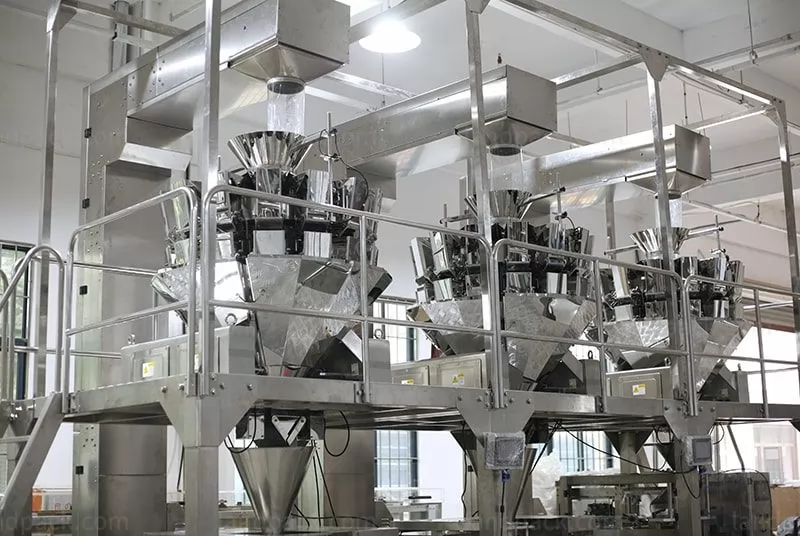

Packing Exambers:Automatic Potato Chips/ Popcorn/ Crisps Vertical Packing Line

This packaging solution is suitable for large production packing.

Economical,save cost,small footprint.

Horizontal rewind conveying the material, with large transportion.

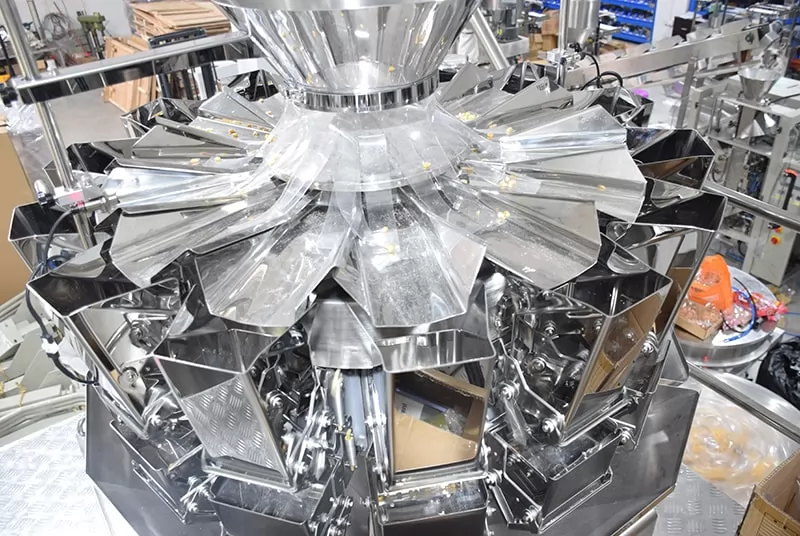

Feeding, Measuring, Bagging, Date printing, Charging(Exhausting) realising fully automation.

Imported PLC control system,colorful touch screen,easy operation, intuitionistic efficient.

Standard positioning with imported servo film transporting system and mark sensor.

With auto warning protection function to minimize loss.

High precision, high efficiency without crash the materials.

Capacity (estimate): Max 90 bags/min / machine according to the bag sizes, it is also affected by the quality of film and bag length.

Accuracy: ≤±1.5%, depending on the measuring equipment & materials

Bag size: (L)50-330mm(W) 50-200mm.

Film width: Max 420mm.

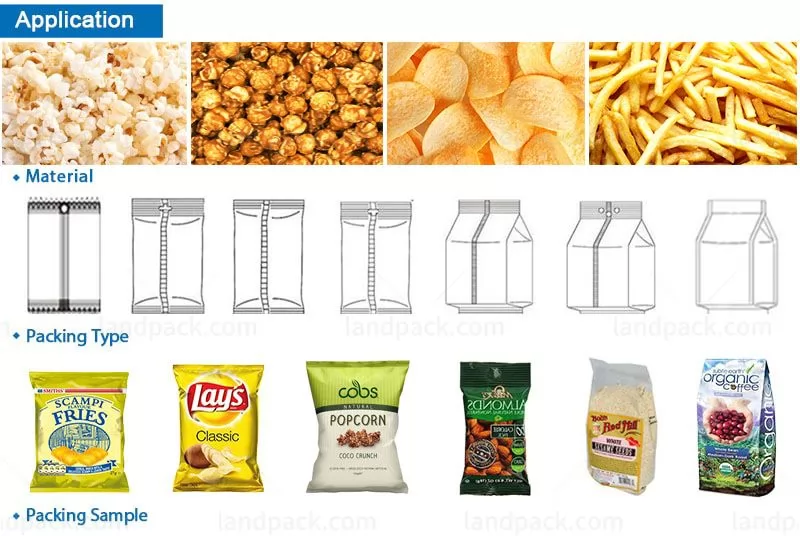

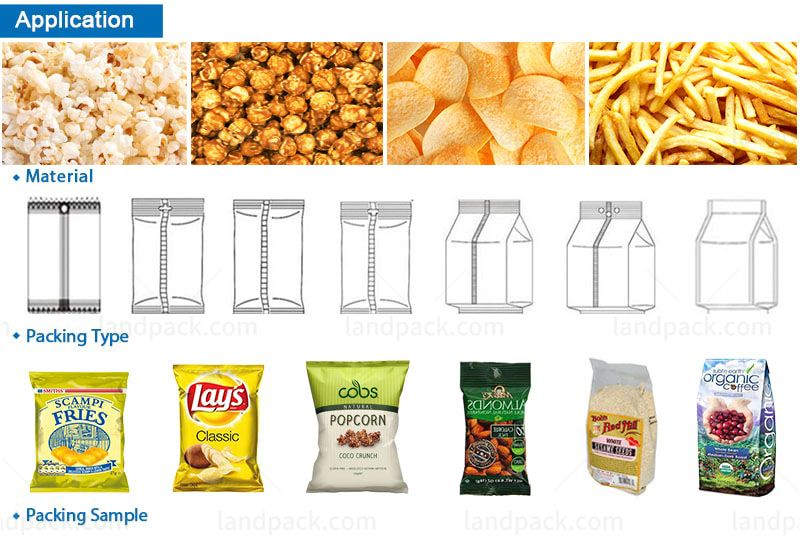

Bag type: Pillow bag,punching hole bag,gusseted bag.

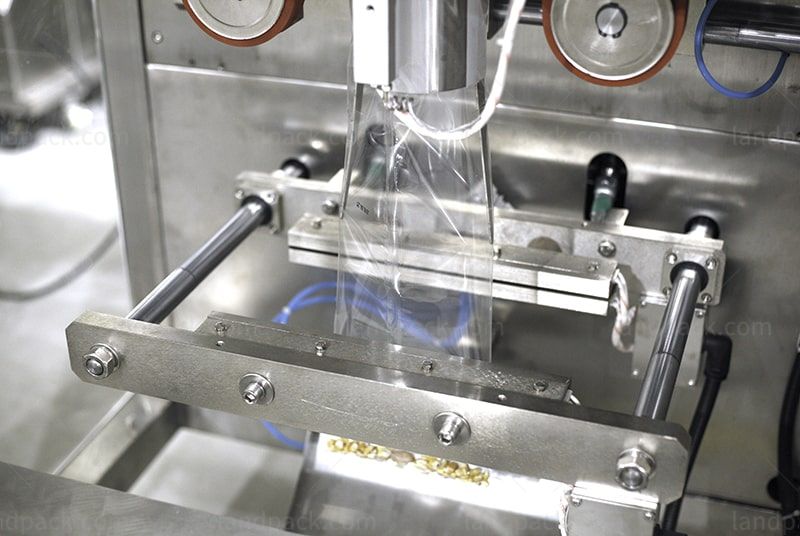

Pulling belt type: Double-belts pulling film.

Filling range: 10-2000ml

Film thickness: 0.04-0.09mm

Film material: BOPP/VMCPP,PET/PE,BOPP/CPP, PET/AL/PE etc.

Air consumption: 0.8Mpa 0.3m³/min.

Total power: 30 KW (depend on the specific circumstances.)

Voltage: Single phase220V, three phase380V, 50HZ (depend on the customer’s country)

Air compressor: Not less than 1 CBM.

After receiving your inquiry,We will send you the quotation as soon as possible.
