Application:
Suitable for filling granular products such as nuts, popcorn, potato chips, dog food, cat food, pet food, puffed food, peanuts, beans, capsules, tablets ect.
It can be equipped with linear scales, measuring cups, multi-head scales, aluminum foil sealing machines, labeling machines, laser coding machines, etc. to form a packaging line according to customer needs.
Kindly Reminder:
We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.
Packing Exambers:
1. Using touch screen and PLC human-machine intelligent interaction system to realize fully automated production;
2. Unique and beautiful appearance, using 304 stainless steel;
3. It can be used with bottle unscrambler, capping machine, labeling machine and other equipment to form a fully automatic production line.

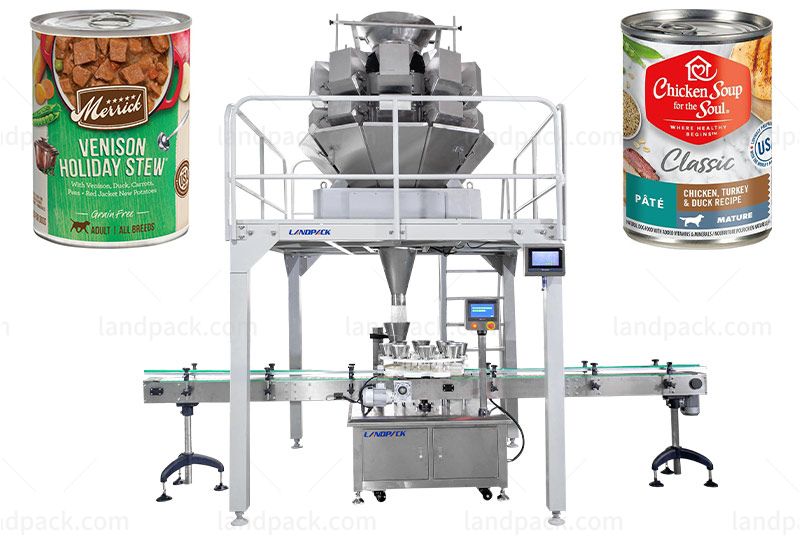

| Model | LFZP-008A |
| Speed | 15-30pcs/min |
| Bottle diameter | Φ30mm-Φ135mm (customizable) |
| Bottle height | 40mm-200mm (customizable) |
| Control system | PLC |
| Power supply | 220V、50Hz |
| Airconsumption | 0 |
| Dimension | 2000mm*900mm*1400mm(L*W*H) |
| Equipment Material | 304 |
| Weight | 200KG |
| Description of main packaging process | Bottle feeding-weighing-unloading-bottle out |
| Main applicable functions | Suitable for weighing and filling all kinds of fragile and breakable materials, such as laundry capsule, laundry gel, laundry pod, laundry tablets etc. |
| Filling containers: bottles; plastic cans; glass cans; tinplate cans; cartons, etc. | |
| Main electrical configuration and brand | PLC-Panasonic (Japan); Inverter-Panasonic (Japan); Touch screen-Weinen (China Taiwan); |
After receiving your inquiry,We will send you the quotation as soon as possible.
