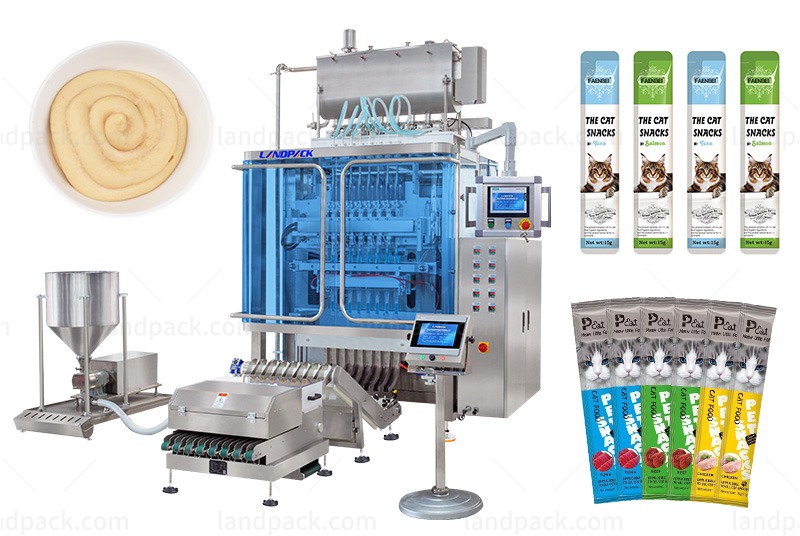

Multi Lane Pet Food Cat Strip Stick Packing Machine With Weighing And Rejection System

Application:
Multilane pet food cat strip stick packing machine is suitable for liquid products such as cat strips, meat paste, mouthwash, ketchup, flavoring, sauce, pasty, shampoo, syrups, salad dressing, cream, body wash liquid, etc.

Suitable Package:
3/4 side seal bag, stick bag, sachet, etc.

Kindly Reminder:
We have an experienced team of R&D engineers who can customize packaging solutions according to your product characteristics.

Packing Exambers:

1. 100L Storage Tank with Rotor Pump – Efficient feeding of raw materials with stable flow.

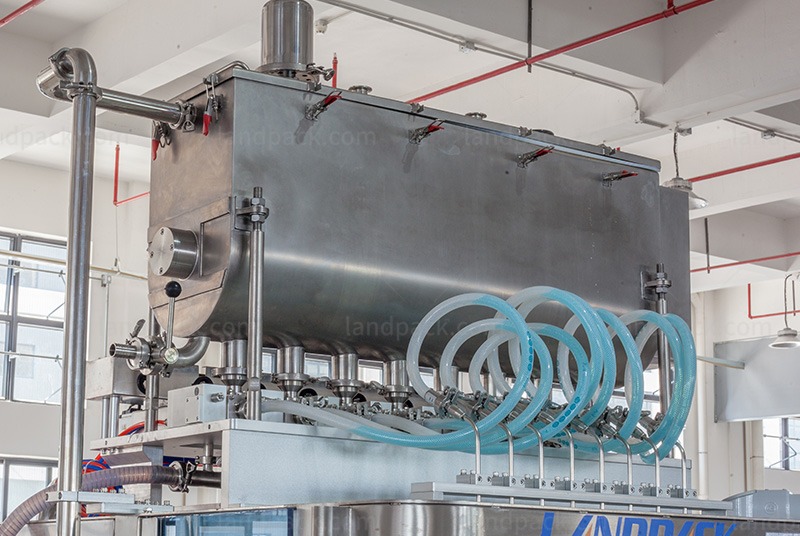

2. Upper Storage Hopper with Built-in CIP Cleaning System with High Pressure Spray Head for the Cleaning

3. Stirring Hopper – Ensures consistent mixing of material before filling.

4. Servo-Driven Ceramic Pump – Precise dosing for 15g cat treats, easily adjustable.

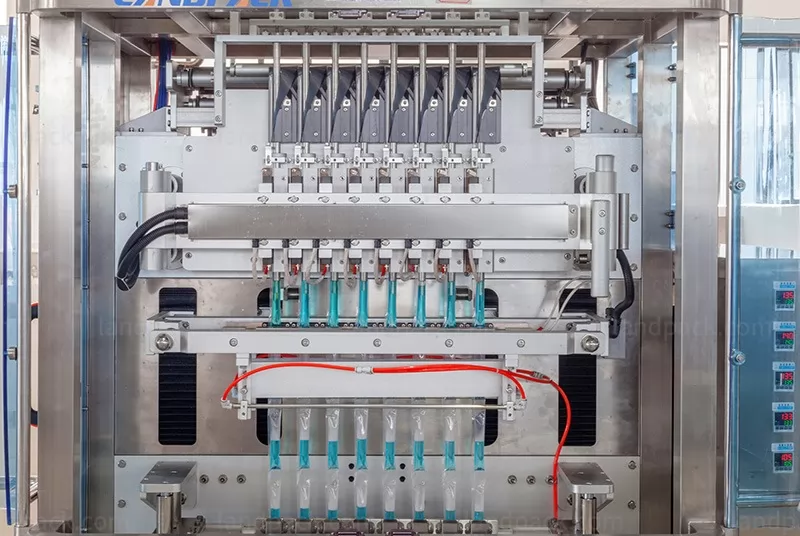

5. Teflon-Coated 3-Side Sealing – Smooth bag forming and reduced sticking during sealing.

6. V-Type Easy Tear & Round Cutting – Improves bag aesthetics and consumer convenience.

7. Dual Laser Date Printers – Clear, long-lasting printing of production and expiry dates.

8. Cooling Air Blow During Sealing – Prevents bag deformation after high-temperature sealing.

9. Finished Product Conveyor – Automated delivery of sealed pouches for downstream packing.

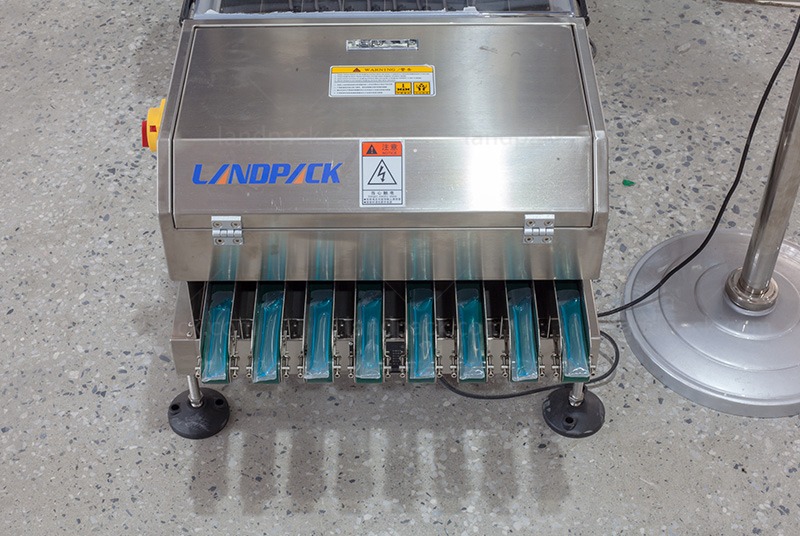

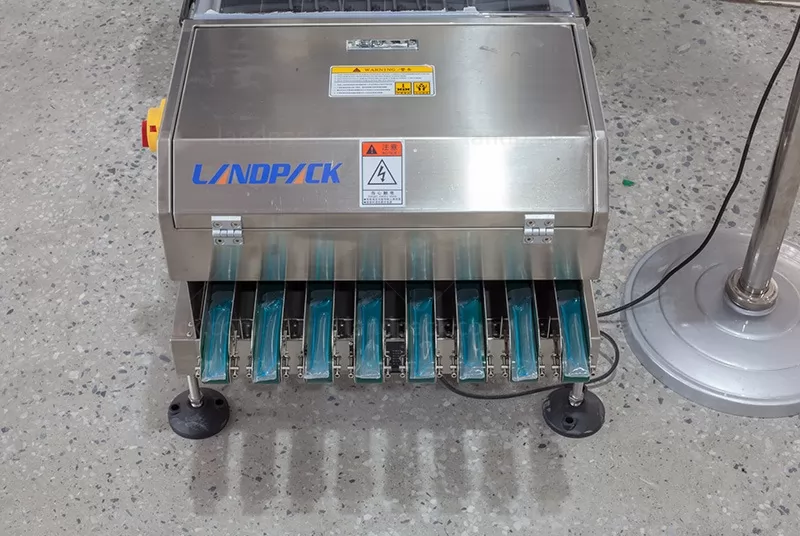

10. 8-Lane Auto Weighing System – Rejects overweight or underweight sachets to ensure accuracy.

Workflow:
1. CIP cleaning
2. 2 sets of UV laser printers
3. Fully automatic weighing and rejection system
4. Servo ceramic pump metering system
5. Reinforced frame structure
6. Contact Part SS304 Suitable for the GMP and food Grade Level.
7. With Siemens PLC+Touch Screen ,human friendly interface.
8. Bag length can be adjustable on the Touch screen Max 160mm.
