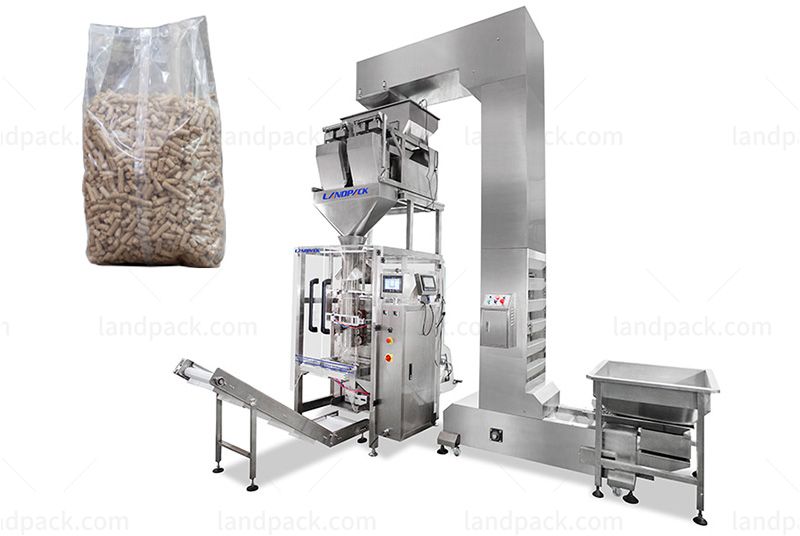

LD-720AS Automatic Packing Machine For Pet Food, Beans, Nuts, Cat Litter Etc.

  • Application
  • Description
  • Parameter
  • Video

Application:

Suitable for the weighing and packaging of various granular products, such as cat litter, rice, sugar, beans, dog food, pet food, etc.

Kindly Reminder:

We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.

Packing Exambers:LD-720AS Automatic Packing Machine For Pet Food, Beans, Nuts, Cat Litter Etc.

1. Multi-head combined weigher, improve metering speed and accuracy.

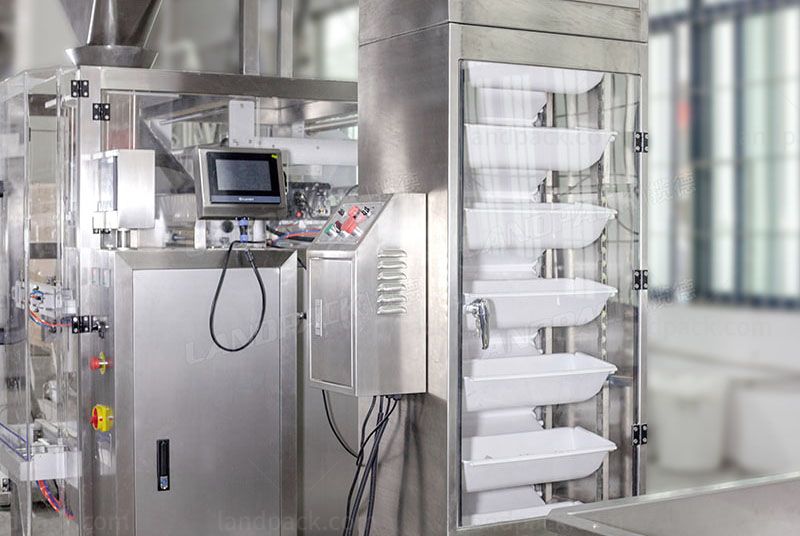

2. 7inch touch screen, easy operation and multiple language for choice.

3. Imported PLC system, machine performance is stable and easy for parameters adjusting.

4. With a memory function for storage ten sets of parameters. Easy to change packing product.

5. Separate PID temperature controller, suitable for various packing materials.

6. Multi-union roll film pulling system make film running more smooth.

7. Adopt double servo film-dragging structure, enable stable bag forming for perfect bag shape.

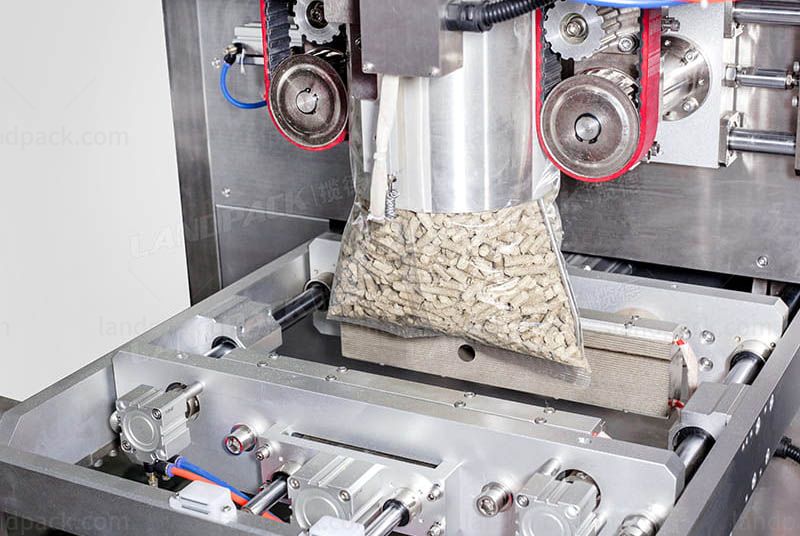

8. Sophisticated sealing framework achieve the consistency of bag sealing and cutting.

9. Machine automatically finish the process of filling, metering, bag forming, date printing, sealing and packing.

10.Low loss, labor saving, easy for operation and maintenance.

11. Skeleton hoist, easy to disassemble, more stable when running heavy materials;

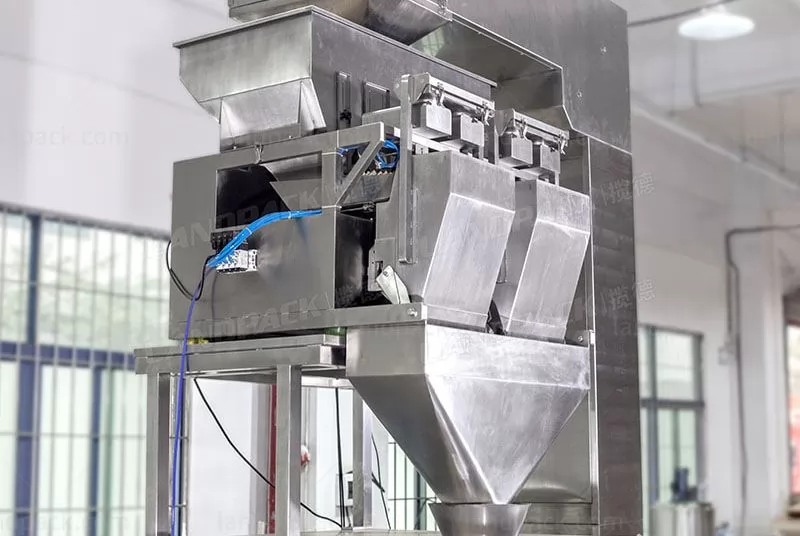

12. Equipped with two linear scales for accurate weighing and measurement;

13. Transparent visible window, safer and healthier;


ModelLD-420LD-520LD-720LD-900LD-1050LD-1200
Film Thickness0.04-0.08mm0.04-0.12mm0.04-0.12mm0.04-0.12mm0.04-0.12mm0.04-0.12mm
Bag Length80-300mm80-350mm100-500mm100-600mm100-800mm100-1000mm
Bag Width60-200mm100-250mm180-350mm260-430mm290-505mm290-580mm
Film Roll DiameterMax.320mmMax.320mmMax.320mm400mm400mm400mm
Pakaging Rate5-60bag/min5-60bag/min5-55bag/min5-20bag/min5-20bag/min5-20bag/min
Film WidthMax.420mmMax.520mmMax.720mmMax.900mmMax.900mmMax.1200mm
Measurement Range150-1500ml5-2000ml4000ml1-25L1-25L1.5L-45L

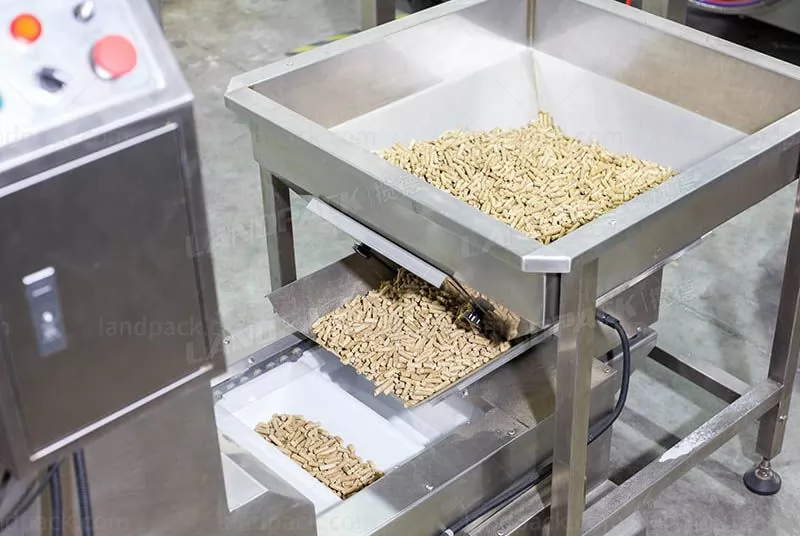

Options1. LD series main frame; 2.Multi-heads liner weigher; 3. Z type bucket elevator; 4. Vibration feeder; 5.Supporting platform; 6. Product conveyor

After receiving your inquiry,We will send you the quotation as soon as possible.
