Application:

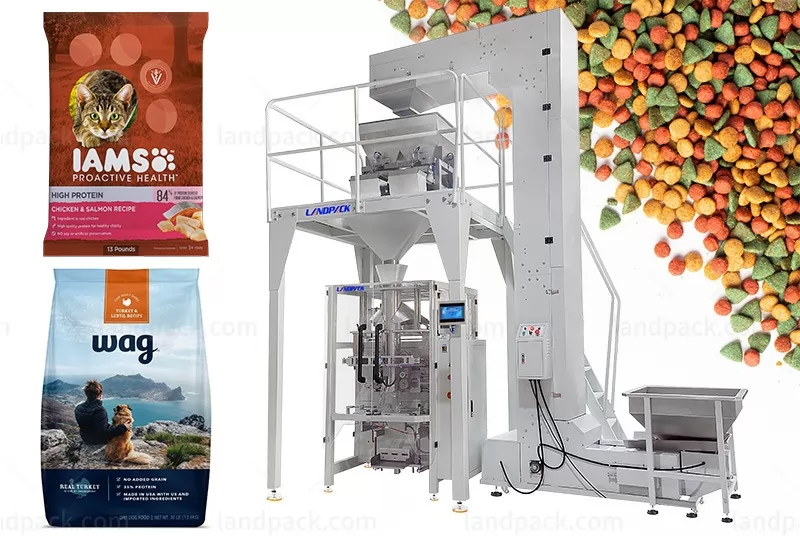

The 1–5 kg pet food dog treats vertical packaging machine is suitable for packaging dry and granular pet foods like dog treats, dog kibble, cat food, fish pellets, and bird seeds, etc.
Kindly Reminder:
We have an experienced team of R&D engineers who can customize packaging solutions according to your product characteristics.
Packing Exambers:
1. Streamlined design enables efficient packaging with minimal operator intervention—ideal for improving productivity.
2. Capable of reaching speeds up to 60 bags per minute, perfect for medium to high output packaging needs.
3. Equipped with globally recognized components for stable performance and extended service life.
4. Uses high-quality materials and engineering to minimize wear and tear, ensuring long-term reliability.
5. Film roll is easy to load, and the machine automatically corrects film alignment for consistent bag formation.
6. User-friendly interface with intelligent software allows easy operation and flexible parameter adjustments.
7. Features dimple plate waterproof design for accurate weighing and reliable performance even in damp conditions.
Workflow:

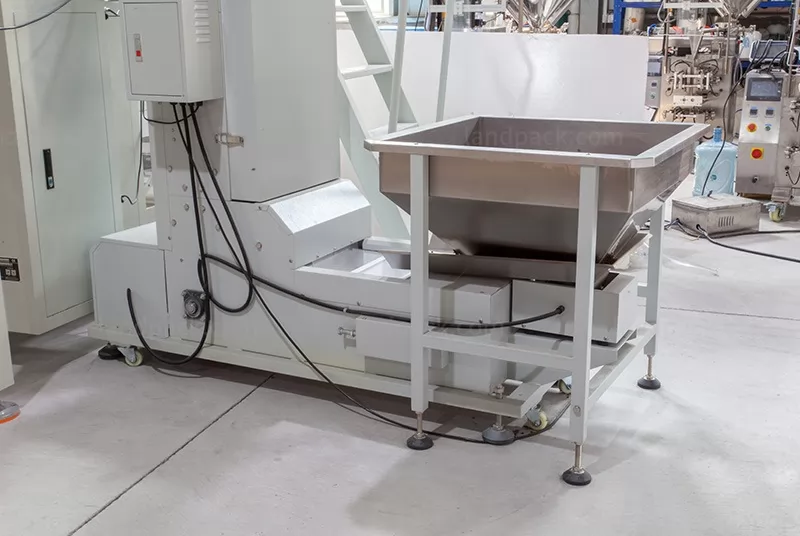

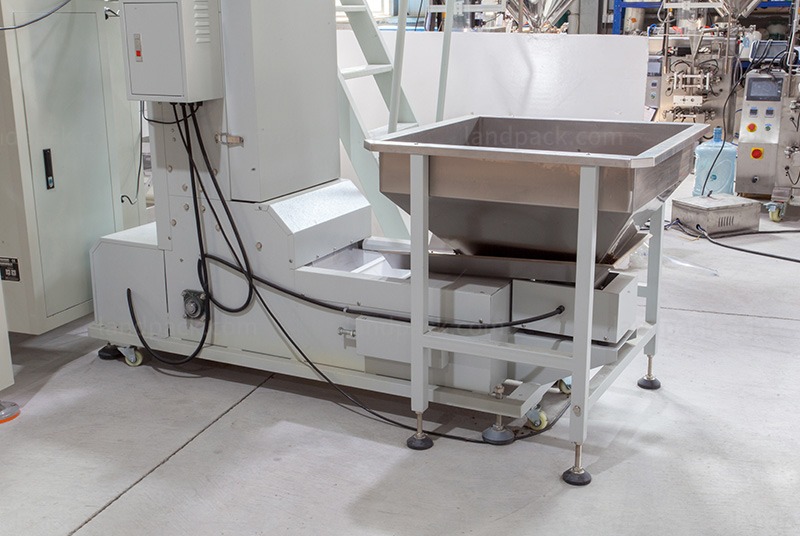

1. Feeding the Dog Food in the Z type Storage Hopper

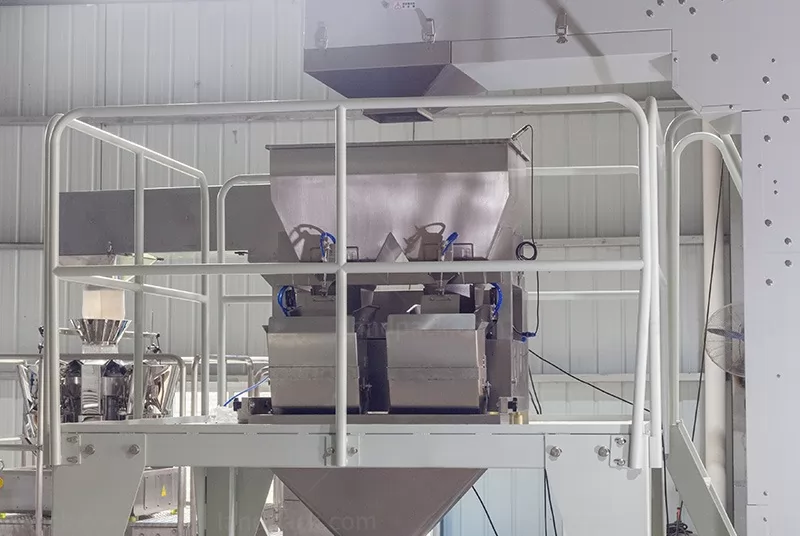

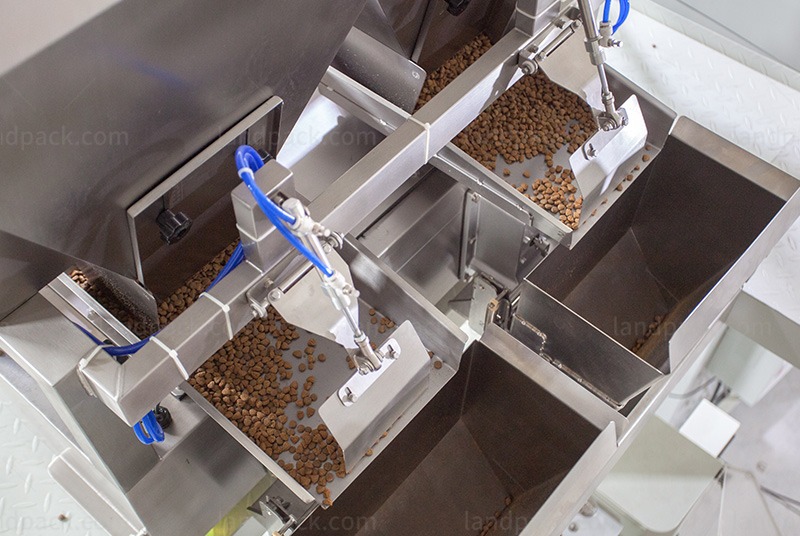

2. 2 Linear Scale Weigher 12L with Vibration Hopper Dimple Plate for automatic Weighing
3. Main Packer with Bag former for Bag Forming and Sealing the bag
4. Ribbon Date Printer for batch No.Exp Date ,MFD
Model | LD-420 | LD-520 | LD-720 | LD-900 | LD-1050 | LD-1200 |
Film Thickness | 0.04-0.08mm | 0.04-0.12mm | 0.04-0.12mm | 0.04-0.12mm | 0.04-0.12mm | 0.04-0.12mm |
Bag Length | 80-300mm | 80-350mm | 100-500mm | 100-600mm | 100-800mm | 100-1000mm |
Bag Width | 60-200mm | 100-250mm | 180-350mm | 260-430mm | 290-505mm | 290-580mm |
Film Roll Diameter | Max.320mm | Max.320mm | Max.320mm | 400mm | 400mm | 400mm |
Pakaging Rate | 5-60 bags/min | 5-60 bags/min | 5-55 bags/min | 5-20 bags/min | 5-20 bags/min | 5-20 bags/min |
Film Width | Max.420mm | Max.520mm | 150-Max.720mm | Max.900mm | Max.900mm | Max.1200mm |
Measurement Range | 150-1500ml | 5-2000ml | 4000ml | 1-25L | 1-25L | 1.5L-45L |
After receiving your inquiry,We will send you the quotation as soon as possible.
