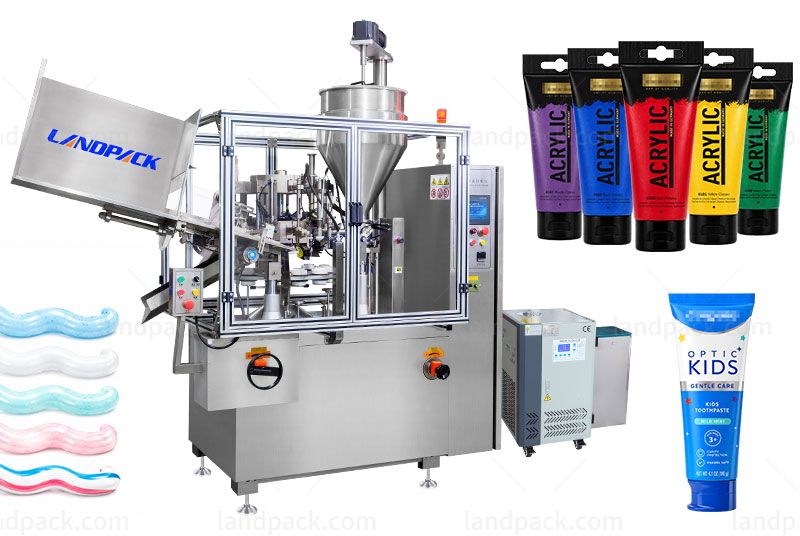

High-Speed Automatic Toothpaste Plastic Tube Filling and Sealing Machine

Application:
This plastic tube filling and sealing machine fills toothpaste, whitening gel, dental cream, cosmetic cream, hand cream, facial cleanser, ointment, gel, and other viscous or semi-viscous products. The machine feeds each tube, checks its orientation, fills the product through a piston system, heats and seals the tail, stamps the date, trims the edge, and sends the finished tube out.

Package Type:
The plastic tube sealing machine handles plastic tubes and laminated tubes in different diameters and lengths. It supports printed tubes with color registration marks, hot-air tail sealing, embossed date or batch codes, and straight trimmed ends. Matching tube holders and filling nozzles allow changes between different tube formats.

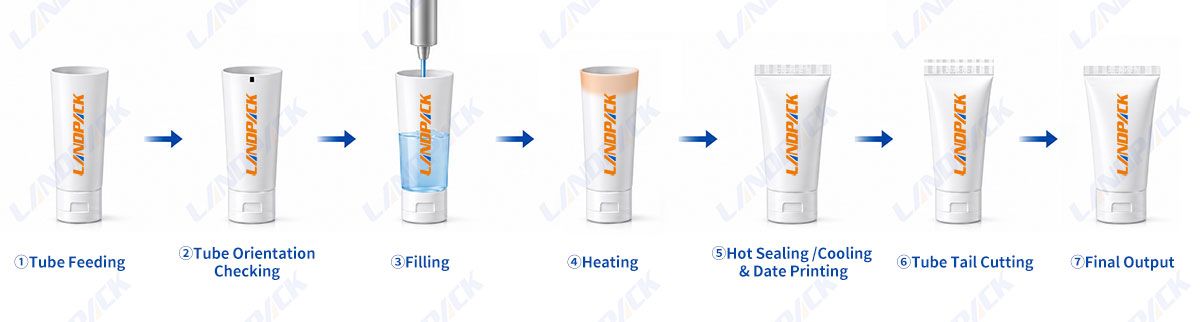

Workflow:
1. Automatic Tube Feeding, 2. Tube Fixing, 3. Color-Mark Positioning, 4. Dust Removal and Inspection, 5. Piston Filling, 6. Hot-Air Heating, 7. Water Cooling, 8. Tail Sealing, 9. Date Stamping, 10. Tail Trimming, 11. Waste Collection, 12. Finished Tube Output

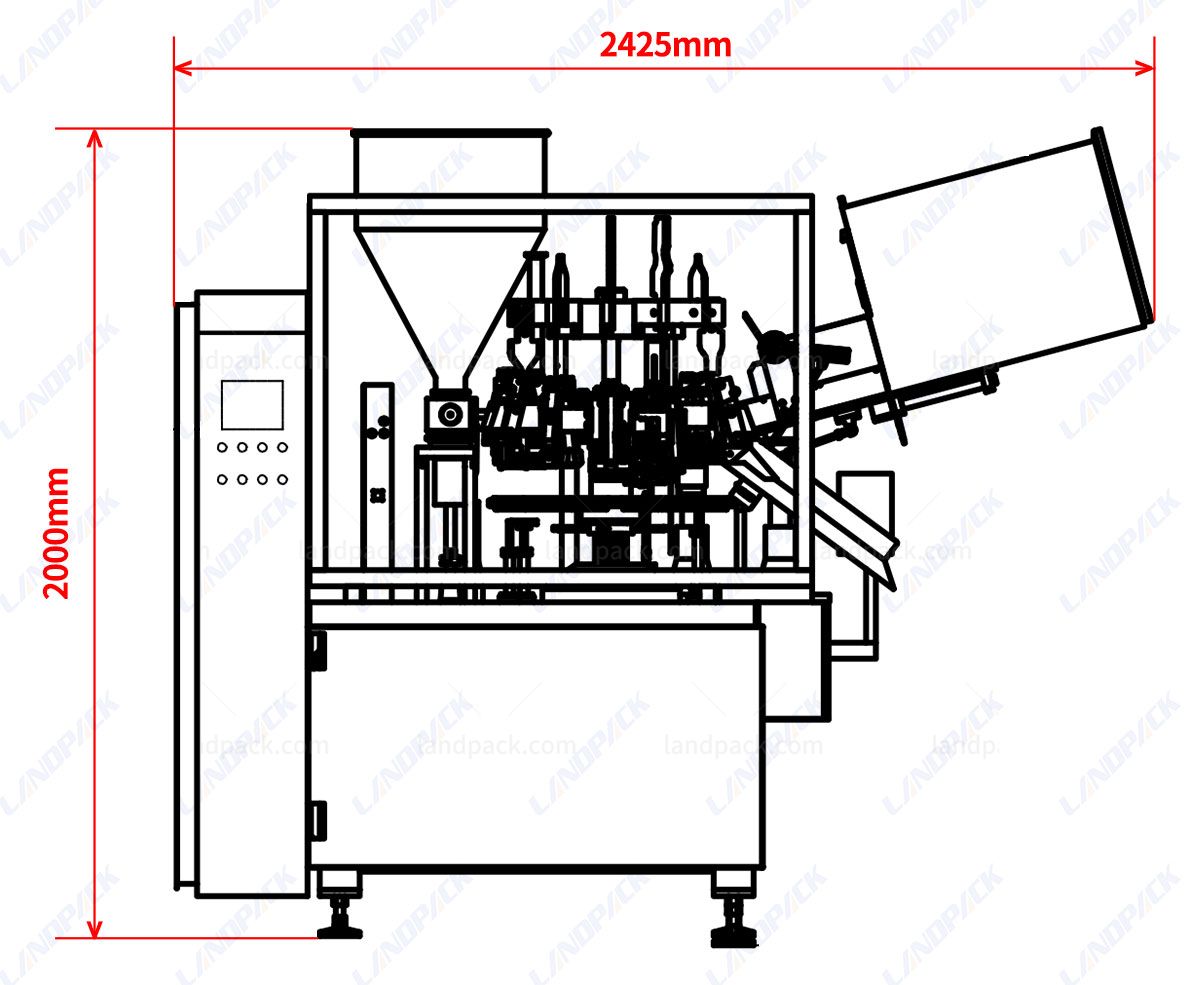

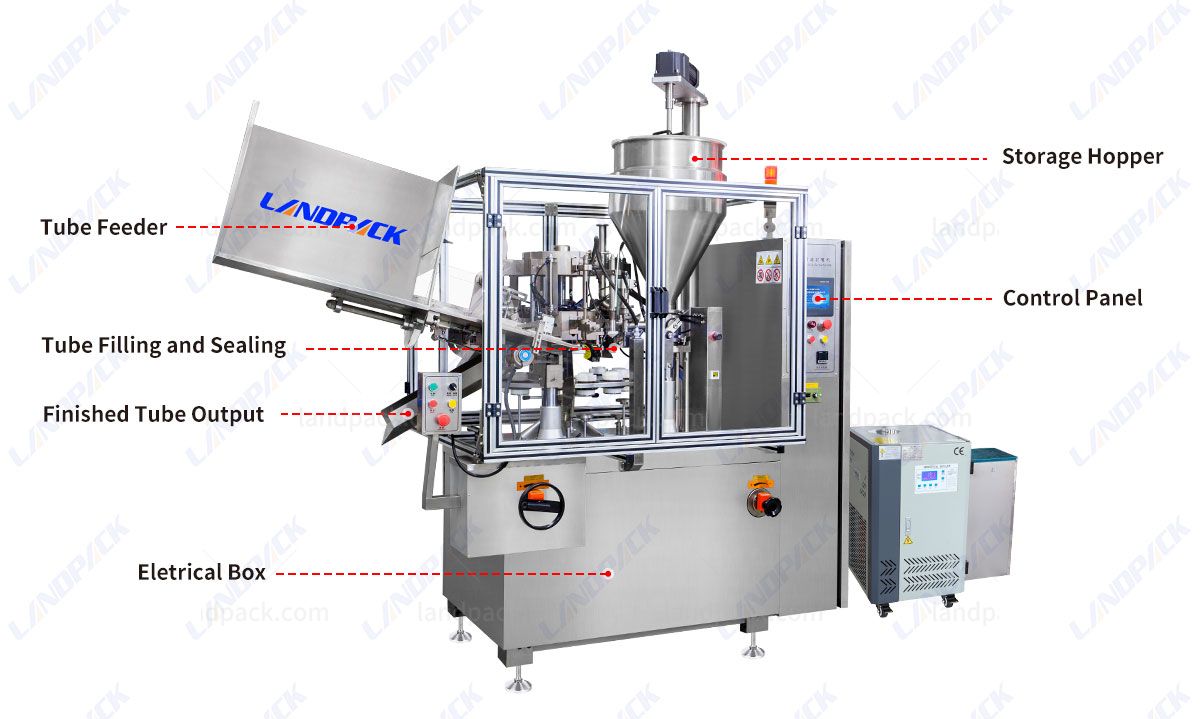

Machine Structures:

Features:

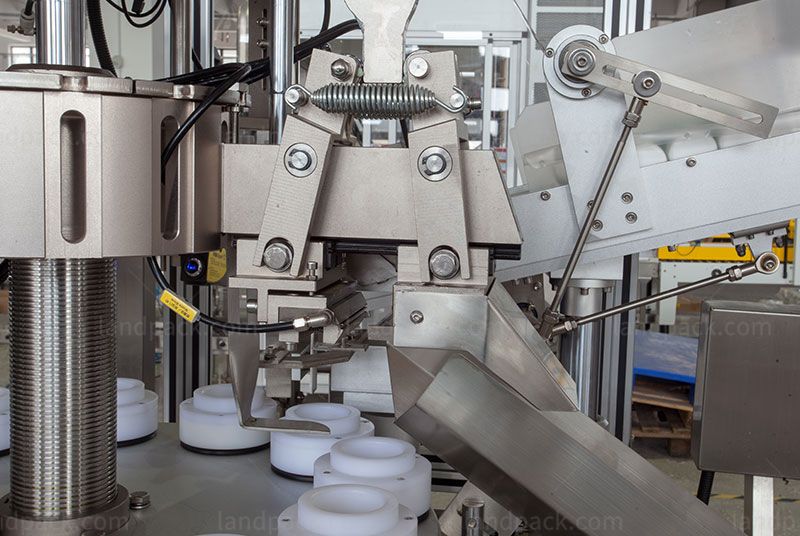

1. Automatic hopper feeds empty toothpaste tubes into the rotary holders
2. Pusher locks each tube in position before orientation and filling
3. Color-mark sensor aligns printed tube graphics before sealing
4. Anti-reverse inspection detects tubes that enter in the wrong direction
5. Dust-removal section clears loose particles before product filling

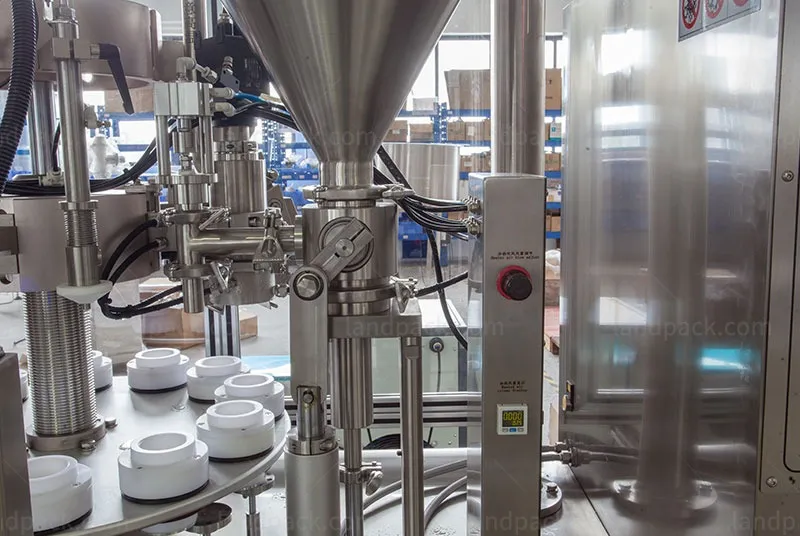

6. Piston pump handles toothpaste and other thick cream or paste products
7. SS316 product-contact parts handle direct contact with the filling material
8. Hot-air heating warms the inner tube wall without heating the full tube body
9. Water chiller cools the sealed tail after heating
10. Date-stamping unit adds batch or production information during the sealing process
11. Tail trimmer cuts the sealed edge to the selected shape and length
12. PLC and touchscreen control filling, tube positioning, heating, sealing, and machine speed
13. No-tube, no-fill control can stop filling when the holder has no tube; Landpack uses this control on related automatic tube machines.
