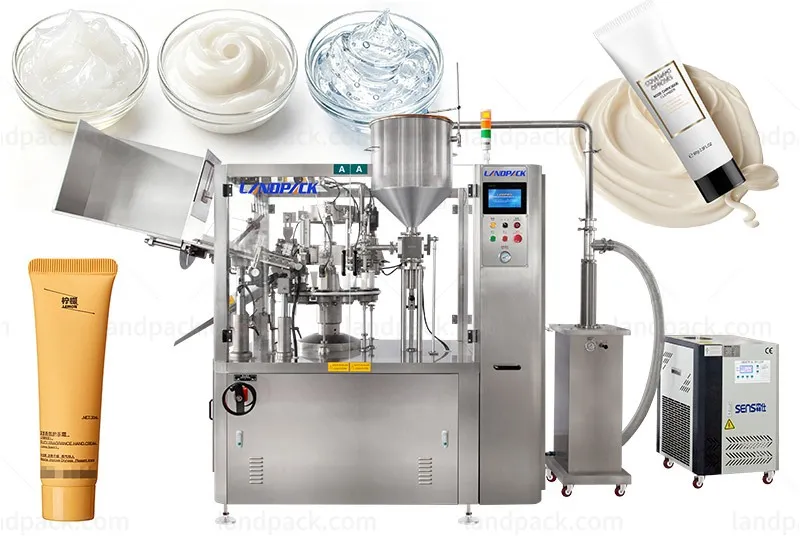

High-Speed Automatic Wall Putty Paint Plastic Tube Filling and Sealing Machine with Chiller

Application:
This plastic tube filling and sealing machine fills wall putty, repair paste, acrylic paint, sealant, adhesive, grease, pigment paste, and other viscous materials. The piston pump handles thick products, while the rotary machine completes tube feeding, orientation, filling, sealing, coding, trimming, and discharge. The plastic tube filler and sealer runs at up to 80 tubes/min, depending on tube size, filling volume, and material viscosity.

Package Type:
The machine handles plastic tubes and laminated plastic tubes in different diameters, lengths, and filling volumes. It supports printed tubes with color marks, hot-air tail sealing, embossed date codes, and trimmed straight tube ends. Matching tube holders and filling nozzles allow format changes for different tube sizes.

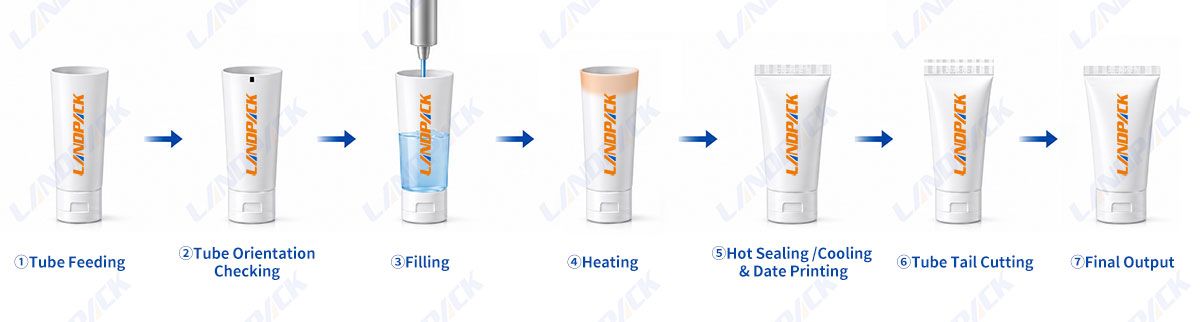

Workflow:
1. Automatic Tube Feeding, 2. Tube Fixing, 3. Color Mark Positioning, 4. Dust Removal and Inspection, 5. Piston Filling, 6. Hot-Air Heating, 7. Water Cooling, 8. Tail Sealing and Date Stamping, 9. Tail Trimming, 10. Waste Collection, 11. Tube Discharge

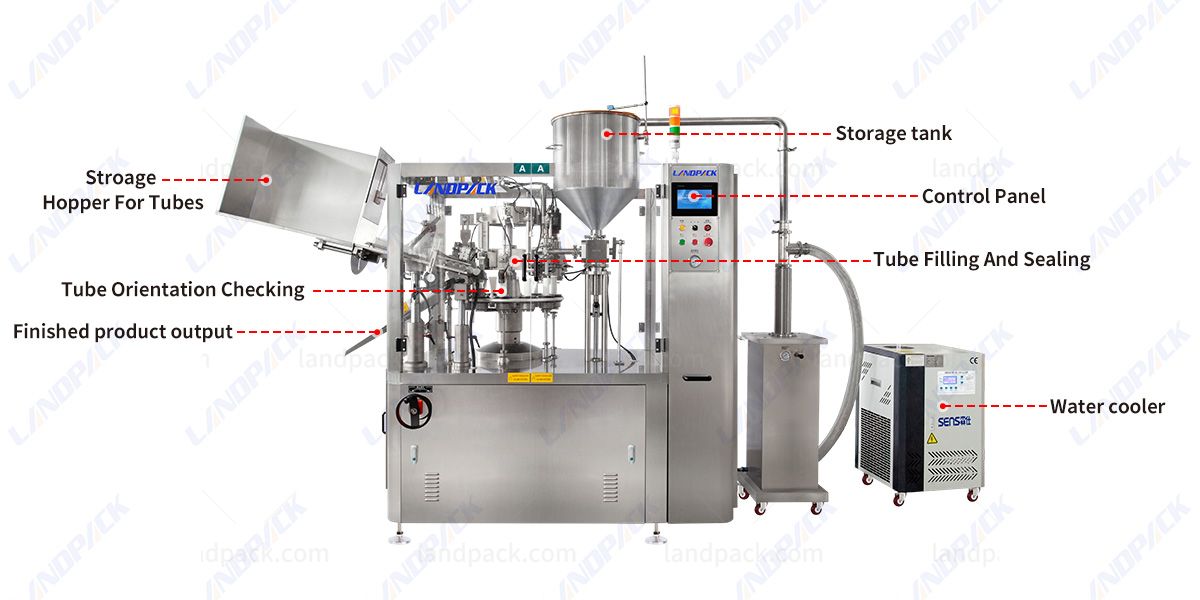

Machine Structures:

Features:

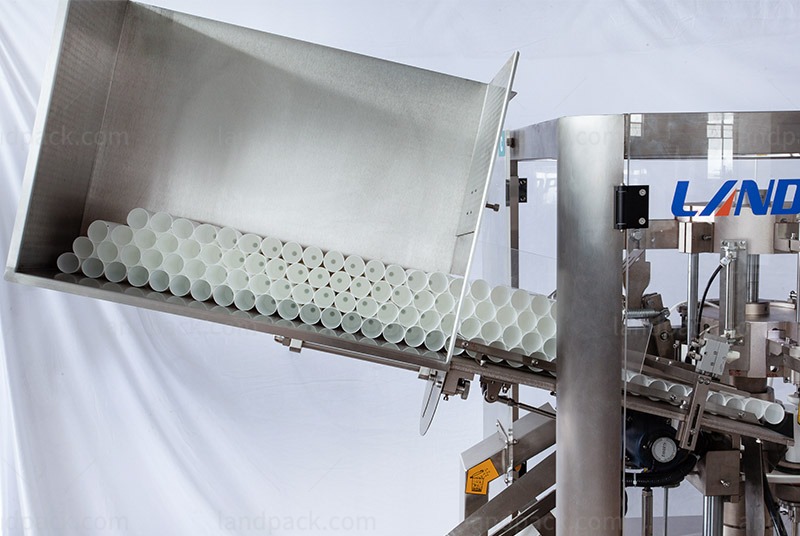

1. Automatic hopper feeds tubes into the rotary holders
2. Tube-positioning unit aligns printed artwork through the color mark sensor
3. Anti-reverse inspection detects incorrectly loaded tubes
4. Dust collection removes particles before filling starts

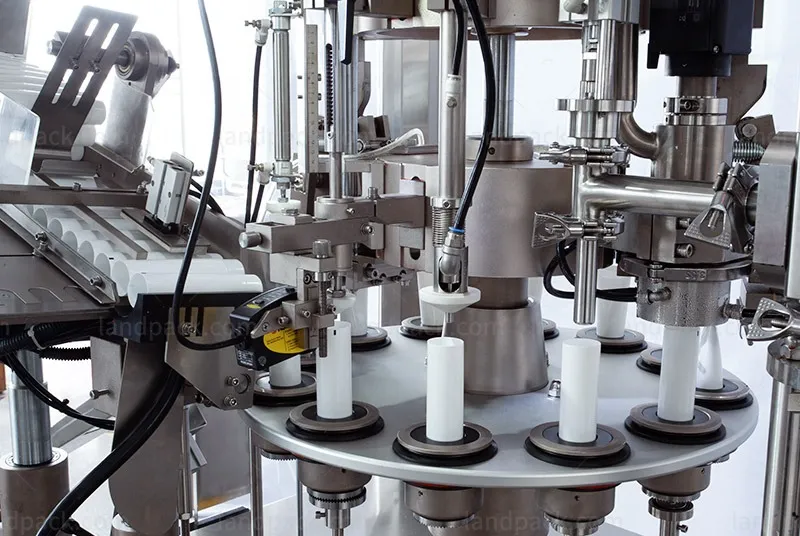

5. Piston pump handles wall putty, paint, paste, and other viscous products
6. SS316 product-contact parts suit chemical and paste filling

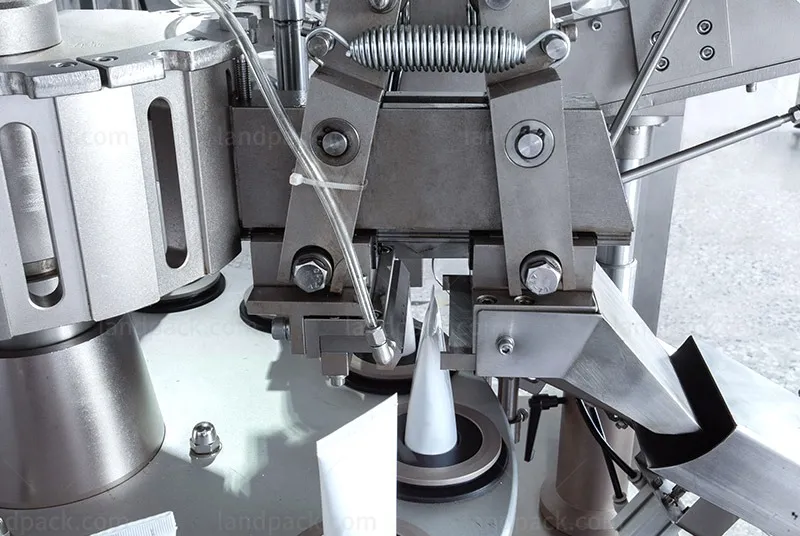

7. Hot-air unit heats the tube wall evenly before sealing
8. Water chiller cools the sealed tail after heating
9. Date-stamping unit adds batch or production information to the tube end
10. Tail trimmer produces a straight and even finished edge
11. Replaceable tube holders support different tube diameters
12. Control panel adjusts filling volume, speed, heating time, and sealing settings
