Application:

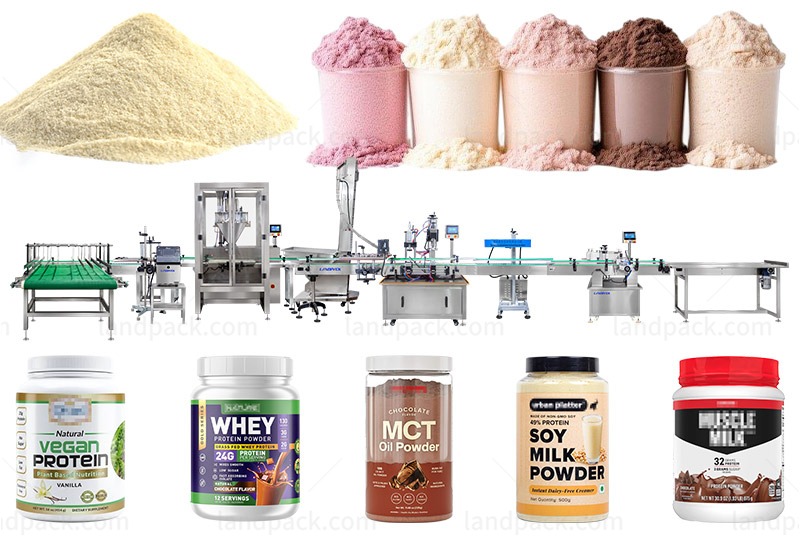

This automatic protein powder filling machine is designed for precise bottle filling, capping, and labeling of powdered products. It is widely used in the nutrition, health supplement, and food industries for packaging protein powder, collagen powder, and similar fine powders, delivering stable performance and hygienic operation at speeds up to 40 bottles/min.
Package Type:
This protein powder filling machine is compatible with a wide range of rigid containers, ensuring stable filling, sealing, and labeling. Such as Plastic bottles (PET, HDPE), and wide-mouth containers, Cylindrical bottles, etc.
Suitable Products:
This protein powder filling machine is suitable for accurate and dust-controlled packaging of various fine and free-flowing powders across food, health, and industrial applications.
- Nutrition & Health Products: Protein powder, whey protein, collagen powder, dietary supplement powder
- Food & Dairy Powders: Milk powder, coffee powder, seasoning powder, spice blends
- Chemical & Industrial Powders: Detergent powder, cleaning additives, chemical agents, industrial additives

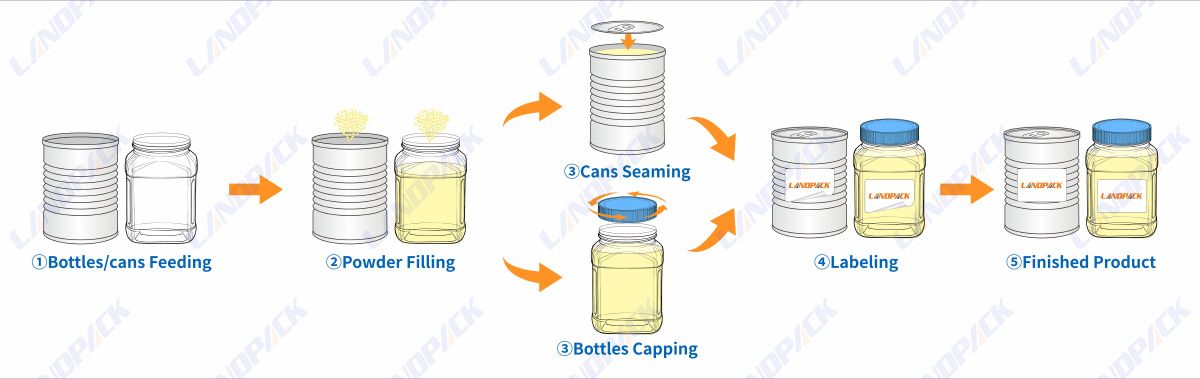

Workflow:
1. Automatic feeding empty bottles
2. Powder filling accurately
3. Bottles capping
4. Round bottles labeling
5. Finished product output and collect

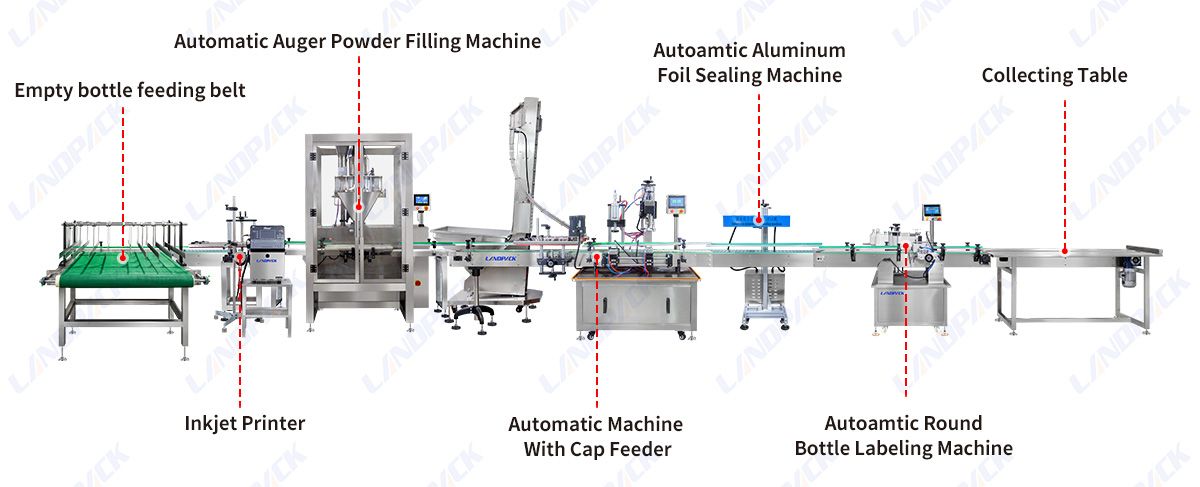

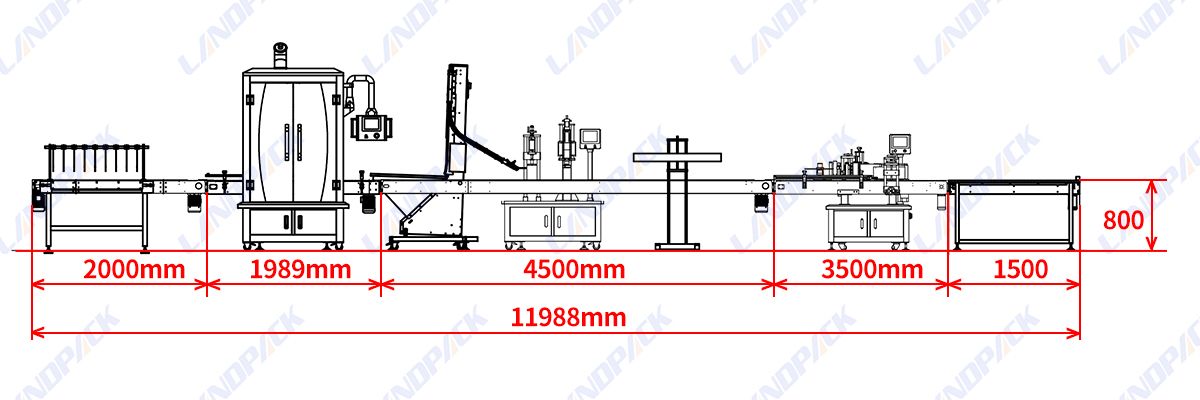

Machine Key Components:
Features:

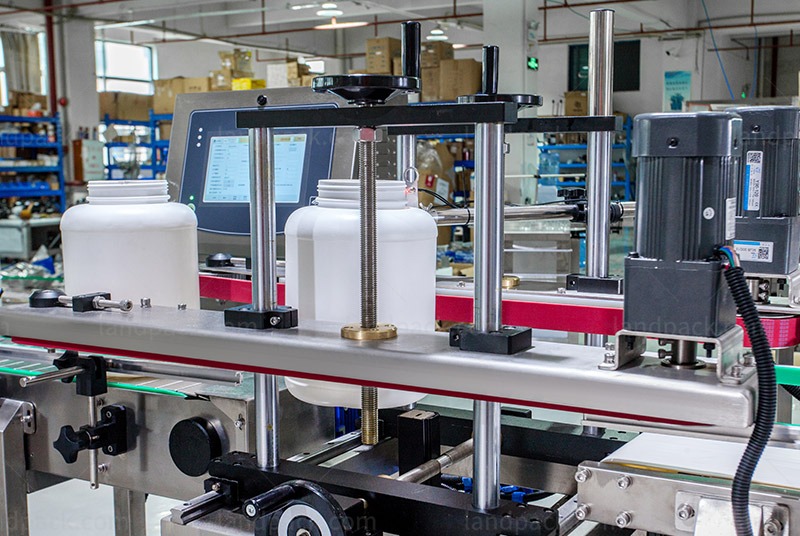

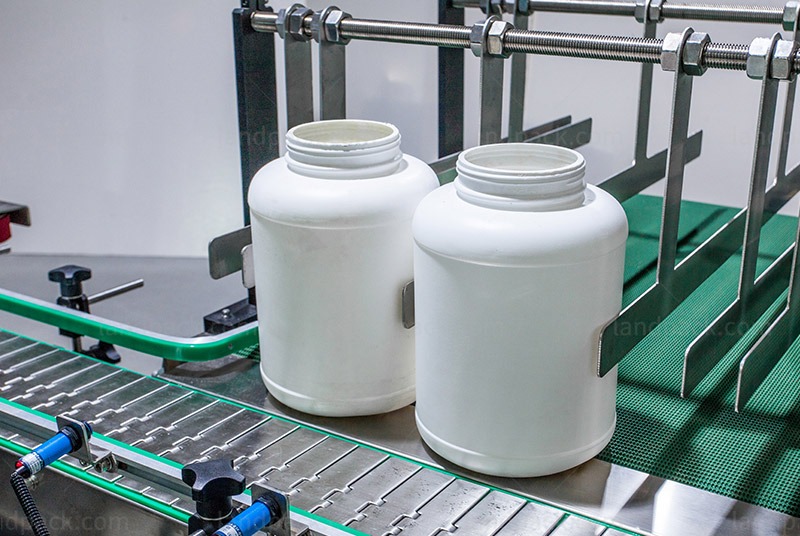

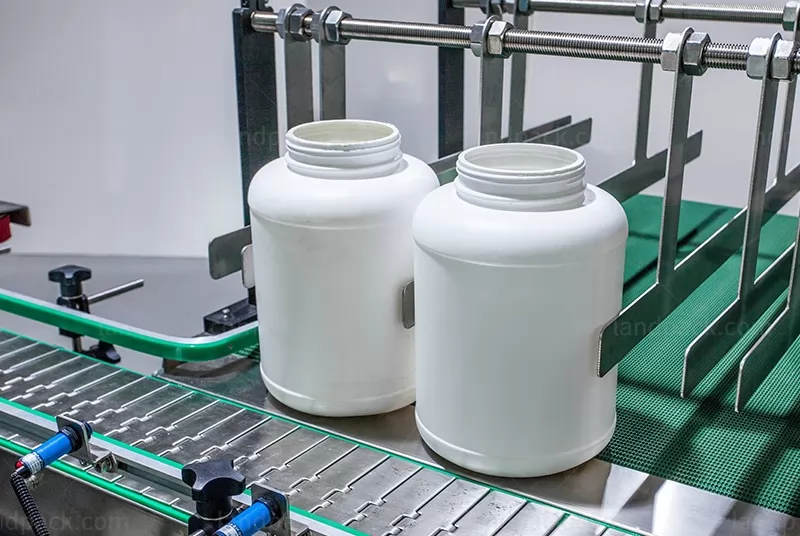

1. Automatically arranges and transports empty bottles effortlessly, ensuring steady and constant feeding to ensure high-efficiency production.
2. Prints production date, batch number, or trace codes clearly on bottles, supporting easy product identification and traceability.

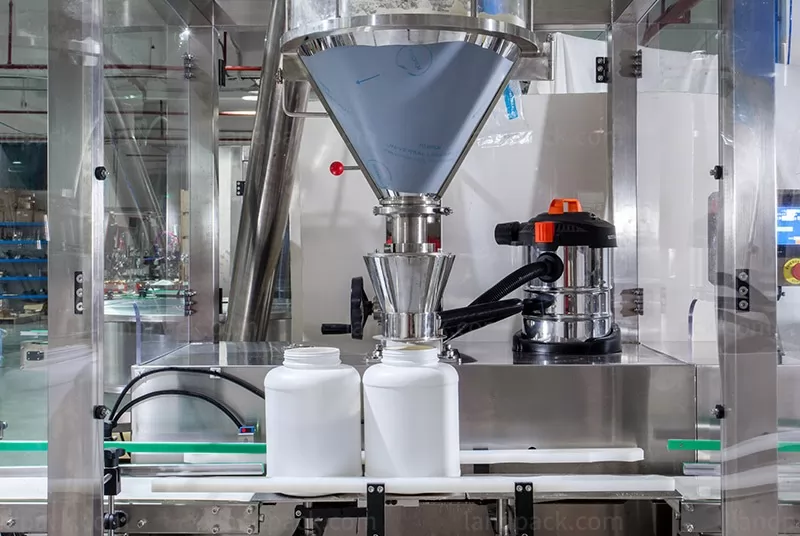

3. High-precision auger filling device made for protein powder and fine powders, providing precise dosing, with the least amount of dust and loss of product.
4. Automated cap sorting, feeding and servo capping, to ensure solid and consistent sealing across various bottle sizes.
5. Provides airtight induction sealing for improved moisture protection, extended shelf life, and enhanced product safety.
6. Apply labels precisely and smoothly to round bottles, giving an attractive appearance and solid adhesion even at high speeds.
7. Gently receives finished bottles for easy inspection, packing, or downstream integration, improving overall workflow efficiency.
| Automatic Bottle Feeder | |||
| Machine Model | LD-LP800N | ||
| Power Supply | 220V/110V, 50-60Hz, 200W | ||
| Turntable Diameter | 800mm | ||
| Suitable Bottle Diameter | 20-100mm | ||
| Suitable Bottle Height | 30-320mm | ||
| Working Speed | 40-60bottles/min(depending on bottle size) | ||
| Package Size | 1230*1010*1260mm | ||
| Gross Weight | 141kg | ||
| Bottom Inkjet Coding Machine | |||
| Printing speed | 1024 seconds(5*7) | ||
| Power | 220V/50HZ,150VA | ||
| Printing direction | Positive sequence/reverse order/reverse/reverse | ||
| Printing distance | The nozzle and the object to be sprayed are kept within 3cm | ||
| Store information | The system can store 1000 print information | ||
| Ink consumption | 70million words per print(5X7) | ||
| Machine weight | 48kg | ||
| Automatic Powder Filling Machine | |||
| Model | LFP-01(Single Head) | LFP-01(Dual Head) | |
| Filling Weight | 10-5000 g (by changing auger) | 10-5000 g (by changing auger) | |
| Bottle Diameter | Φ30-Φ140 mm (customizable) | Φ30-Φ140 mm (customizable) | |
| Bottle Height | 50-200 mm (customizable) | 50-200 mm (customizable) | |
| Capacity | 10-20 bottles/min | 20-40 bottles/min | |
| Filling Accuracy | ≤500 g: ±1%>500 g: ±0.5% (varies by material) | ≤500 g: ±1%>500 g: ±0.5% (varies by material) | |
| Power Consumption | 2.5 kW | 5 kW | |
| Hopper Capacity | 50 L | 50 L | |
| Power Supply | 220 V, 50 Hz | 220 V, 50 Hz | |
| Air Pressure | 0.6–0.8 MPa | 0.6–0.8 MPa | |
| Machine Weight | 350 kg | 550 kg | |
Automatic capping machine | |||
Model | LDBZ-2C (Double heads servo capping) | LDBZ-C (Single head servo capping) | LDBZ-3C (Three heads servo capping) |
Capacity | 40 Bottles/min | 30 Bottles/min | 50 Bottles/min |
Bottle diameter | Φ25mm-100mm(Could be customized) | ||
Bottle sealing height | 40mm-200mm(Could be customized) | ||
Power | 2.5KW | 2KW | 3KW |
Voltage | 220V, 50HZ | ||
Air pressure | 0.5-0.7Mpa | 0.4-0.6Mpa | 0.7-0.9Mpa |
Weight | 350kg | 300kg | 400kg |
| Aluminum foil sealing machine | |||
| Model | LD-ZS(Double Heads Aluminum Foil Sealing) | LF-LB-2000(Single Heads Aluminum Foil Sealing) | |
| Applicable bottle diameter | Φ10-200mm（Could be customized） | Φ10-200mm（Could be customized） | |
| Applicable bottle height | H:40-300mm（Could be customized） | H:40-300mm（Could be customized） | |
| Speed | 0-30bottle/min | 0-10bottle/min | |
| Bottle material | Glass, ceramics, plastics, metals | Glass, ceramics, plastics, metals | |
| Voltage | 220V,50HZ | 220V,50HZ | |
| Power | 1500W | 1200W | |
| Dimension | 1500*800*1750mm | 1200*600*1550mm | |
| Automatic Labeling Machine | |||
| Model | LFT-YP-00 | ||
| Labeling Speed | 20-60 bottles/min | ||
| Labeling Accuracy | ±1mm | ||
| Max Label Width | 100mm | ||
| Applicable Product Size | Φ30mm~Φ80mm(Can be customized) | ||
| Applicable inner diameter of paper | Φ76mm | ||
| Applicable outer diameter of paper | Max.Φ330mm | ||
| Air Source | 4-6 KG 30L/min | ||
| Dimension | 2000*800*1600mm | ||
| Voltage | 220V, 50Hz, 2000W | ||
| Weight | 250KG | ||
After receiving your inquiry,We will send you the quotation as soon as possible.
