Automatic Liquid Bottle Filling Capping And Labeling Lines

  • Application
  • Description
  • Parameter
  • Video

Application:

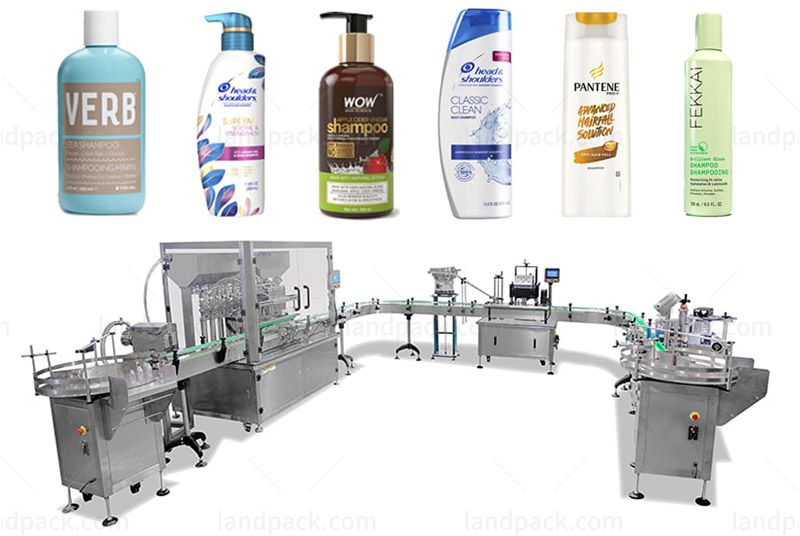

Full Automatic Bottle Filling Capping and Labeling Machine is Suitable for automatic filling, capping and labeling of various liquid products. Round, flat, square and other shaped bottles, cans, boxes and jas.

Examples: hand sanitizer, shampoo, distilled spirits, lubricate oil, edible oil, liquid detergent, tomato sauce, salad sauce. etc.

Packaging Type: Cans, Barrel, Bottles, Capsule, Cartons, Stand-up Pouch.

Packaging Material: Glass, Metal, Paper, Plastic, Wood, Other.

Kindly Reminder:
We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.

Packing Exambers:Automatic Liquid Bottle Filling Capping And Labeling Lines

Stronger PLC software support, may realize the ideal filling operation.

The touching operation color screen, can display the production state, operation  procedures and filling ways, tableau objective, operation simple and maintenance convenient.

This China most popular products simplex filler machine jar filling machines automatic liquid filling machine uses vacuum sucking technology to ensure no leakage of filling head during filling production process.

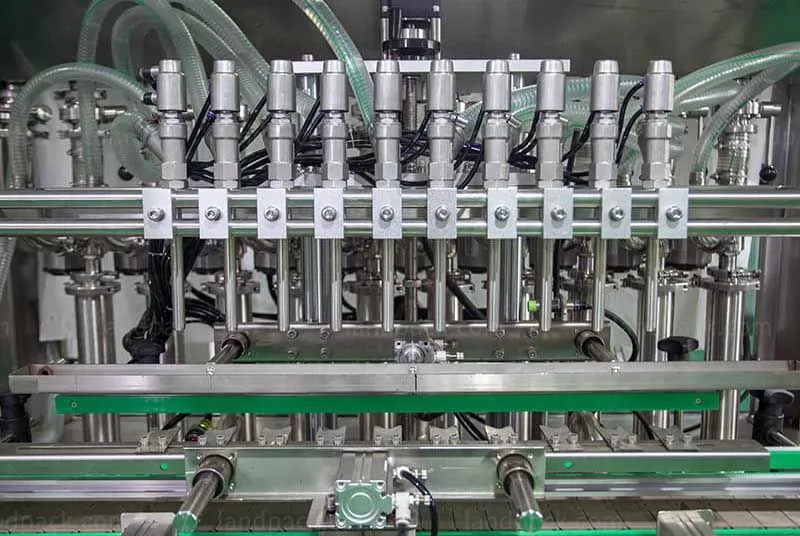

Each filling-head is equipped with a bottle-mouth-clamping device, ensuring the injecting material correct aiming at.

This machine suits for the filling of different sizes of vessel, may change the filling sizes within a few minutes.

Pivotal electrical part use world famous brand such as Mitsubishi, OMRON, SIEMENS.

Optional servo filling system.

ModelLFZ-06LFZ-08LFZ-10LFZ-12
Filling Range50-1000ml (customizable)50-1000ml (customizable)50-1000ml (customizable)50-1000ml (customizable)
Filling Speed<30 bottles/min (customizable)<40 bottles/min (customizable)<50 bottles/min (customizable)<60 bottles/min (customizable)
Measurement Accuracy±1%±1%±1%±1%
Power1KW1.2KW1.2KW1.5KW
Power Supply220V、50Hz220V、50Hz220V、50Hz220V、50Hz
Working Pressure0.6-0.8MPa0.6-0.8MPa0.6-0.8MPa0.6-0.8MPa
Weight400kg450kg500kg550kg
