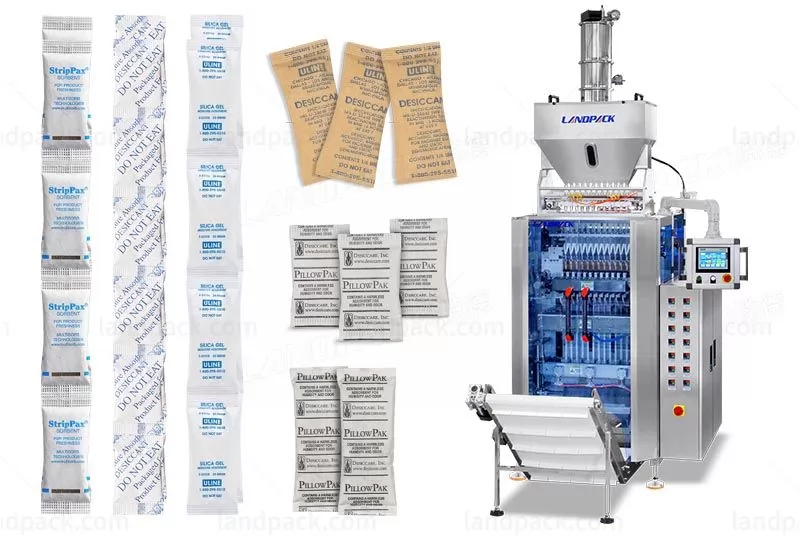

High Speed Multi Track Silica Gel Packing Machine With Vacuum Feeder

  • Application
  • Description
  • Parameter
  • Video


This multi lanes machine can make bags, measure, fill, seal, and make the easy tearing notches. Suitable for food, cosmetic, medicine packing such as silica desiccant, sugar, salt, pepper, washing powder and all kinds of granule etc.

Kindly Reminder:

We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.

Packaging Exambers:High Speed Multi Track Silica Gel Packing Machine With Vacuum Feeder

Multi lanes machine can produce multi lanes bags at same time.

Machine main function: automatic split film at right position, liquid measuring and filling, multi lanes bag form fill seal, cutting, sensor tracking, counting capacity.

Other function: Emergency stop, set capacity to auto stop machine, count capacity and Zero the count, ready bag output, manual test machine each step etc.

Stainless steel contact part and the machine outer shell, high feature for liquid running environment.

High precision photocell sensor for auto tracking the eye mark printing on the film roll, so cut each bag at precisely position.

PLC controller, high function and control the whole machine’s work steps.

Lane number4-6Lane
Filling method1.Vlumetric cup;2.weigher
CapacityMax.35 cycle/min
Sachet sizeL:50-180mm;W:17-30mm
Film weight&thicknessMax.280mm,0.007-0.10mmMax.560mm,0.07-0.10mmMax.720mm,0.07-0.10mm
Sealing typeBack sealing/stick bag
Cutting type1.straight cutting;2.zig zag cutting;3.round cutting
Air&power0.8Mpa 0.8m3/min;3.5kw0.8Mpa 0.8m3/min;5.5kw
