High Speed Continuous Spout Pouch Filling Machine For Puree/ Juice/ Paste/ Honey / Ketchup

  • Application
  • Description
  • Parameter
  • Video

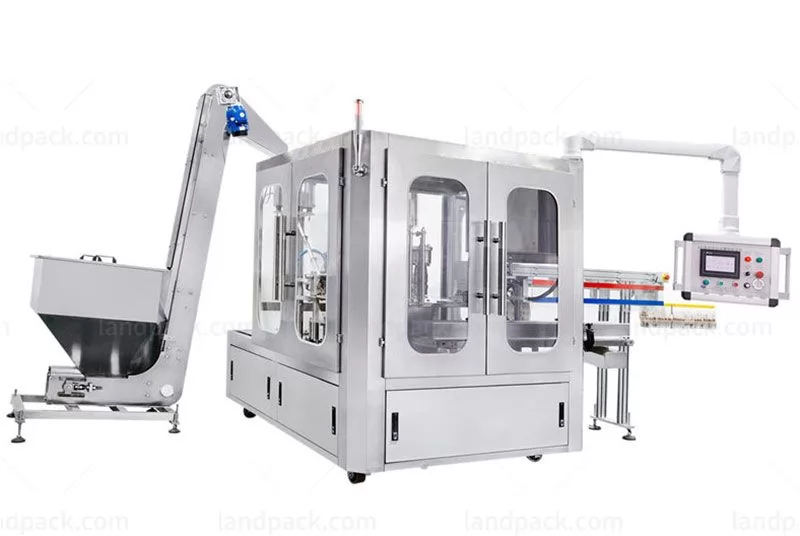

High Speed Continuous Spout Pouch Filling Machine(LDH-850L), it is suitable for liquid or semi-liquid, such as packing puree, soy milk, jelly, juice, ice cream, paste, honey, ketchup, yoghourt, laundry detergent, mineral water, edible oil, seasoning, scour etc;

Applicable Pouches: Spout Pouch, Stand-Up Pouch, Doypack, Bags, Pouch, Etc.

Kindly Reminder:
We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.

Packing Exambers:    High Speed Continuous Spout Pouch Filling Machine For Puree/ Juice/ Paste/ Honey / Ketchup

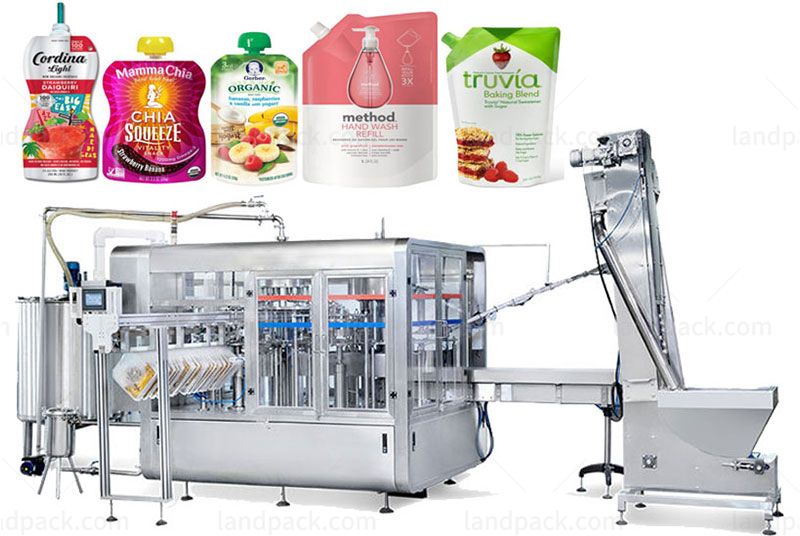

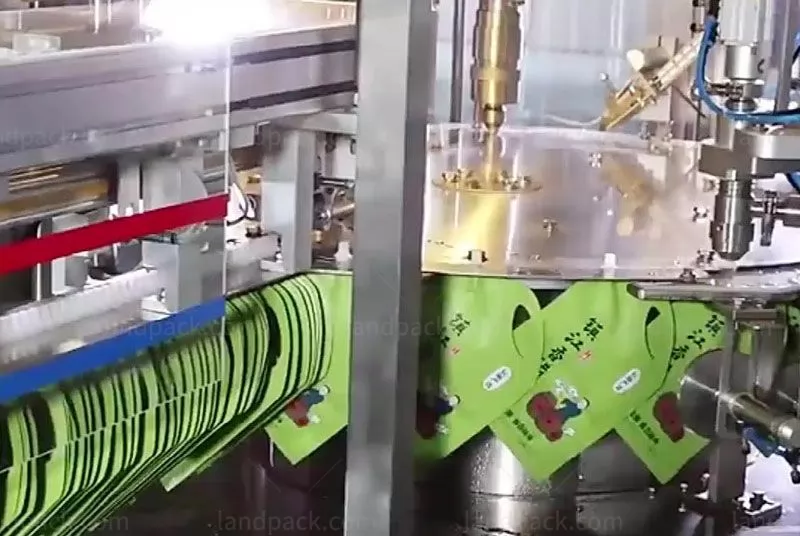

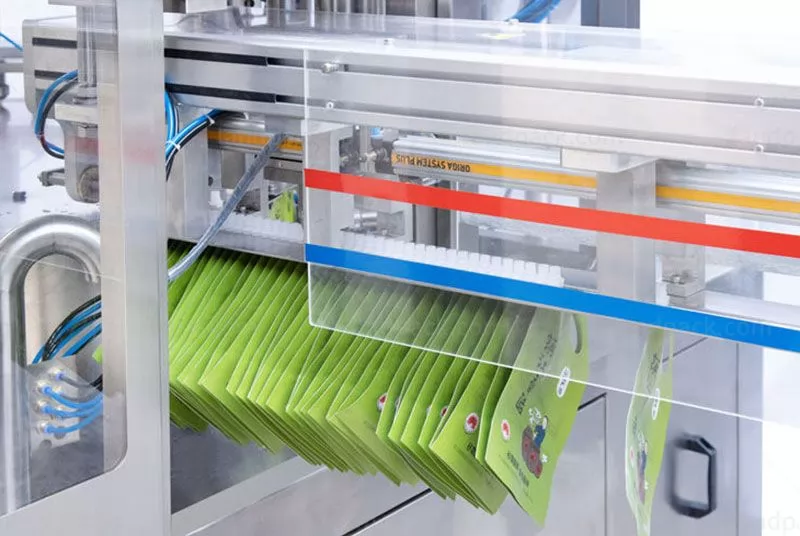

1)This is a full automatic production line with such processes as automatic pouch-loading, vacuuming, fixed-position filling, nitrogen flushing, clean spout, cap feeding and inserting, capping (applying magnetic adjusting torque for rather stability), discharging;

2)This machine can be connected CIP cleaning syetem, PLC control and touch screen system, air-purifying system, safeguard switch, glass cover. All of these functions can be added or removed according to the clients' requirements.

Model LDH-850LFilling range30-7500ML
packing speed5000-7500 bag/HRated air pressure0.65-0.95(MPa)
using electricAC380V/50HzAir consumption0.9(m3/min)
rated power6.0(Kw/H)Total Weight2400(Kg)
Pocket diametercustomizableDimensionsL2900xW2200xH2200mm
Filling accuracy1%

After receiving your inquiry,We will send you the quotation as soon as possible.
