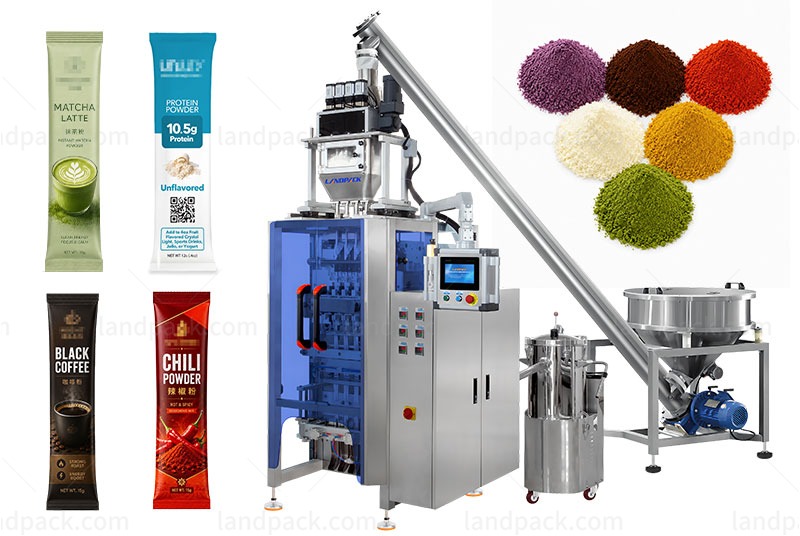

Automatic Mulit Lane Powder Three-Side Seal Stick Packing Machine with Screw Conveyor

Application:
This stick powder packing machine packs milk powder, coffee powder, protein powder, seasoning powder, pharmaceutical powder, drink mixes, and other fine powders into small sachets. Four lanes run together, with a separate servo auger controlling each lane. The powder stick pack machine suits food, nutrition, pharmaceutical, and chemical powder lines that need single-serve packs at up to 35 cycles/min.

Package Type:

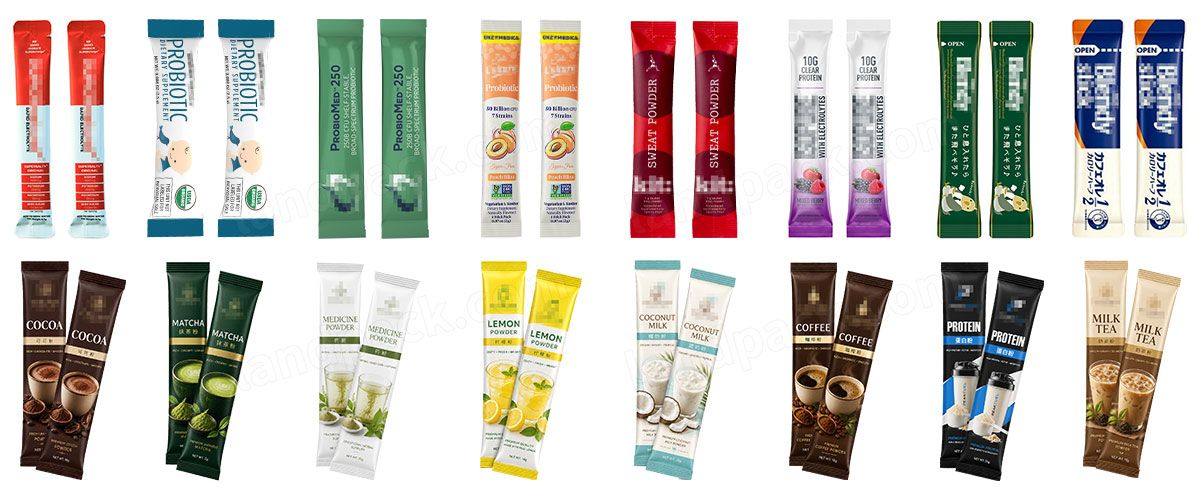

This powder stick packing machine makes three-side seal sachets from roll film. It supports slim stick-style sachets, flat powder packets, printed film, and different sachet widths, lengths, and filling weights. Common film options include PET/PE, PET/AL/PE, OPP/CPP, and other heat-sealable laminated films.

Workflow:

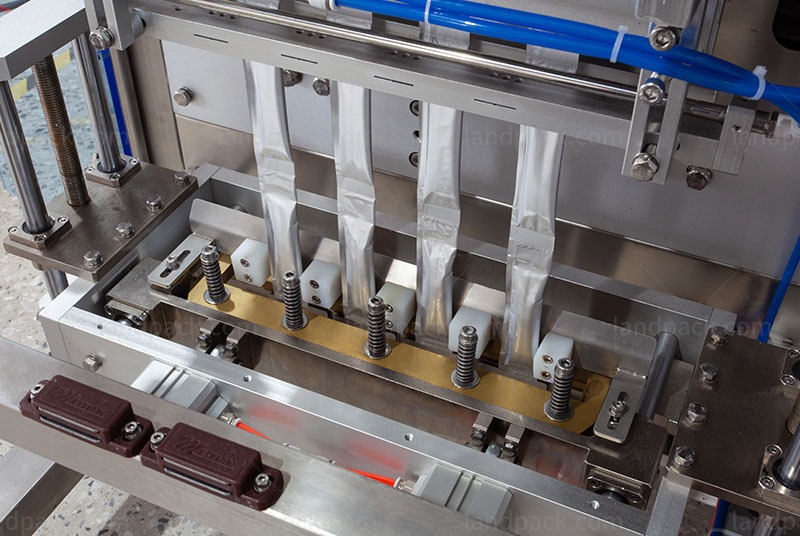

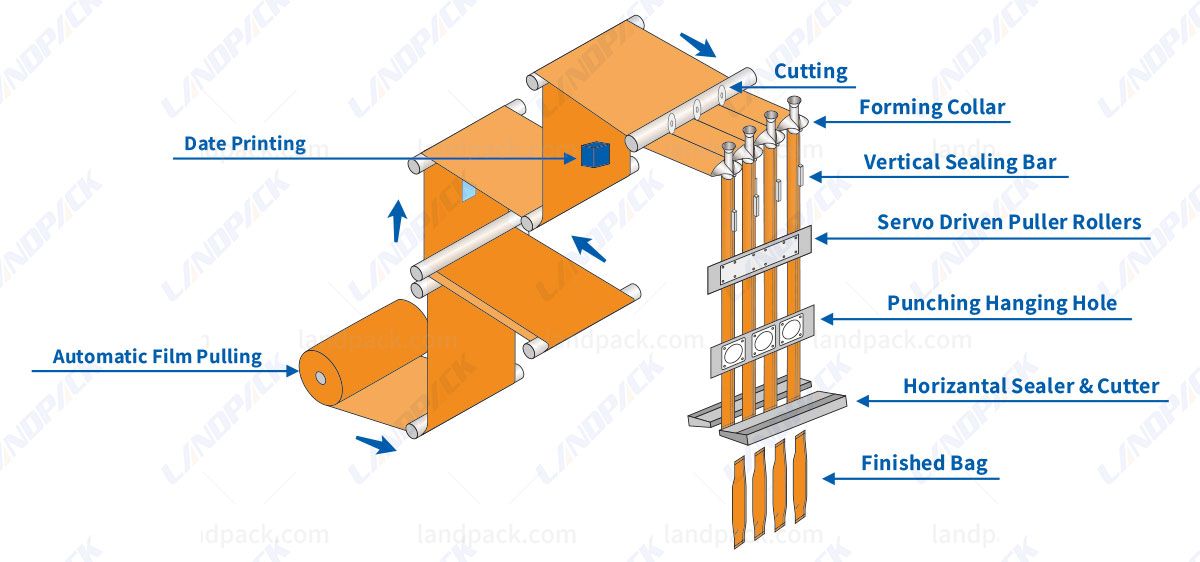

1. Screw Feeding, 2. Servo Film Pulling, 3. Ribbon Coding, 4. Auger Dosing, 5. Powder Filling, 6. Dust Removal, 7. Sachet Forming and Sealing, 8. Cutting and Output

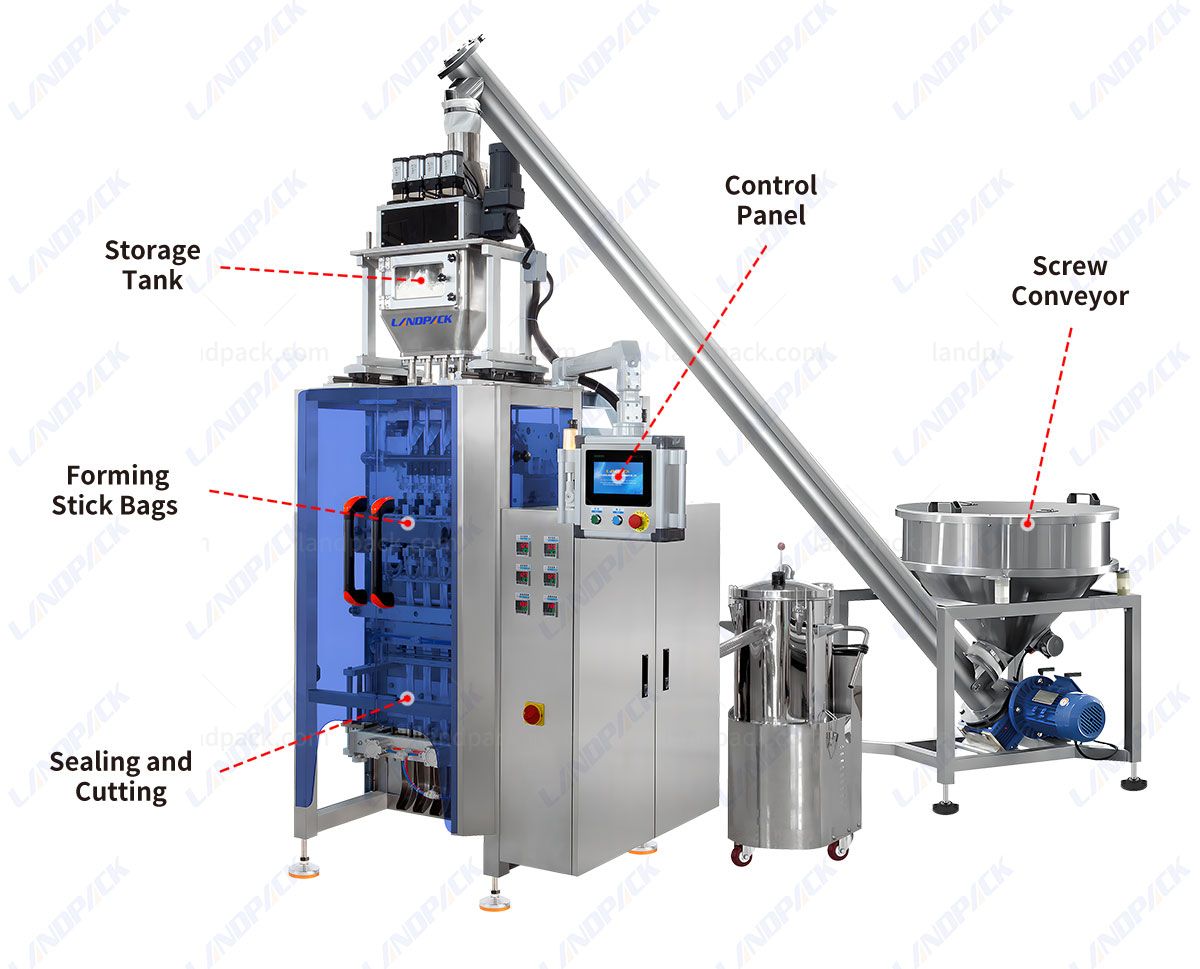

Machine Structures:

Features:
1. Separate servo auger controls dosing on each lane

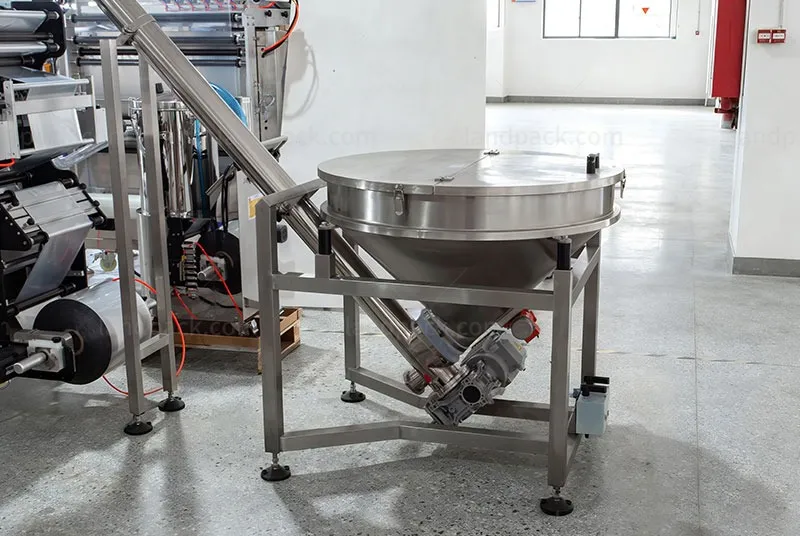

2. Screw conveyor keeps powder supplied to the hopper
3. Servo film pulling keeps sachet length steady
4. SS304 frame and product-contact parts support regular powder production
5. Siemens PLC and touchscreen control speed, dosing, and sealing settings
6. Dust removal reduces loose powder around the seal
7. Ribbon coder prints clear production and batch information
8. Roll film system handles forming, filling, sealing, and cutting
