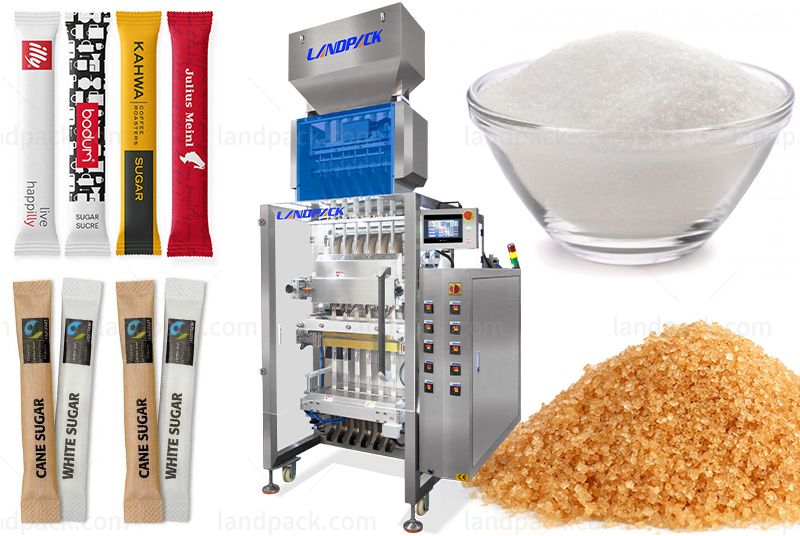

High Speed Multi Lane Fine Granule Sugar Salt Stick Filling Sealing Machine

  • Application
  • Description
  • Parameter
  • Video

Application:
High-speed multi-lane fine granule sugar salt stick filling sealing machine suitable for kinds of loose granule products such as sugar, salt, small grains, seeds, spice, sesame, seasoning, etc.

Kindly Reminder:
We have an experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.

Packing Exambers:    stick packaging equipment

1. Multi lanes machines can produce multi-lane bags at the same time.

2. Machine main function: automatic split film at the right position, liquid measuring and filling, multi lanes bag form fill seal, cutting, sensor tracking, counting capacity.

3. Other functions: Emergency stop, set capacity to auto stop machine, count capacity and Zero the count, ready bag output, manual test machine each step, etc.

4. The stainless steel contact part and the machine's outer shell, have high features for a liquid running environment.

5. High-precision photocell sensor for auto-tracking the eye mark printing on the film roll, so cut each bag at a precise position.

6. PLC controller, high function and control the whole machine’s work steps.

ModelLD-280BFLD-560BF
Lane number4-6 Line8-12 Line
Filling Method1. Volumetric cup; 2. Weigher
CapacityMax.35 cycles/ min
Sachet SizeL: 50-180mm; W: 17-30mmL: 50-180mm; W: 17-30mm
Film width & ThicknessMax.280mm, 0.07-0.10mmMax.560mm, 0.07-0.10mm
Sealing typeBack sealing/Stick bagBack sealing/Stick bag
Cutting type1. Straight cutting; 2. Zig zag cutting; 3. Round cutting; 4. Irregular
Air & Powder0.8Mpa, 0.8m3/min; 3.5kw0.8Mpa, 0.8m3/min; 5.5kw
Dimension & weight1385*918*2005mm; 350kg1685*1300*2005mm; 550kg

After receiving your inquiry,We will send you the quotation as soon as possible.
