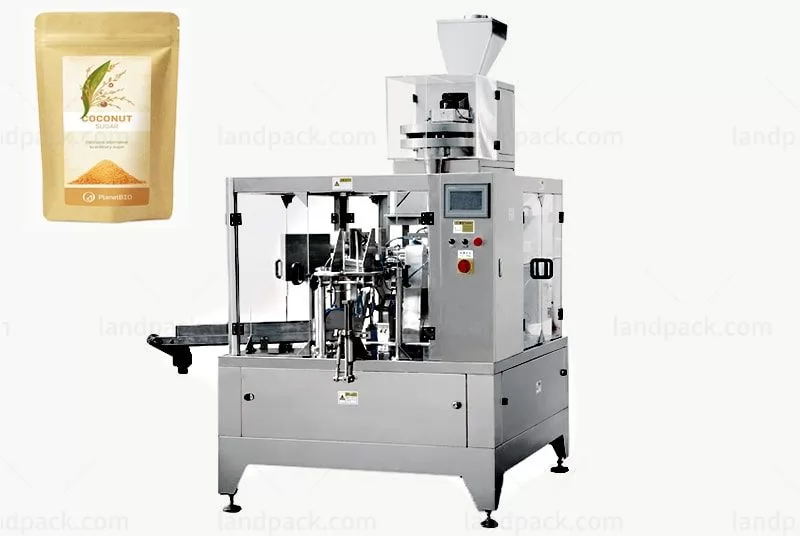

10-1000g Sugar/Salt Doypack Machine For Premade/Zipper/Stand-Up Pouch Etc.

  • Application
  • Description
  • Parameter
  • Video

Application:

Suitable for weight and packing mineral salt, sea salt, sea crystal and so on into premade pouch.

Kindly Reminder:
We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.

Packing Exambers:    Doypack filling machine for mineral salt, sea salt, sea crystal

Easy to operate, adopt advanced PLC from Germany Siemens, mate with touch screen and electric control system, the man-machine interface is friendly.

Automatic checking function: no pouch or pouch open error, no fill, no seal. the bag can be used again, avoid wasting packing materials and raw materials.

Safety device: Machine stop at abnormal air pressure, heater disconnection alarm.

The width of the bags could be adjusted by electrical motor. Press the control-button could adjust the width of clip, easily operate, and save time.

The part where touch to the materials is made of stainlesss steel and according with the request of GMP.

Working positionSix/eight-working position
Bag materialLaminated film/PE/PP
Bag patternStand-up with zipper &stand-up with spout,flat bag,
Max filling weight10-1000g
Filling accuracy0.5-1%
Bag sizeType 1 W:100-200mm L:100-350mm
Type 2 W:150-260mm L:100-350mm
Type 3 W:200-300mm L:200-450mm
Speed10-60bags/min
Voltage380v 3phase 50/60hz
Total power5.5KW
Compress air0.6m³/min
Detecting device1.No ribbon, alarm and Emergency stop
2.No pouch or pouch open error, no filling, no sealing
Safety device1.Open the door, alarm a Emergency stop(Optional)
2.The air pressure not enough, alarm
3.the sealing temperature anomaly, alarm

After receiving your inquiry,We will send you the quotation as soon as possible.
