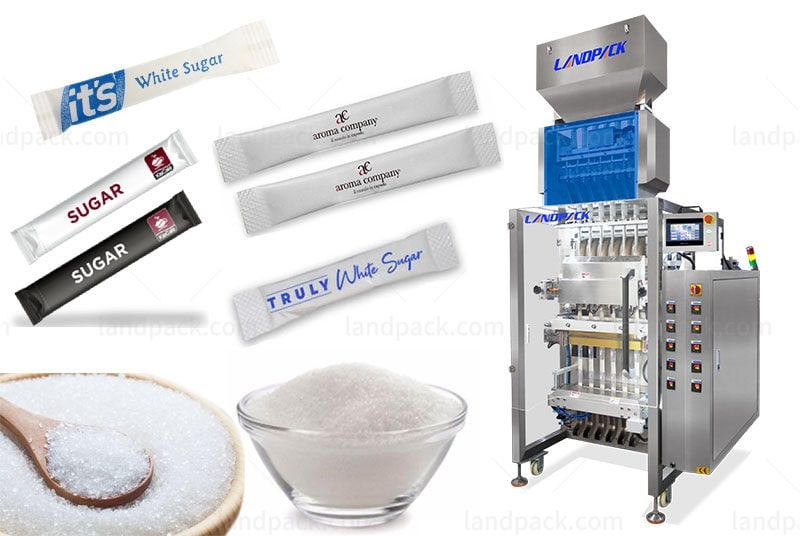

Automatic 6 Lane Sugar/ Salt/ Stick Bags Filling And Packing Machine

  • Application
  • Description
  • Parameter
  • Video

Application:

It is used for automatic filling of various granule into bags.Such as sugar, salt, coffee, seed, sesame, bean, Desiccant, Health Products Industry and So On.

Kindly Reminder:
We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.

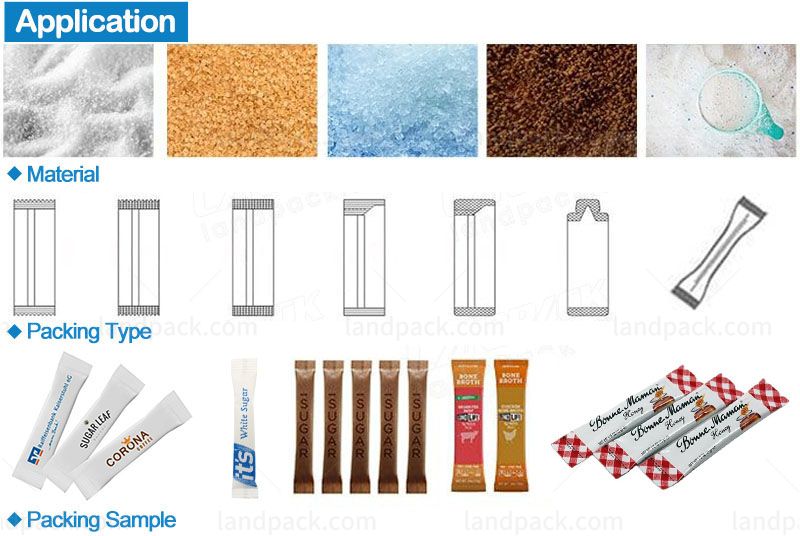

Packing Exambers: Application2-new.jpg

Multi lanes machine can produce multi lanes bags at same time.

Machine main function: automatic split film at right position,liquid measuring and filling, multi lanes bag form fill seal, cutting, sensor tracking, counting capacity.

Other function: Emergency stop, set capacity to auto stop machine, count capacity and Zero the count, ready bag output, manual test machine each step etc.

Stainless steel contact part and the machine outer shell, high feature for liquid running environment.

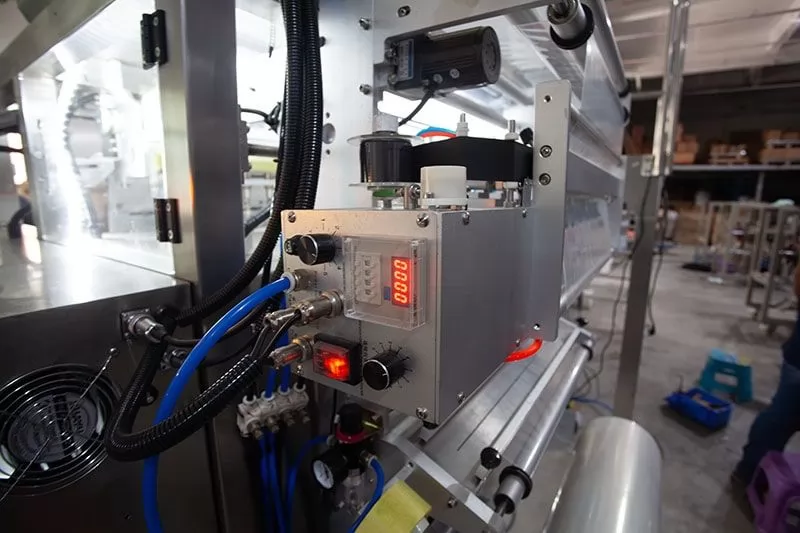

High precision photocell sensor for auto tracking the eye mark printing on the film roll, so cut each bag at precisely position.

PLC controller, high function and control the whole machine' s work steps.

Model
LDBK280
LDBK560
Filling Method1. Volumetric cup  2. Weigher
Film width&Thickness
Max.280mm,
0.07-0.10mm
Max.560mm,
0.07-0.10mm
Packing speed
30-40bag/min/lane
Air consumption
0.8mpa
Sealing type
Backsealing/ Stick bag
Powder
3.5KW
5.5KW
Machine Weight
350KG
550KG
Dimensions (mm)
1385(L)*918(W)*2005(H)
1685(L)*1300(W)*2005(H)

After receiving your inquiry,We will send you the quotation as soon as possible.
