Application:
This machine is suitable for packing a variety of fine granular products, including edible salt, mineral salt, sea salt, sugar, brown sugar, monosodium glutamate, rice, and similar materials. It ensures precise weighing and efficient packaging, making it ideal for the food and seasoning industries.
Suitable Pouches:
All types of heat sealable preformed side seal bags, fin seal bags, gusseted bags, block bottom bags, zip-lock recloseable bags, stand-up pouch with or without spout ect.
Kindly Reminder:
We have an experienced team of R&D engineers who can customize packaging solutions according to your product characteristics.
Packing Exambers:
1. Rotating measuring cup metering for accurate measurement at a low cost.
2. PLC control with touch screen interface for easy and stable operation.
3. Ideal for granular and free-flowing materials like salt, sugar, rice, and nuts.
4. Compact design with reliable performance, suitable for mass production.
5. Supports the filling of premade pouches, providing maximum packaging performance.
6. Small and medium-sized packaging businesses cost-effective option.
Workflow:
1. Z-type elevator
2. Vertical feeding bag device
3. Ribbon code

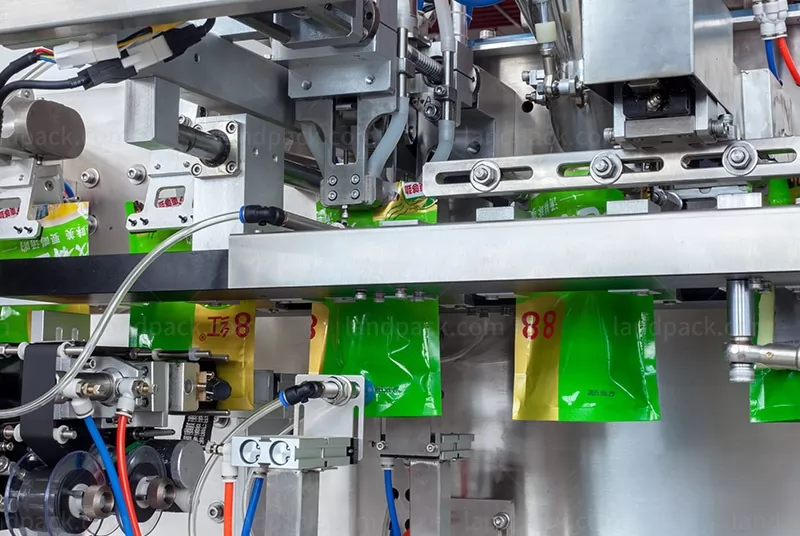

4. Zipper opening device & Open the bag

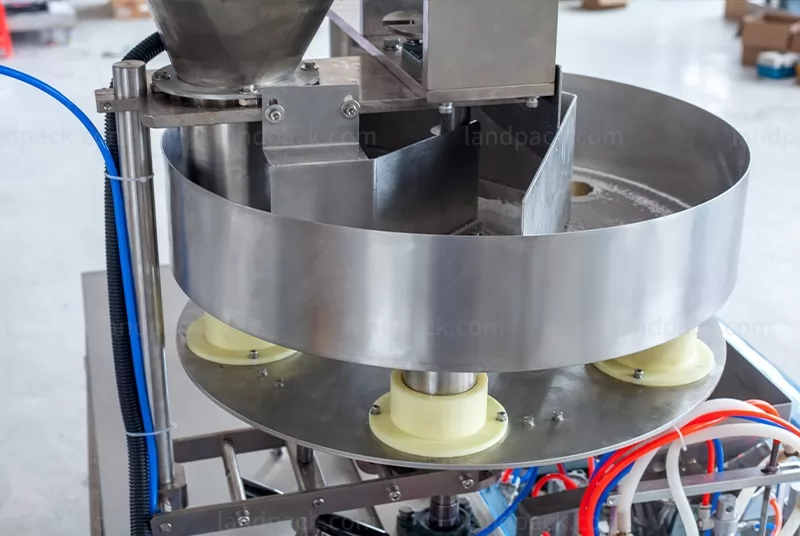

5. Rotary volumetric cups metering and filling
6. Twice sealing
7. Finished product convey
| Type | LDSP-160 | LDSP-160Y | LDSP-210 | LDSP-260 |
| Bag Type | 3-side, 4 side sealing bag, stand-up bag, handbag, spout bags, zipper bag, compound bag, etc. | |||
| Bag Size | 110-230mm*80-160mm(L*W) | 70-100mm*110-230(L*W) | 100-210mm/110-320mm（L*W） | 100-260mm/110-320mm（L*W） |
| Filling Range | 10g-100g | 10g-100g | 10g-1kg | 10g-3kg |
| Packing Speed | 20-45 bags/min | 25-50 bags/min | 20-50 bags/min | 20-50 bags/min |
| Machine weight | 800KG | 800KG | 900KG | 1000KG |
| Total Power | 2.0KW | 2.0KW | 2.0KW | 2.0KW |
| Work Flow | 1. Giving bag, 2. Pick up the bag(coding), 3. Open the bag up and down, 4. Filling, 5. Heating sealing, 6. Output of the product | |||
| Dimensions | 1750*1285*1360mm(L*W*H) | 2140*1366*1360mm(L*W*H) | 2140*1366*1360mm(L*W*H) | |
| Collocation | Screw metering, screw elevator | |||
After receiving your inquiry,We will send you the quotation as soon as possible.
