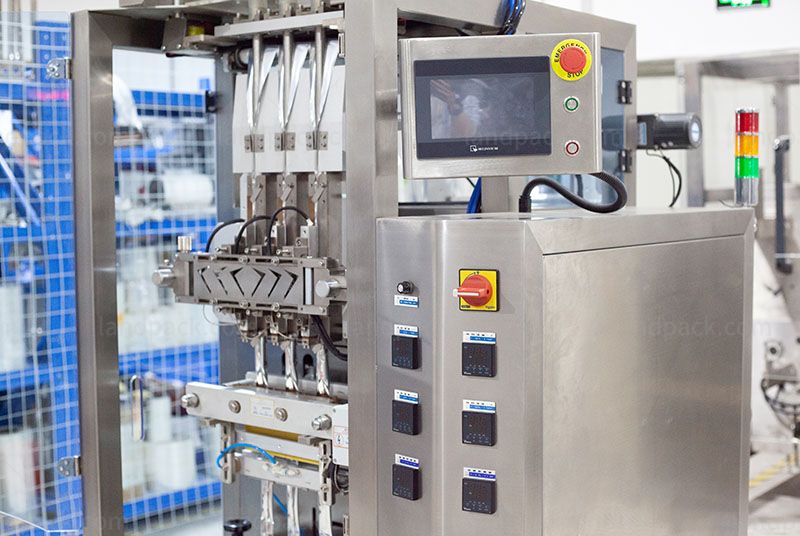

High Speed Multi Track Sugar Stick Packing Machine LDBK280G-3

  • Application
  • Description
  • Parameter
  • Video

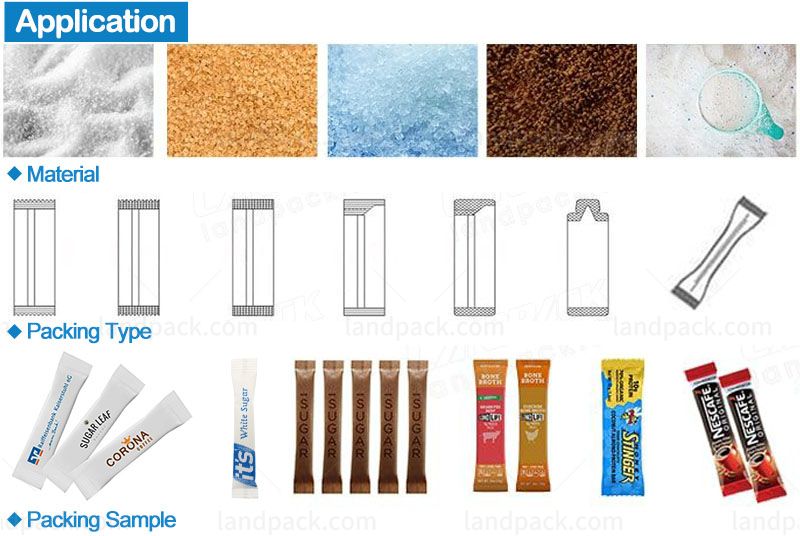

Application:

It is used for automatic packing of various fine particle products into stick pack. such as sugar, coffee, salt, seed, sesame, bean, desiccant, health products industry and so on..

Landpack Multilane Sachet/ Stick Pack Machine

The cartoning machine can be configured according to customer needs, and the stick packing can be automatically arranged and put into boxes.

It can be designed 4 lanes, 5 lanes, 6 lanes, 8 lanes, 10 lanes, 12 lanes.….26 lanes,  it depends on the package bag size, and it's suitable for all kinds of powder & granule & liquid & psste & sauce ....etc products packaging with back side sealing(stick packing) or 3 side sealing or 4 side sealing(sachet packing).

This multilane packaging machine's speed is 30~40pcs/lane/minute, it s very helpful for the production in the factory.

Kindly Reminder:
We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.

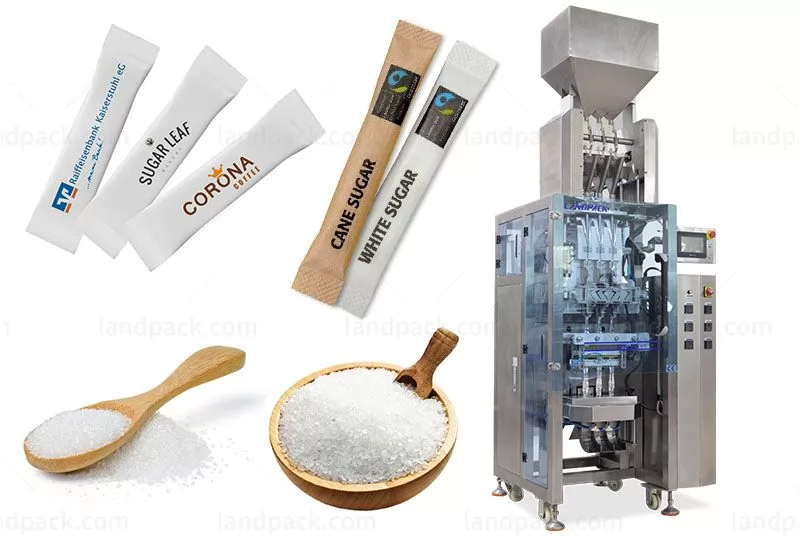

Packing Exambers: Application2.jpg

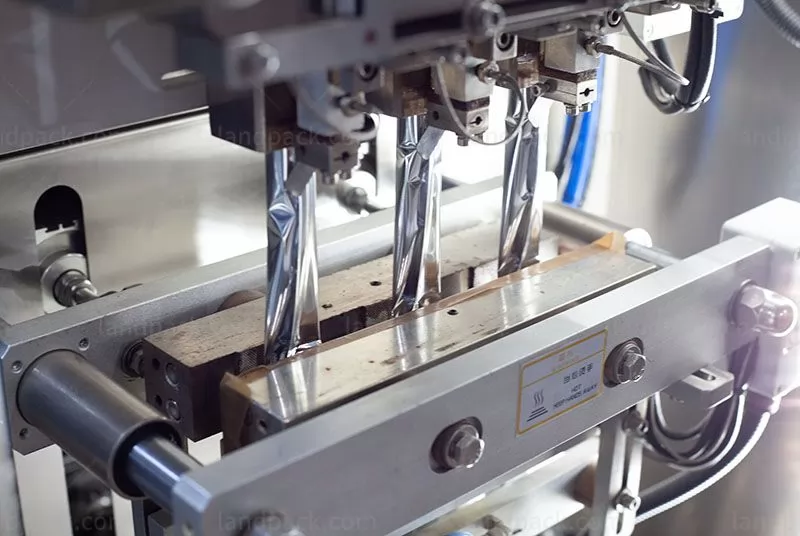

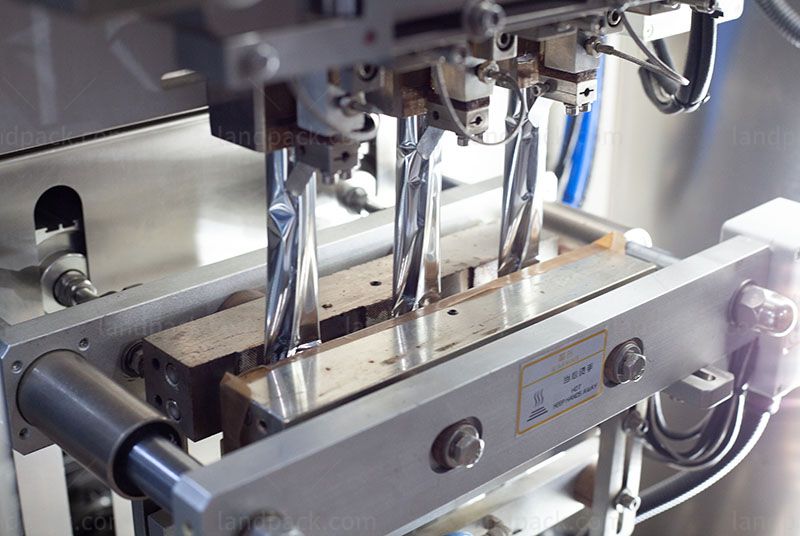

Multi lanes machine can produce multi lanes bags at same time.

Machine main function: automatic split film at right position,liquid measuring and filling, multi lanes bag form fill seal, cutting, sensor tracking, counting capacity.

Other function: Emergency stop, set capacity to auto stop machine, count capacity and Zero the count, ready bag output, manual test machine each step etc.

Stainless steel contact part and the machine outer shell, high feature for liquid running environment.

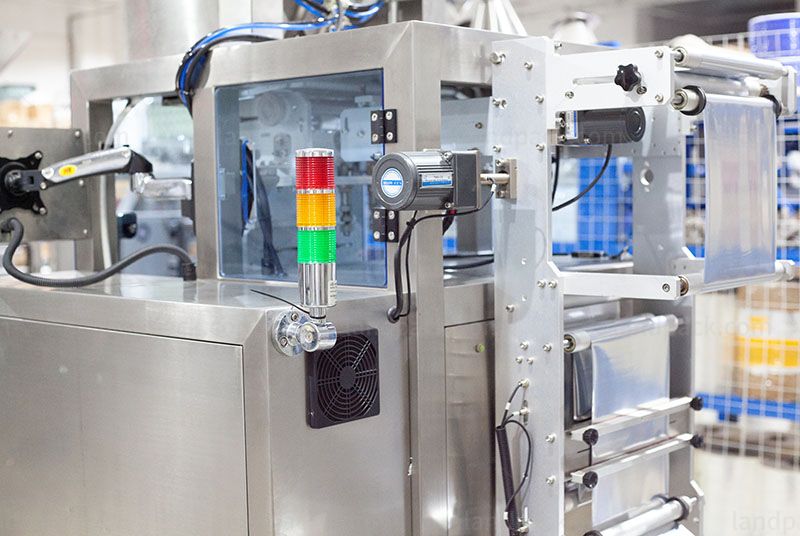

High precision photocell sensor for auto tracking the eye mark printing on the film roll, so cut each bag at precisely position.

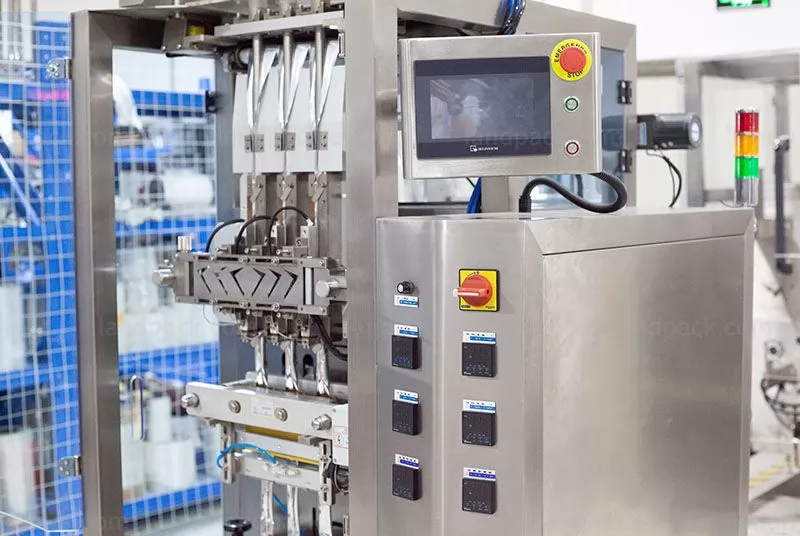

PLC controller, high function and control the whole machine' s work steps.

Model
LDBK280
LDBK560
Filling Method1. Volumetric cup  2. Weigher
Film width&Thickness
Max.280mm,
0.07-0.10mm
Max.560mm,
0.07-0.10mm
Packing speed
30-40bag/min/lane
Air consumption
0.8mpa
Sealing type
Backsealing/ Stick bag
Powder
3.5KW
5.5KW
Machine Weight
350KG
550KG
Dimensions (mm)
1385(L)*918(W)*2005(H)
1685(L)*1300(W)*2005(H)

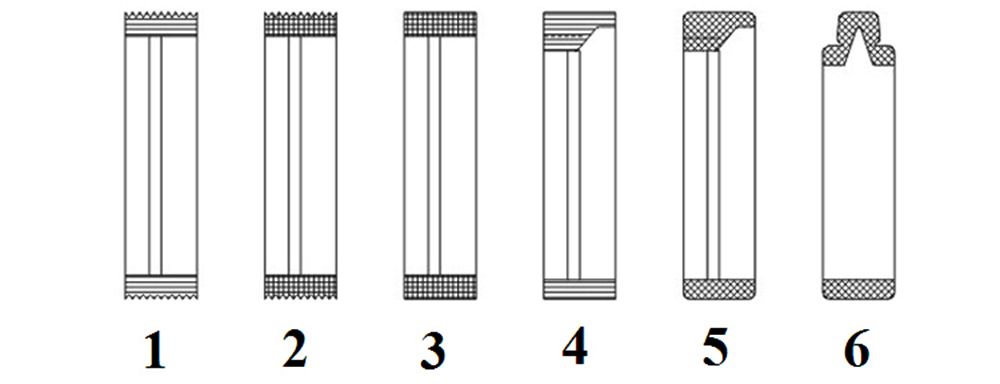

Stick bag packing type can be customized:

High Speed Multi Track Sugar Stick Packing Machine LDBK280G-3
