Application:
Suitable For Packaging Pouch Of Fine Particles Such As Sugar And Salt.
Kindly Reminder:
We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.
Packing Exambers:

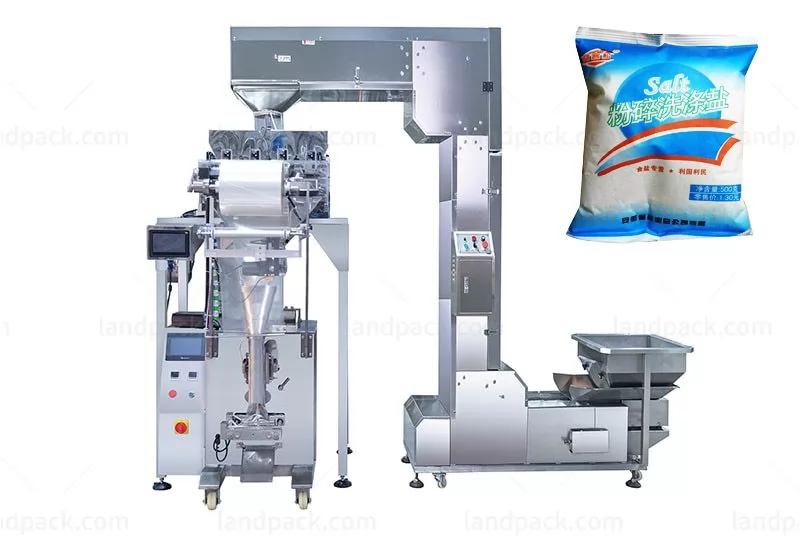

Microcomputer control system adopts double vibration infeeding, importing instrumentation, technology and easy operation.
Due to the sealed balance body with full sta inless steel, it has dustproof and anticorrosive function.
The measure hopper can be disassembled quickly. cleaned and repaired conveniently.
High precision structure for simple and easy operation and repair.
PLC touch screen, step motor control, easy and accurate to set the bag length.
The machine completes the whole procedure of filling, bagging, date printing, charging (exhausting) automatically.
| Model | LD-320 | LD-380 |
| Film width | 120-320mm | 180-380mm |
| Bag length | 50-200mm | 60-280mm |
| Bag width | 50-150mm | 60-180mm |
| Diameter of film roll | Max.300mm | Max.320mm |
| Packing speed | 35-70bag/min | |
| Measuring range | 50-500ml | 50-750ml |
| Film thickness | 0.04-0.07mm | |
| Power | 220V 50/60Hz 2.2KW | 220V 50/60Hz 2.5KW |
| Machine size(L*W*H) | 970*680*1950mm | 1100*800*2150mm |
| Machine weight | About 300kg | About 450kg |
After receiving your inquiry,We will send you the quotation as soon as possible.
