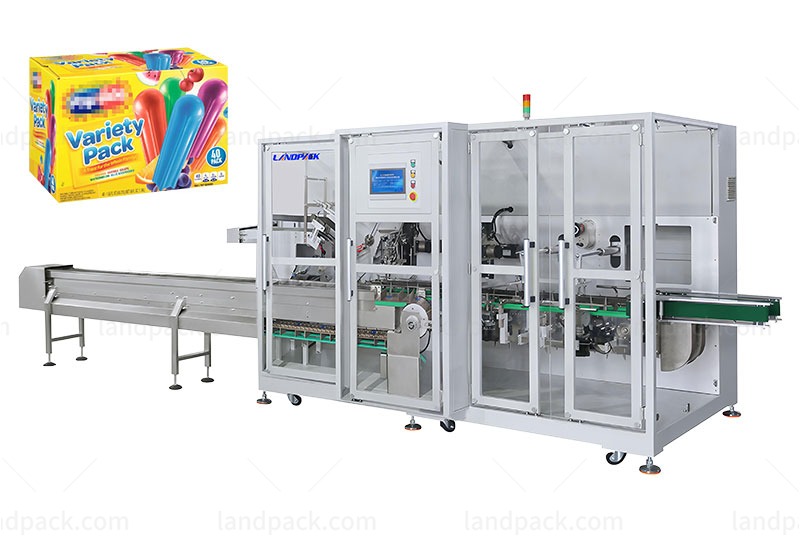

End Load Cartoner Fully Automatic Horizontal Cartoning Machine

Application:
This automatic cartoning machine  is suitable for packing a wide range of products such as biscuits, chocolate bars, wafers, bread and snack packs, as well as daily-use items like wet wipes, tissues, soap bars, mask packs.

Package Type:

Designed for carton, case, and box packing, this system supports a wide range of paperboard packaging formats, including folding cartons, corrugated cases, and standard retail boxes. It is compatible with various box sizes and structures

Suitable Products:
This horizontal cartoning machine features stable product collation, precise infeed positioning, and smooth carton forming and sealing. It is widely applied across multiple product categories, including
- Food products: biscuits, chocolate bars, wafer packs, bread and snack pouches
- Daily necessities: wet wipes, tissues, soap bars and sponge packs
- Health & personal care items: mask packs, medical wipes, sachets and small boxed supplements.

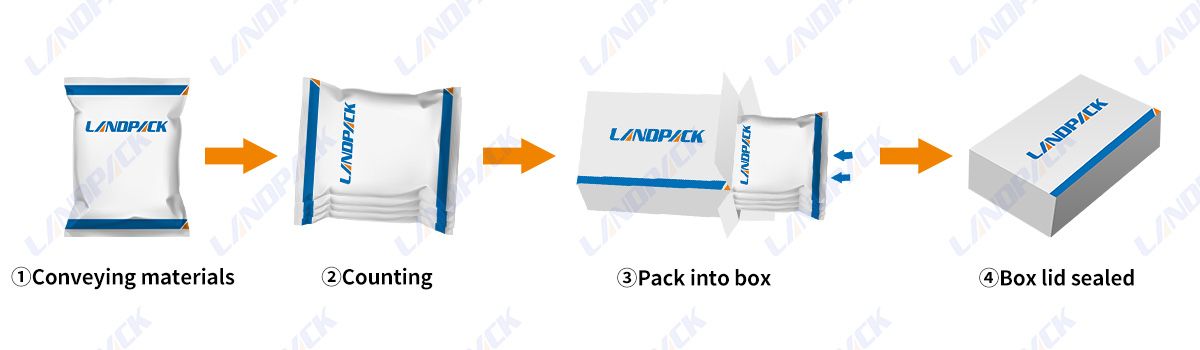

Workflow:

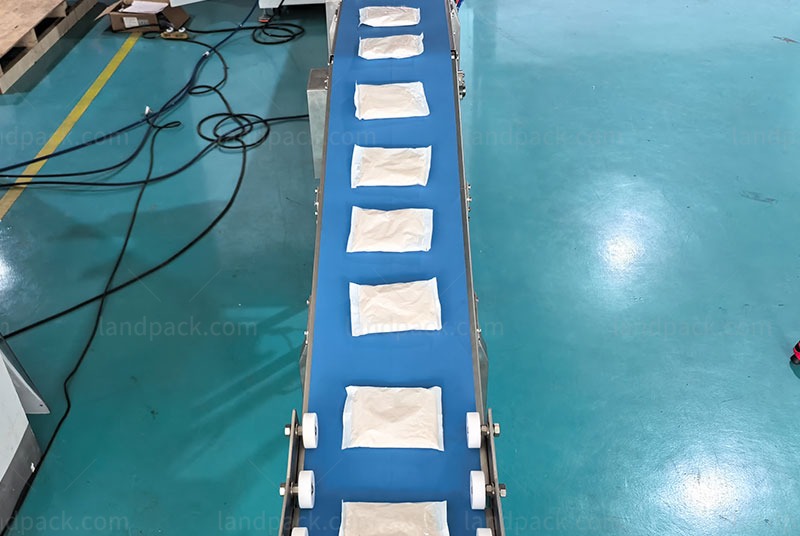

1. Product Infeed: Finished products are conveyed from the upstream in an orderly manner.
2. Product Grouping & Counting: Products are automatically counted and aligned according to preset carton requirements.

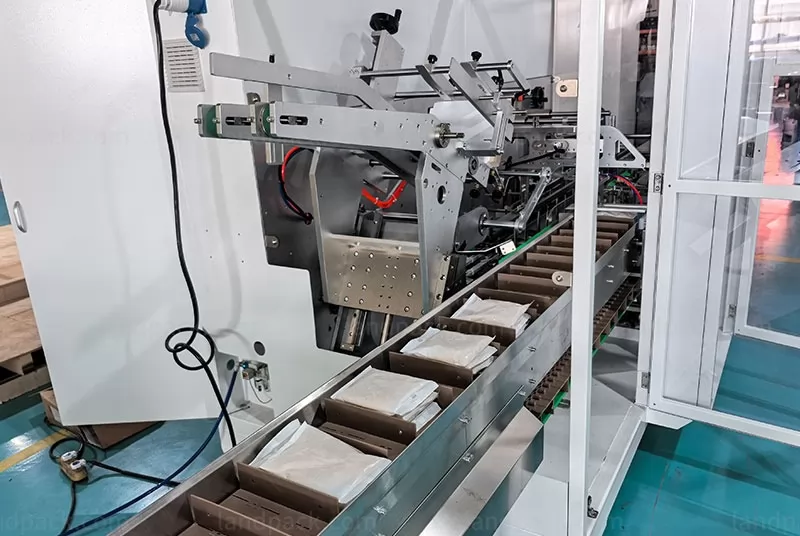

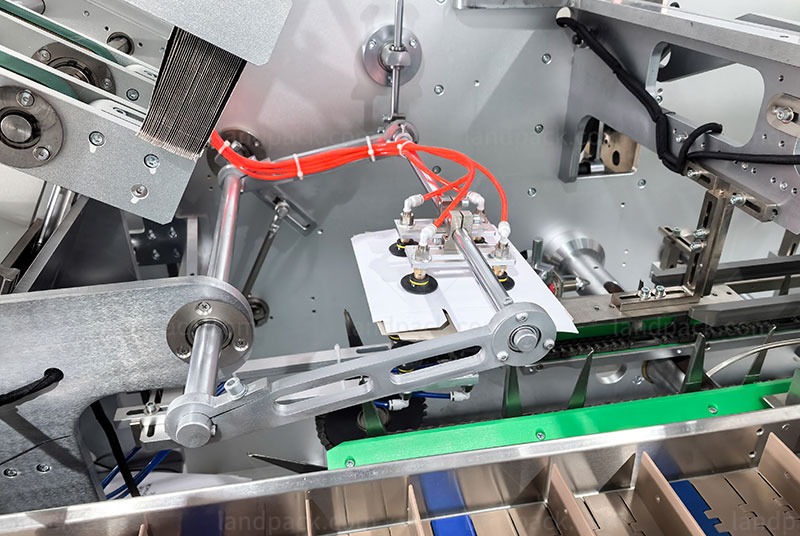

3. Carton Erecting: Flat cartons are picked up, opened, and positioned for loading.
4. Product Loading: Grouped products are pushed smoothly into the erected cartons.
4. Carton Closing & Sealing: Cartons are folded and sealed to form a neat, finished box.
4. Finished Carton Output: Sealed cartons are discharged for downstream packing, palletizing, or storage.

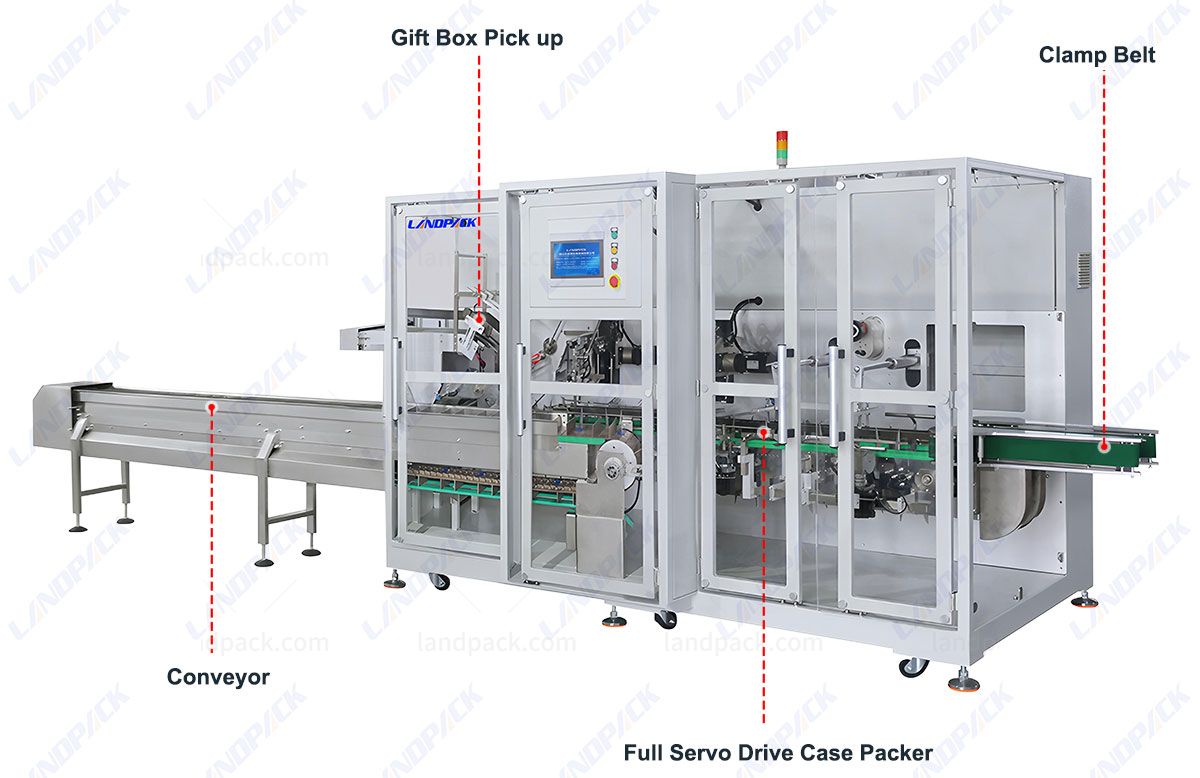

Machine Structure Overview:

1. Gift Box Pick up

2. Clamp Belt

3. Conveyor

4. Full Servo Drive Case Packer

Feature:

1. Reliable PLC Control System

It is equipped with an PLC and internationally renowned electrical components.

2. User-Friendly HMI Operation

Human-machine interface that is touch-screen using parameter memory, as well menu-based management

3. Automatic Detection & Reject Function

Automatically detects empty packages or products that are missing, or leaflets that are missing, and then refuses cartons that are not certified

4. Intelligent Safety & Alarm System

The system comes with mechanical overload protection Automatic shutdown with real-time fault indication, and alarm warnings that help minimize downtime and safeguard machine components.

5. Stable Performance, Simple Operation

A well-designed mechanical structure as well as control algorithms ensure smooth, steady running

6. Quick Changeover, Fast Changeover and Recipe Saving

Allows for recipe storage and rapid specification switching, which allows quick switchovers between different sizes of cartons and products.
