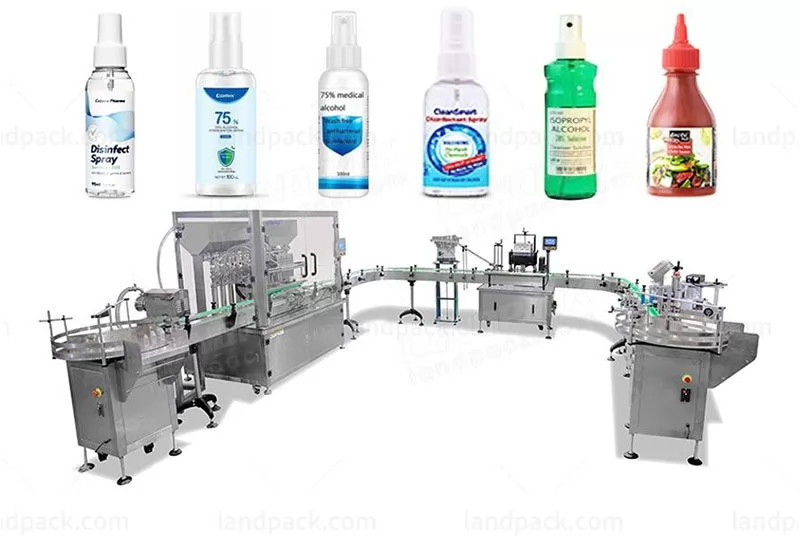

Full Automatic Bottle Filling Capping And Labeling Machine

  • Application
  • Description
  • Parameter
  • Video

Application:Suitable for automatic filling, capping and labeling of various round, flat, square and other special-shaped bottles, cans, boxes and cans.Applying to food, medicine, pesticide, chemical and other industries. such as hand sanitizer, distilled spirits, lubricate oil, edible oil, liquid detergent, shampoo, tomato sauce, salad sauce.

Kindly Reminder:We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.

Packing Exambers:Bottle Filling Capping AndFull Automatic Labeling Machine

1.Stronger PLC software support, may realize the ideal filling operation

2.The touching operation color screen, can display the production state, operation  procedures and filling ways, tableau objective, operation simple and maintenance convenient.

3.This China most popular products simplex filler machine jar filling machines automatic liquid filling machine uses vacuum sucking technology to ensure no leakage of filling head during filling production process.

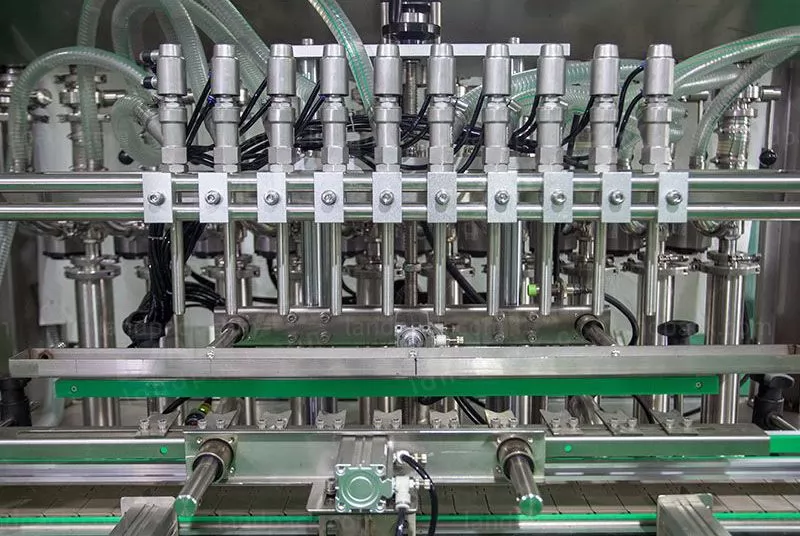

4.Each filling-head is equipped with a bottle-mouth-clamping device, ensuring the injecting material correct aiming at.

5.This machine suits for the filling of different sizes of vessel, may change the filling sizes within a few minutes.

6.Pivotal electrical part use world famous brand such as Mitsubishi, OMRON, SIEMENS.

7.Optional servo filling system.

8.The Automatic Liquid Bottle Filling Capping and Labeling Machine is a new generation of filling machine developed by our company based on foreign advanced technology.

9.It adopts PLC and servo quantitative, integrating electromechanical and pneumatic. The electrical and pneumatic components are selected from world-renowned brands and are controlled by PLC.

10.It adopts PLC and servo quantitative, integrating electromechanical and pneumatic. The electrical and pneumatic components are selected from world-renowned brands and are controlled by PLC.

11.The design is novel, beautiful in appearance, stable and reliable in performance, high filling accuracy, strong adaptability, simple operation, Features such as easy maintenance.

12.Part of the devices can also be used for high-temperature filling at 80-95℃ after special treatment.

ModelLFZ-06LFZ-08LFZ-10LFZ-12
Filling Range50-1000ml (customizable)50-1000ml (customizable)50-1000ml (customizable)50-1000ml (customizable)
Filling Speed<30 bottles/min (customizable)<40 bottles/min (customizable)<50 bottles/min (customizable)<60 bottles/min (customizable)
Measurement Accuracy±1%±1%±1%±1%
Power1KW1.2KW1.2KW1.5KW
Power Supply220V、50Hz220V、50Hz220V、50Hz220V、50Hz
Working Pressure0.6-0.8MPa0.6-0.8MPa0.6-0.8MPa0.6-0.8MPa
Weight400kg450kg500kg550kg

After receiving your inquiry,We will send you the quotation as soon as possible.
