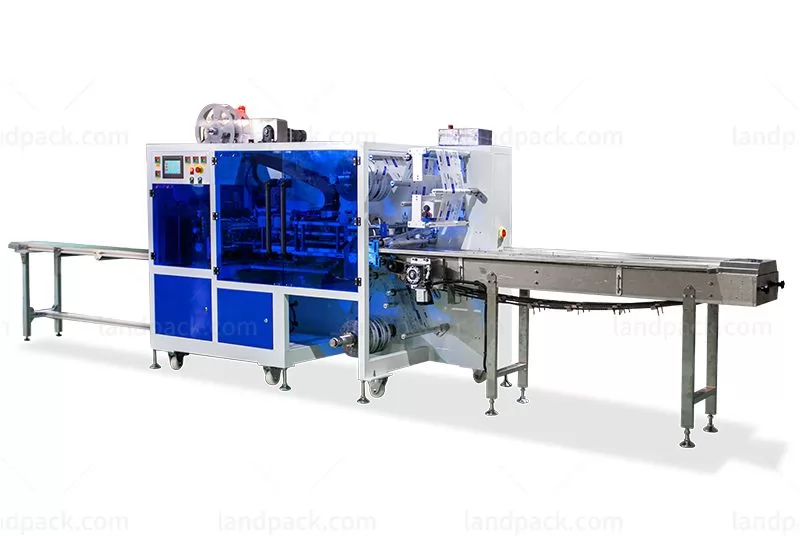

Automatic 4 Side Sealing Pillow Packing Machine

  • Application
  • Description
  • Parameter
  • Video

Application:

Suitable for pillow packing of conventional items such as hardware accessories parts, soap, bread, pancake, biscuit, cake, rusk, bun, etc.

Kindly Reminder:
We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.

Packing Exambers:horizontal flow wrap machine.jpg

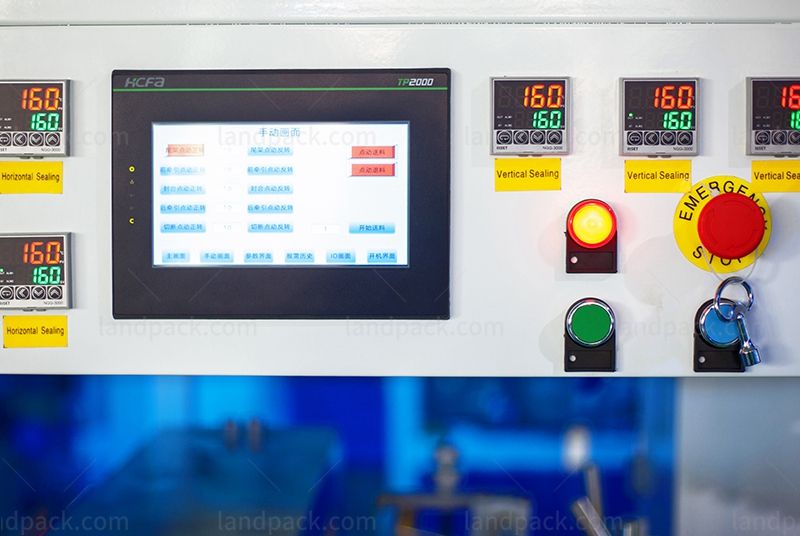

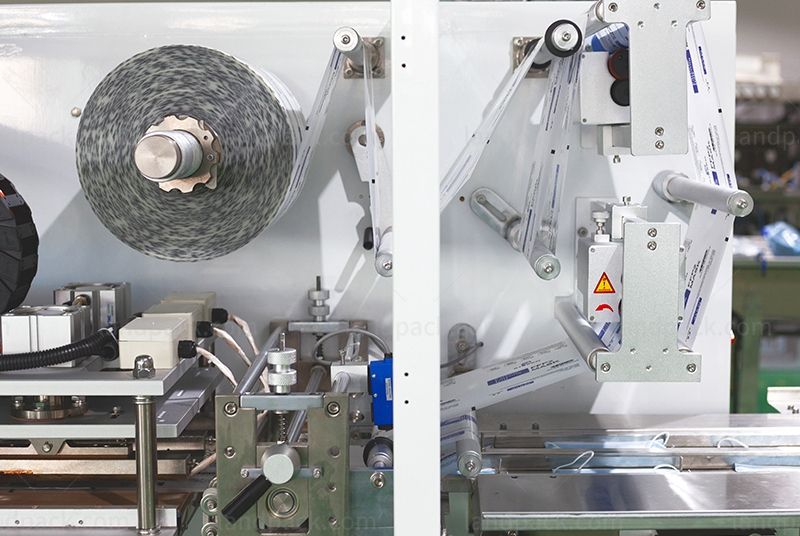

The color touch screen operation interface is simple to operate; the scientific 4-axis servo drive system is adopted; the PLC programmable controller intelligently controls the operation of the whole machine, which has the advantages of precise film feeding, stable material transfer, and precise bag cutting.

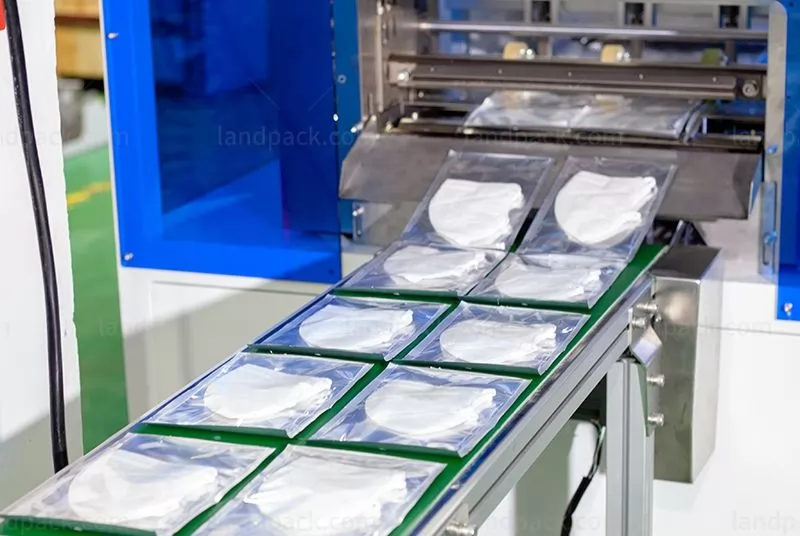

Innovative design: independent guide pillar mold base, mobile synchronous heat sealing system, the temperature of the sealing surface is more uniform and stable, the sealing edge is tight, and it is durable! Packaging materials of different thicknesses and materials are more adaptable.

Medical bag type: Four-side sealing bag, easy to tear opening at the end; paper + transparent film bag

Versatility: This machine is also suitable for use in packaging bags of one type of packaging material. The machine can seal bag base on the products length changing automatically.

Model
LPF-400
Film width
Max.380mm
Bag length
Max.360mm
Bag width
Max.190mm
Product packaging thickness1-10mm
Machine noise
Under 80db(A)
Packing material
ET+OPP, BOPP, CPP, PET+AL, and other one layer or double layer heated complex film.
Packing speed
80-100 bags/min
Machine sizeL5000*W1200*H1520mm
Machine Gross WeightAbout 1600kg
Power voltageAC220V 50HZ
Transmission Power4.2kw
Heating Power3.2kw
Air Pressure0.5-0.7Mpa
Application
Suitable for pillow packing of conventional items such as hardware accessories parts, soap, bread, pancake, biscuit, cake, rusk, bun, etc.
