Application:

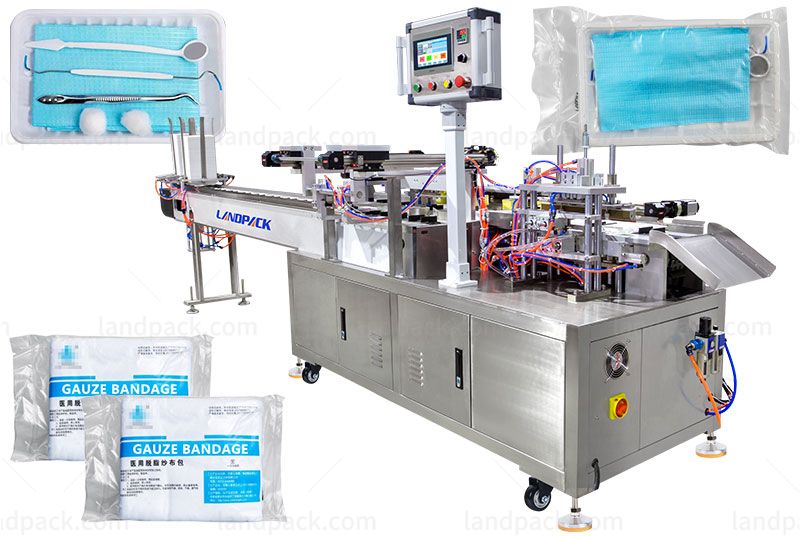

Automatic flow wrapping pillow bag packing machine suitable for dental trays, cleaning sponges, small sachets, soap, KN95 masks, disposable flat masks, facial masks, wet tissues, napkins, and other dairy products.
Kindly Reminder:
We have an experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.
Packing Exambers:
1. By replacing manual bagging and vacuum sealing, this system significantly boosts overall output.
2. Automation reduces the need for manual labor.
3. Vacuum sealing ensures that supplies remain uncontaminated, crucial for sensitive items.
4. This hybrid approach combines automation with precise manual handling.
5. By using an automated system, you can reduce the overall floor area needed in the packaging workshop.
Work Flow:

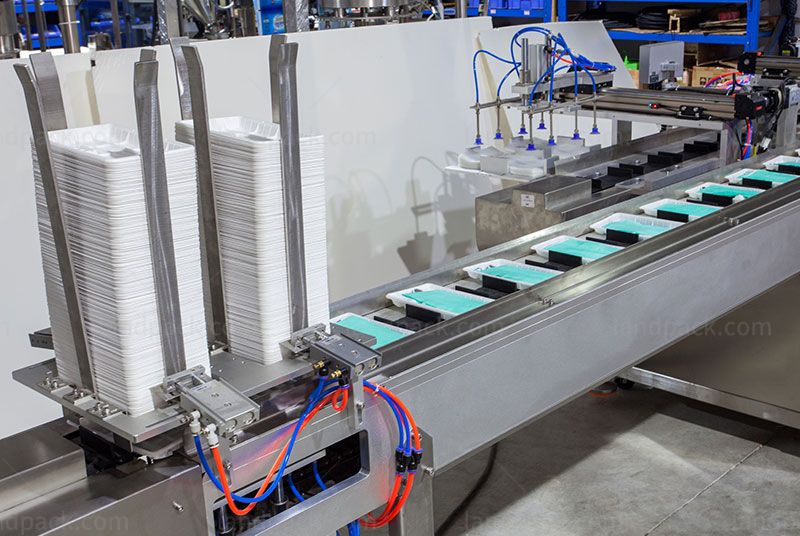

1. Auto Feeding Trays.
2. Put the material by manual.
3. Auto Feeding Bags.
4. Printing date and code.

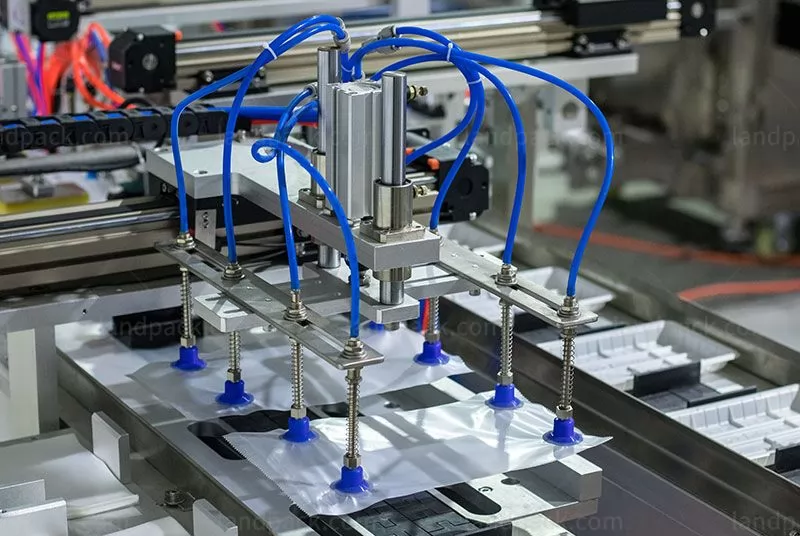

5. Opening Bags.

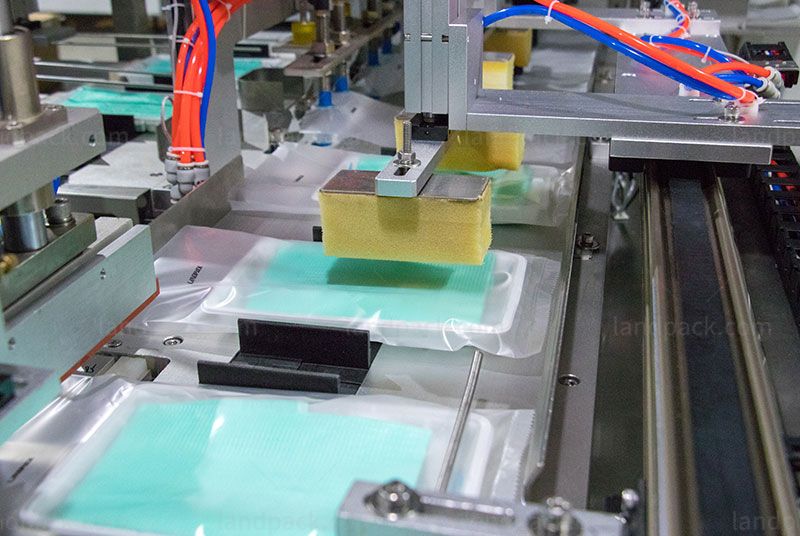

6. Push trays into the bag automatically.
7. Sealing and Vacuum bags.
8. Output.
Model | LD-TD01 |
Packing material | 3-side, four edge-sealing bag, self-reliance bag, handbag, spout bags, zipper bag, compound bag, etc |
size | W: 100-210 mm |
Filling range | 10-1000g |
Packing speed | 10-45 bags/min（speed is determined by the product filling quantity） |
Average precision | ≤ ±1% |
Total power | 2.5KW |
Weight | 900 KG |
Main standard parts | 1. Code printer 2. PLC control system 3. Bag opening device 4. Vibration device 5. Cylinder 6. Electromagnetic valve 7. Temperature controller 8. Vacuum pump 9. Inverter 10. Output system |
After receiving your inquiry,We will send you the quotation as soon as possible.
