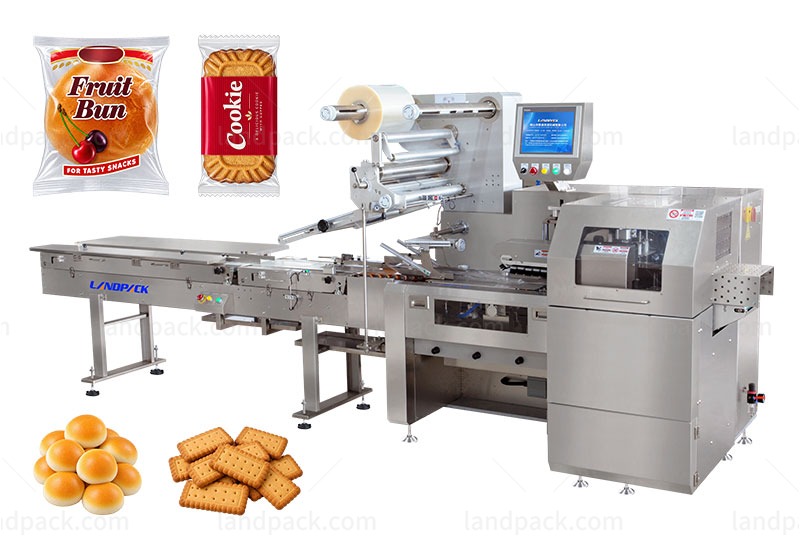

Automatic Flow Wrap Machine Bread Bakery Biscuit Packaging Machine

Application:
It can be used in bakery, confectionery, snack food and prepared food production lines where automatic conveyor feeding, film wrapping, sealing and cutting are required. Such as bread loaves, banana bread, fruit buns, hamburger buns, toast bread, muffins, cookies, sandwich biscuits, crackers, wafers, sponge cakes, Swiss rolls, brownies, chocolate bars, cereal bars, energy bars, rice cakes, mooncakes and tray-packed foods.

Package Type:
Suitable for heat-sealable roll film formed into pillow bags with longitudinal sealing and reciprocating end sealing.

Workflow:

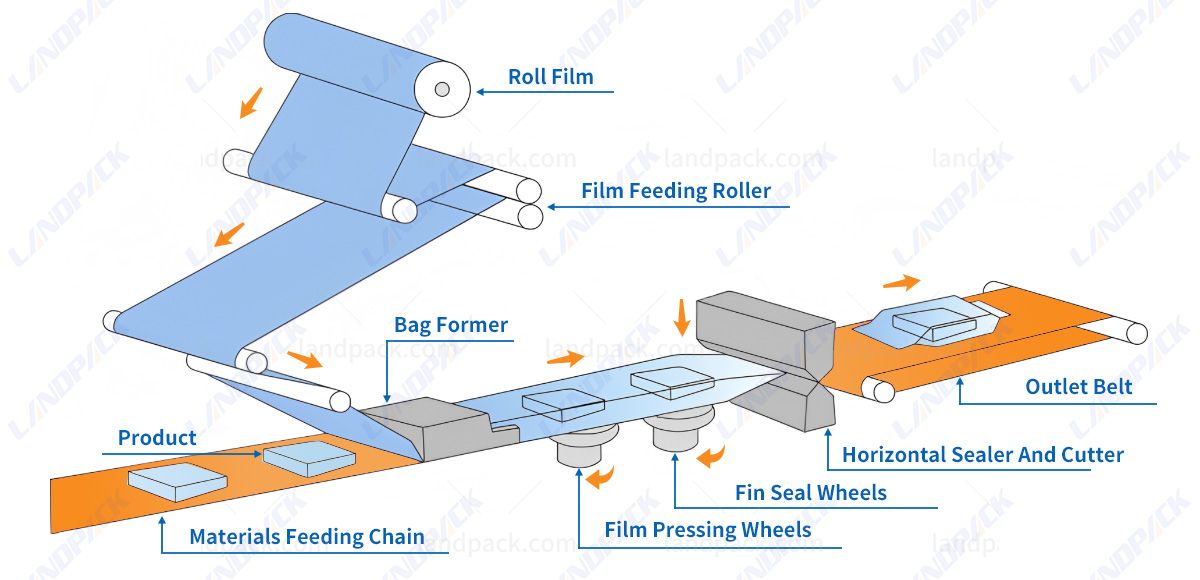

Conveyor Feeding → Photoelectric Product Positioning → Film Feeding & Bag Forming → Product Wrapping → Bag Flattening → Longitudinal Sealing → Reciprocating End Sealing & Cutting → Sponge Air Exhaust → Finished Pack Output

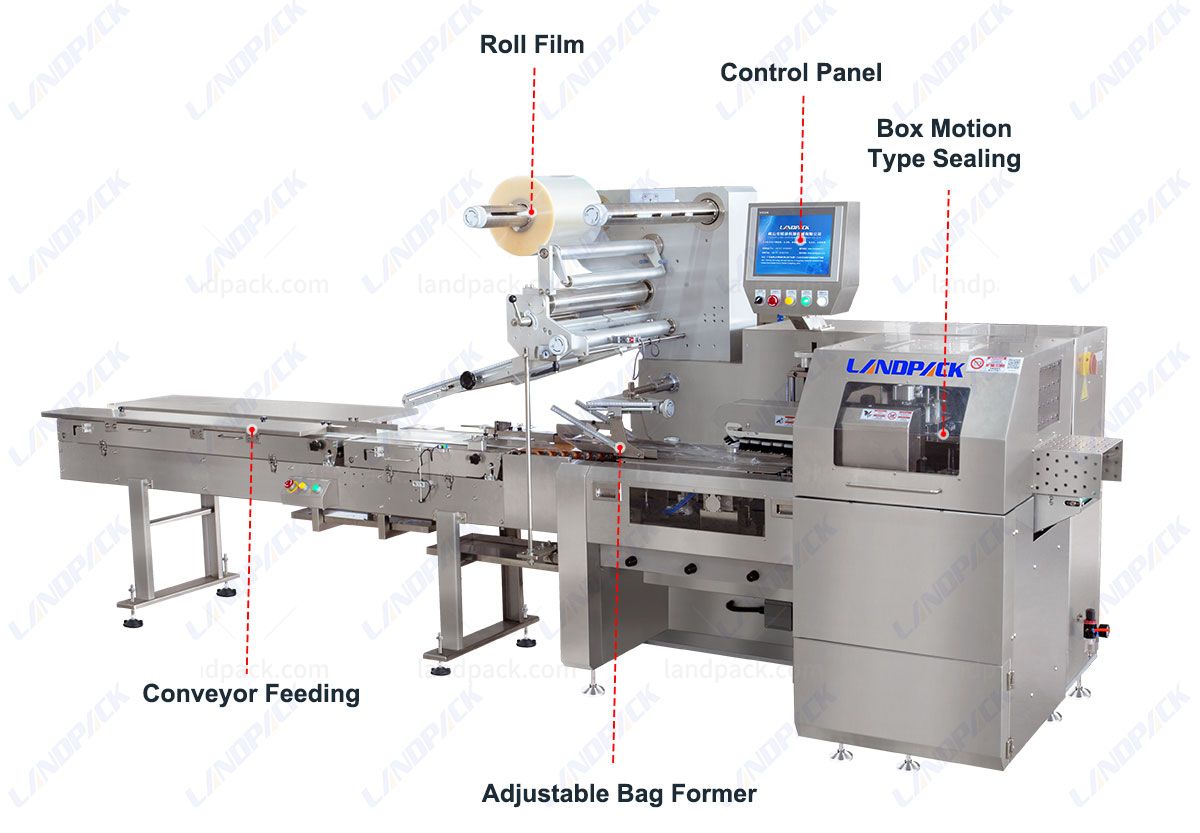

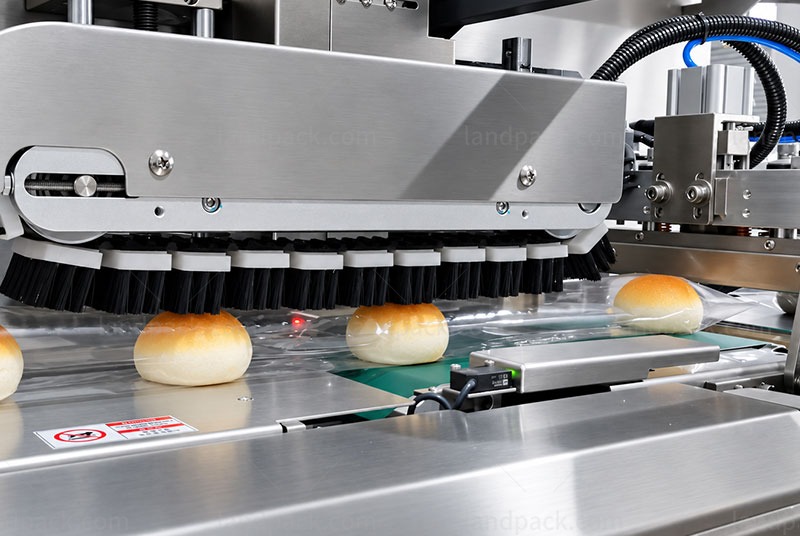

Machine Key Components:

Features:
1. Yaskawa PLC and four-servo control system coordinate film feeding, product conveying and sealing operations through a 10.4-inch color touch screen.
2. Automatic film splicing design allows the packaging film to be connected with less interruption to continuous production.
3. No-film stop, no-product standby, product-jam stop and abnormal-temperature stop functions help reduce empty packs and packaging faults.
4. Misalignment detection allows the cutter to skip an incorrectly positioned product to reduce accidental cutting without stopping the machine.

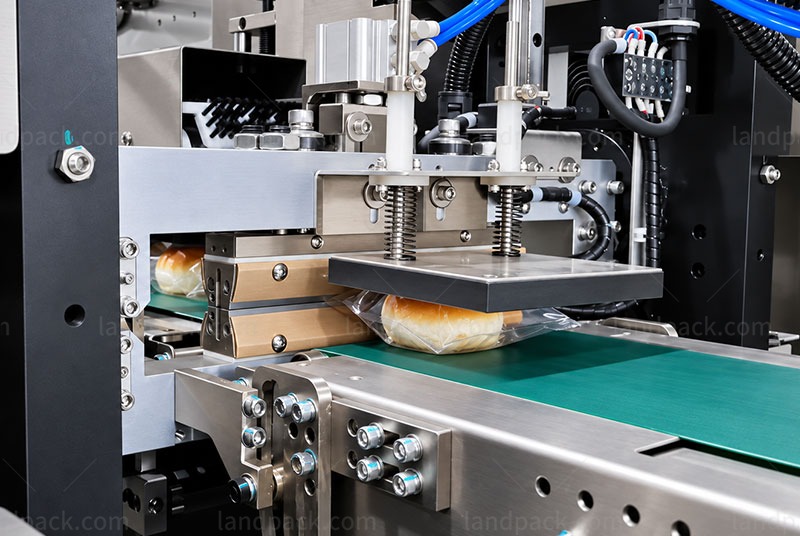

5. Reciprocating cutter supports customized zigzag cutting or flat cutting with an easy-tear notch according to package requirements.
6. Servo-controlled film pulling, preheating and longitudinal sealing work together to support smooth film feeding and consistent bag forming.

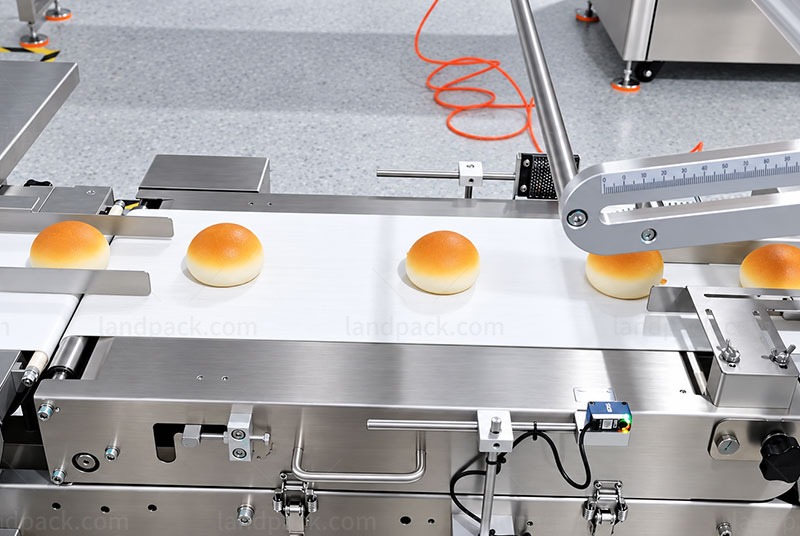

7. Food-grade conveyor belts feature a quick-release design for cleaning and can handle products of different lengths or connect with upstream production lines.
