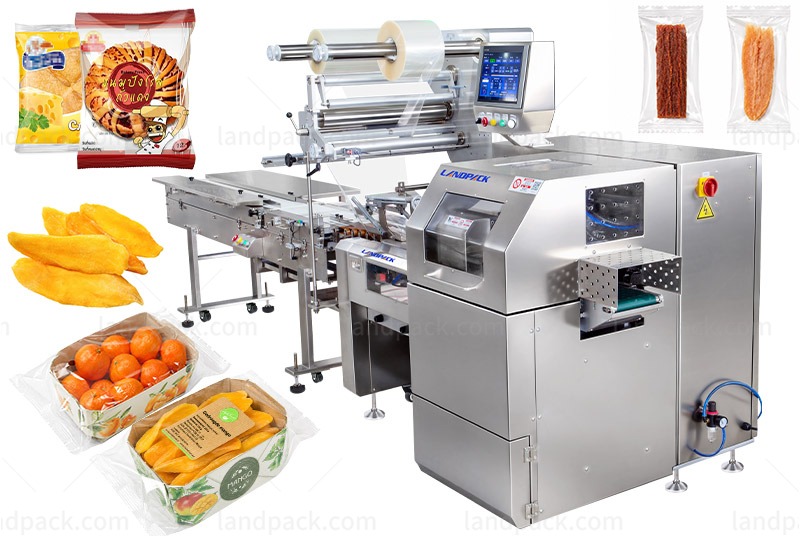

Automatic Flow Wrap Machine | Reciprocating Horizontal Flow Packing Machine

Application:
It uses Yaskawa four-servo control, four-zone PID temperature control, and a 10-inch touchscreen with recipe memory for fast product changeover. The thickened frame and safety protection design support stable continuous operation.
Such as mangoes, bread loaves, soap bars, biscuit trays, chocolate bars, mandarins, sandwiches, gummy candy trays, cakes, cleaning sponges, sausages, dried mango, wafer bars, frozen dumpling trays, cereal bars, fruit trays, rubber parts, tissue packs, cheese blocks, hardware kits and stationery sets.

Package Type:
Suitable for pillow packs and tray-supported flow packs made from OPP/CPP, PET/PE, LDPE and other compatible heat-sealable roll films.

Workflow:

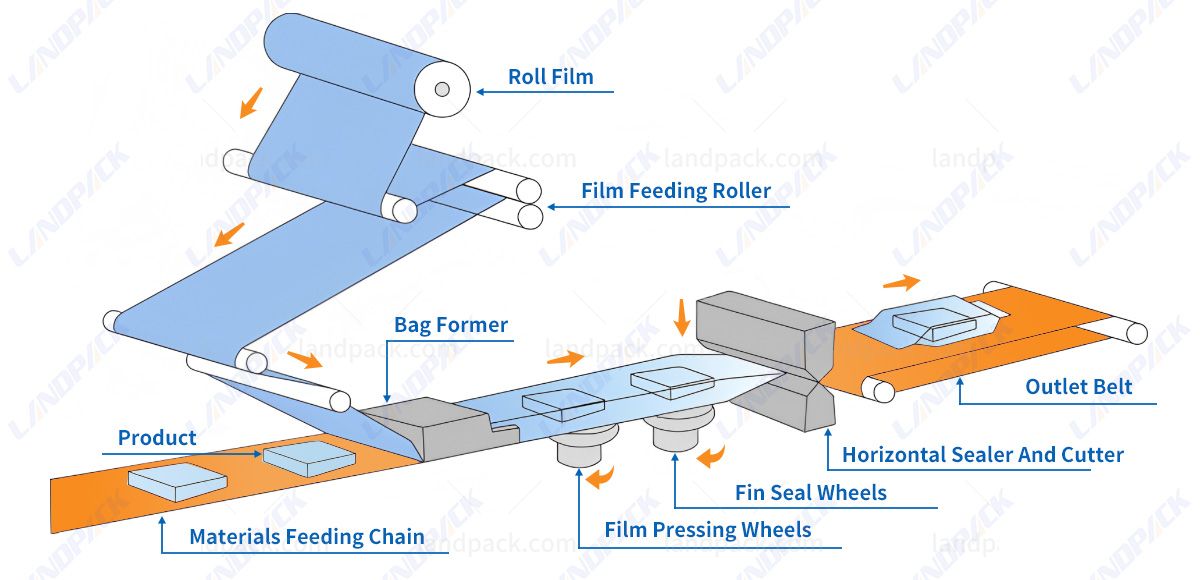

Belt Product Feeding → Film Feeding → Product Entering Bag Former → Film Forming & Wrapping → Preheating & Longitudinal Sealing → Reciprocating End Sealing → Cutting → Finished Pack Output

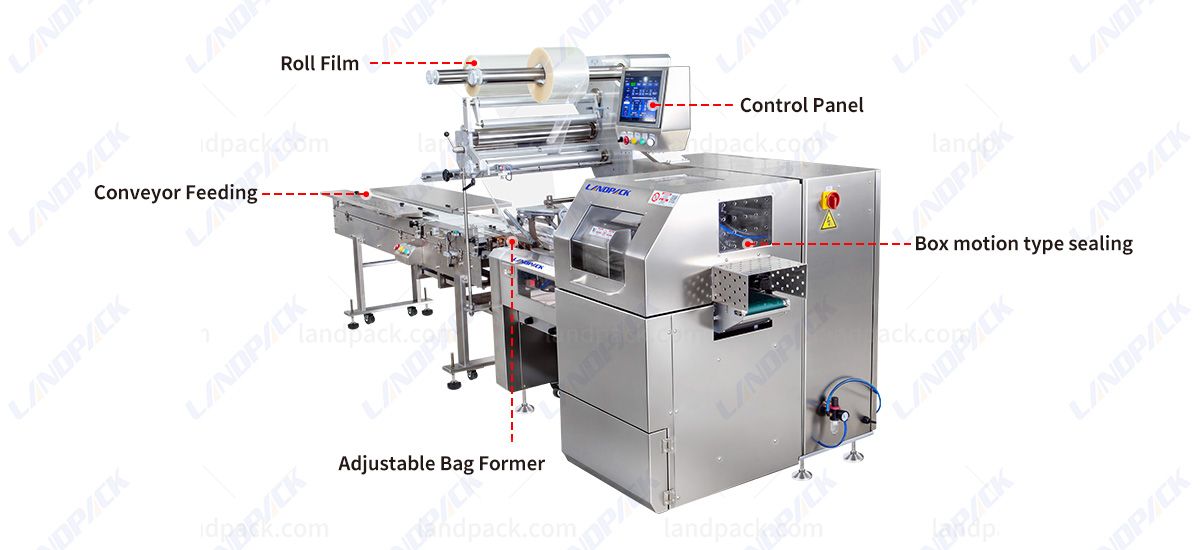

Machine Key Components:

Features:
1. Pure mechanical cam-driven box-motion sealing provides stable reciprocating movement and uniform sealing pressure during high-speed operation.
2. Yaskawa four-servo bus control coordinates product feeding, film feeding and sealing movements with positioning accuracy up to ±0.1 mm.
3. Packaging speed ranges from approximately 35 to 120 bags per minute depending on bag length, film material and product dimensions.
4. The 10-inch touchscreen provides graphical operation, parameter adjustment, recipe storage and quick recall for different products.
5. High-response color mark photoelectric tracking automatically corrects film positioning for accurately registered printed film.
6. Four independent PID temperature control zones maintain sealing temperature accuracy within approximately ±1°C.

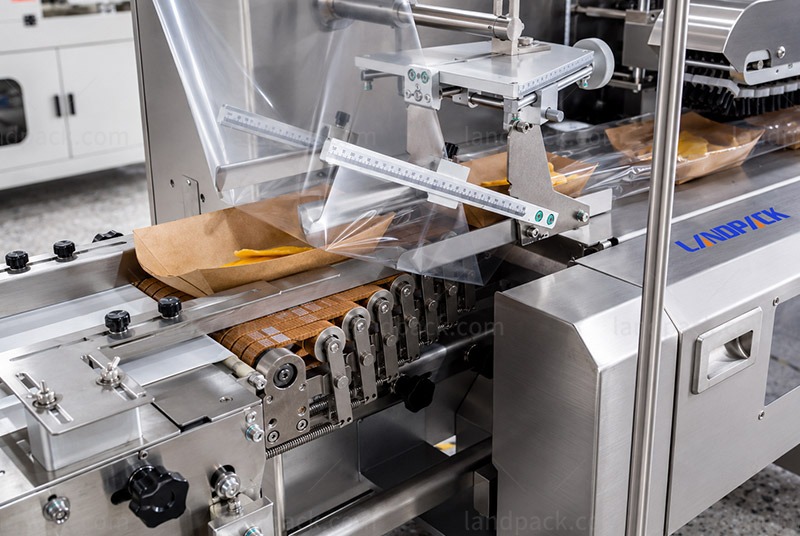

7. The modular adjustable bag former uses a quick-release structure to simplify product size changeover without complicated tools.
8. Adjustment positions are equipped with scale markings to make repeated machine settings faster and easier to reproduce.
9. Anti-product-cut and empty-pack skip functions reduce damaged products and unnecessary empty packages during production.
10. Mechanical swing-arm film tension control helps maintain stable film feeding and reduces film fluctuation during continuous operation.
11. The machine uses an 18 mm thickened steel frame and cast aluminum base to improve structural rigidity during continuous production.
12. A streamlined 304 stainless steel exterior provides a clean machine surface and easier access for routine cleaning and maintenance.
13. Safety doors with proximity switches, cutter guards, fin-seal wheel guards and an independent dust-resistant electrical cabinet improve operator protection.
14. The machine supports OPP/CPP, PET/PE and LDPE films with film widths from 120 to 500 mm and roll diameters up to 350 mm.
15. Optional configurations include an automatic film splicing device, 4-line or 6-line folding device and independently controlled servo modules.
