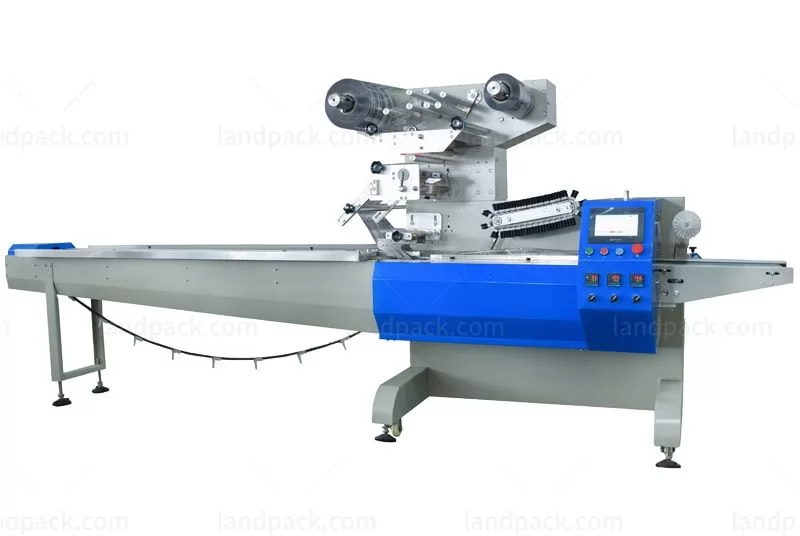

HFFS high speed servo packing machine

  • Application
  • Description
  • Parameter
  • Video

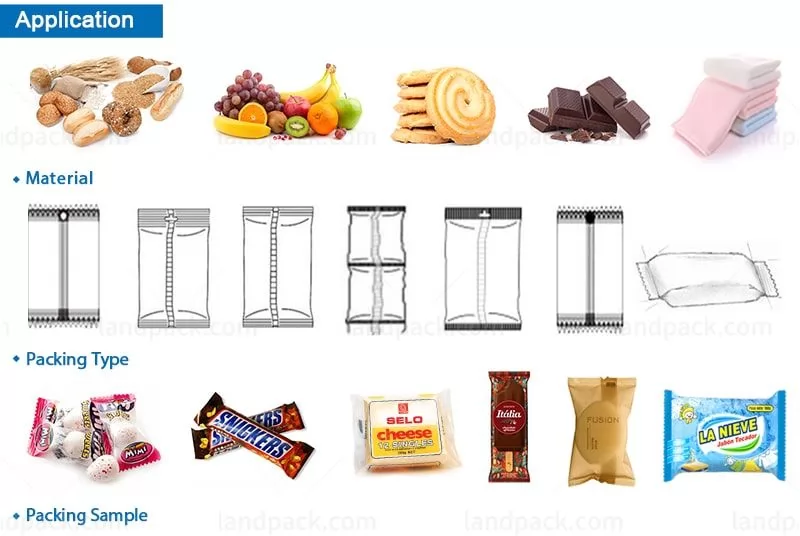

Application:
Suitable for packing food products that need high speed and high efficiency. The food products like cup cake, chocolate, confectionery, wafer, etc.

Kindly Reminder:
We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.

Packing Exambers:    HFFS high speed servo packing machine

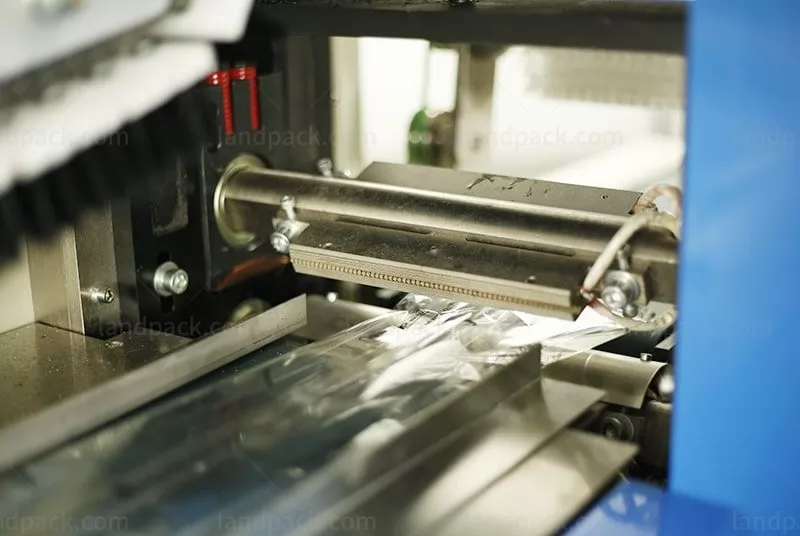

Cross seal and middle seal are controlled by independent Panasonic servo motor. With simple mechanical structure, stable operation, and low noise.

High speed, high accuracy, the maximum speed can be up to 350 bags / min.

Human machine interface,convenient and smart parameter settings.

Automatic fault diagnosis function,fault displayed clearly.

Color tracking, digital input seal cutting position, make the seal cutting position more accuracy.

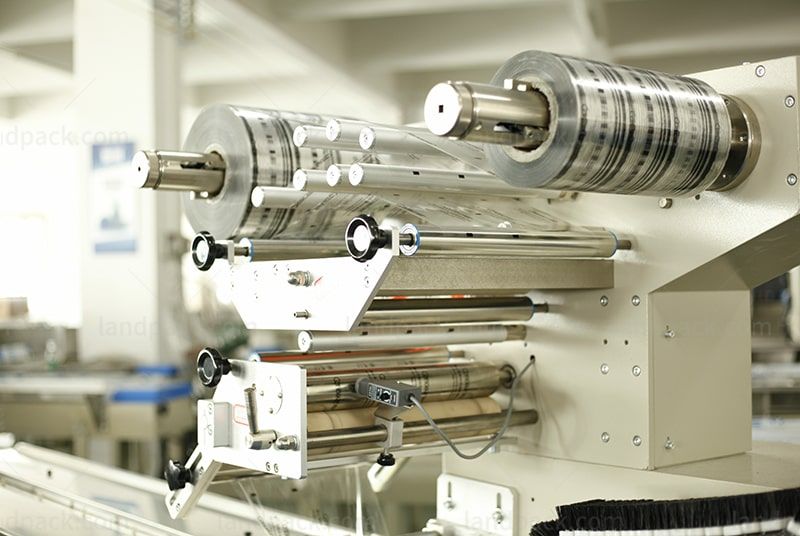

Double supporting paper structure, automatic film connecting device, simple film changing , quick and accuracy.

All controls can be implemented by software system, facilitate functional tuning and technical upgrading, and never fall behind.

 Model LP-IV350 LP-IV350S
 Film Width Max.350MM Max.350MM
 Bag Length 120-320MM / 65-190MM 80-999MM
 Bag Width 30-160mm 30-160mm
 Products High Max.45mm or 65mm Max.45mm or 65mm
 Film roll diameter Max.320MM Max.320MM
 Packing Speed 50-350bag/min 50-350bag/min
 Power 220V 50/60HZ 4.5KW 220V 50/60HZ 4.5KW
 Machine Size(mm) (L)4000x(W)1100x(H)1610 (L)4000x(W)1100x(H)1610
 Machine Weight 700kg 700kg
 Remarks Change the film no need to stop machine

After receiving your inquiry,We will send you the quotation as soon as possible.
