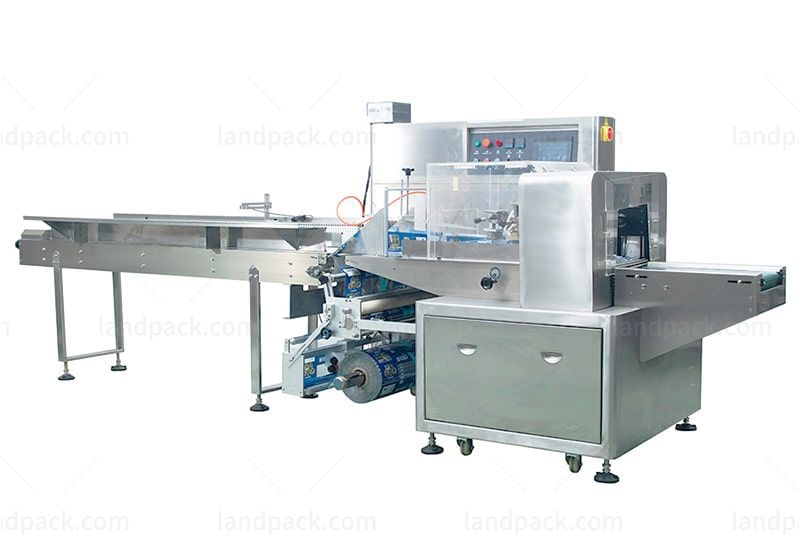

Horizontal flow pack machine LP-450X/ LP-600X/ LP-700X

  • Application
  • Description
  • Parameter
  • Video

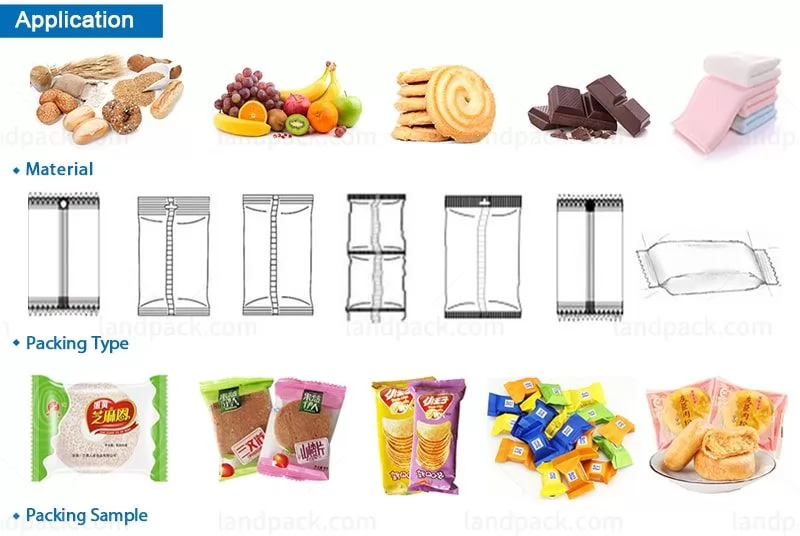

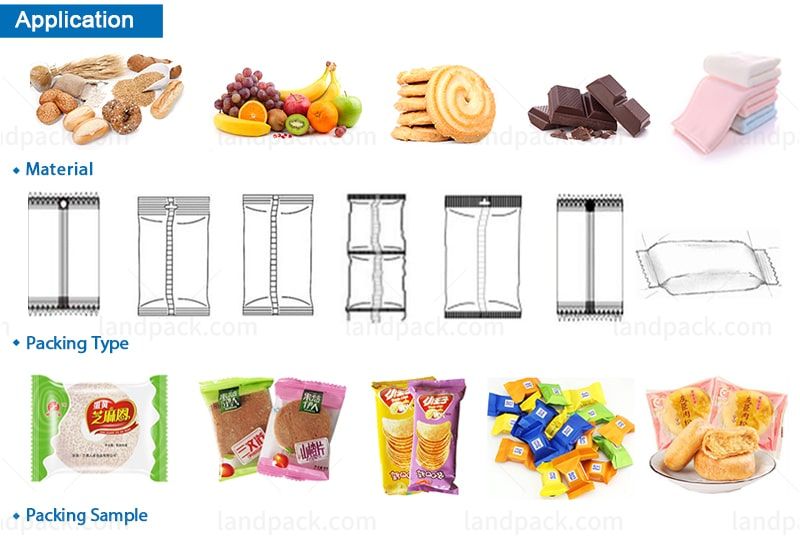

Application:
Suitable for packing soft, sticky or multi pack products such as towel, tissue, noodles, egg rolls, sausages, ice lolly, ice cream bar, soft candy, cutlery, vegetables, etc.

Kindly Reminder:
We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.

Packing Exambers:    Horizontal flow pack machine LP-450X/ LP-600X/ LP-700X

Dual frequency conversion control, bag length can be setted and cutting in one step,saving time and films.

Interface features are easy and quick setting and operating.

Self diagnosis failure function, clear failure display.

High sensitivity photoelectric eye color tracing,numerical input of cutting sealing position for extra accuracy.

Temperature independent PID control, suitable for packing different materials.

Positioned stop function,without sticking knife or wasting film.

Simple driving system,reliable working,convenient maintenance.

All control is realized through software,easy for function adjusting and technical upgrade.

ModelLP-450XLP-600XLP-700X
Film widthMax.450mmMax.600mmMax.700mm
Bag length120-450mm120-500mm120-600mm
Bag width50-180mm100-280mm100-330mm
Product heightMax.80mmMax.110mm
Max width of film rollMax.320mm
Packing speed40-150bags/min20-150bags/min20-130bags/min
Power220V,50/60Hz,2.8KW
Machine size (L*W*H)mm4020*820*14504020*920*14604020*980*1480
Machine weight650kg680kg720kg

After receiving your inquiry,We will send you the quotation as soon as possible.
