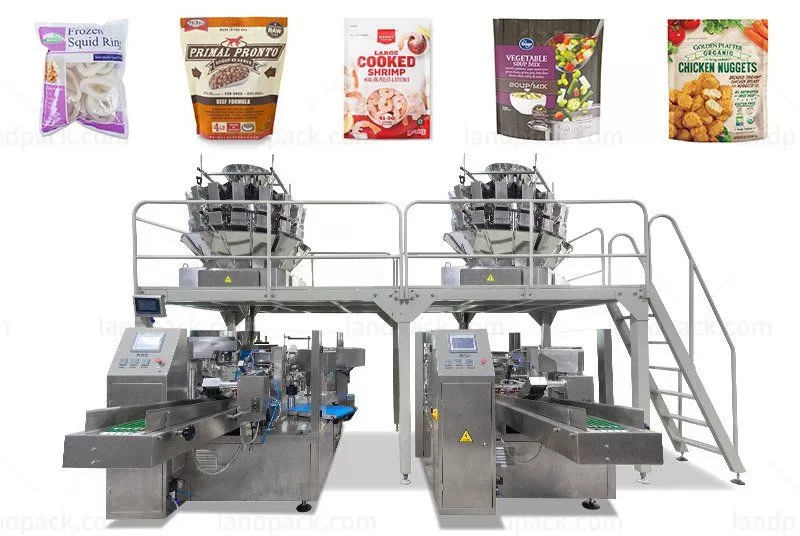

Automatic Frozen Food Doypack Machine LD-8200A-2

  • Application
  • Description
  • Parameter
  • Video


Suitable for automatic packing for grain and solid food, such as frozen food, frozen shrimp, frozen fish, frozen seafood, dog food, cat food, and other granular pet food, beans, nuts, dry fruits, candy, cereal, chocolate, biscuit, peanut, capsule, seeds, chemicals, sugar, etc.

Kindly Reminder:

We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.

Packing Exambers:Automatic Frozen Food Doypack Machine LD-8200A-2

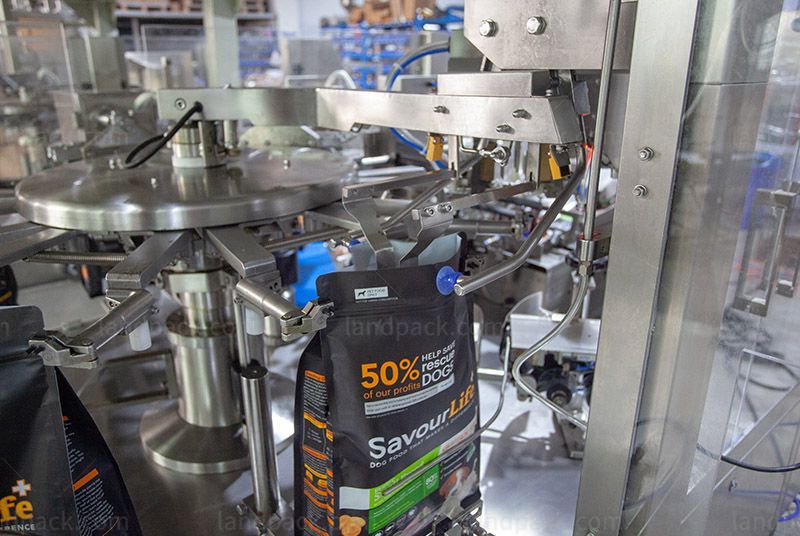

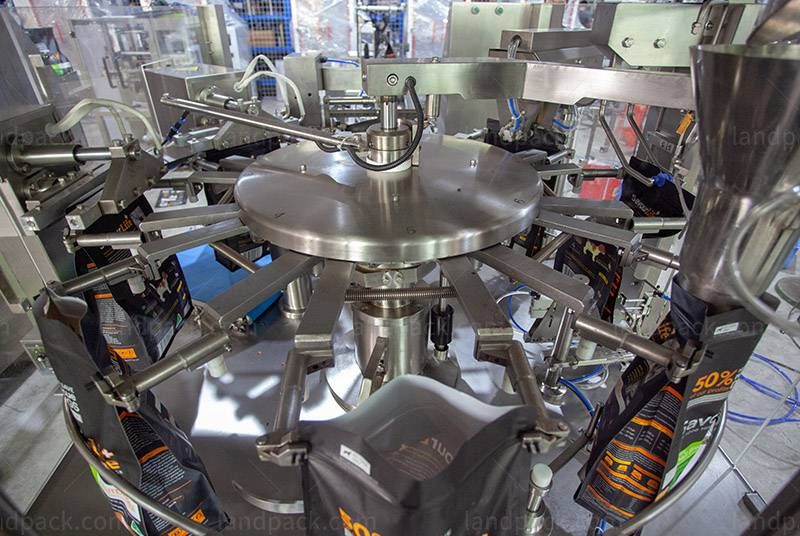

Automatic rotary packing machine adopt precision indexing device and PLC to control each action and working station to make sure the machine operates easily and does accurately.

The speed of this machine is adjusted by frequency conversion with the range, and the actual speed depends on type of products and pouch.

Automatic checking system can check bag situation, filling and sealing situation.

The system shows:

1.no bag feeding, no filling and no sealing.

2.no bag opening/opening error, no filling and no sealing

3.no filling, no sealing..

The product and pouch contact parts are adopted stainless steel and other advanced material to guarantee the hygiene of products.


Model: LD-8200A/ 8240A/ 8300A

Bag Size: W: 100-300mm  L: 100-450mm

Filling Volume: 10-2500g (Depending on type of products)

Capacity: 80-120 bags/min (The speed depends on type of products and packaging material used)

Package Accuracy: Error≤±1%

Compress Air Requirement: ≥0.8m³/min supply by user

Optional configuration:

1. Material weighing & filling machines

2. Platform

3. Check weigher

4. Material elevator

5. Finished product conveyor

6. Metal detector

After receiving your inquiry,We will send you the quotation as soon as possible.
